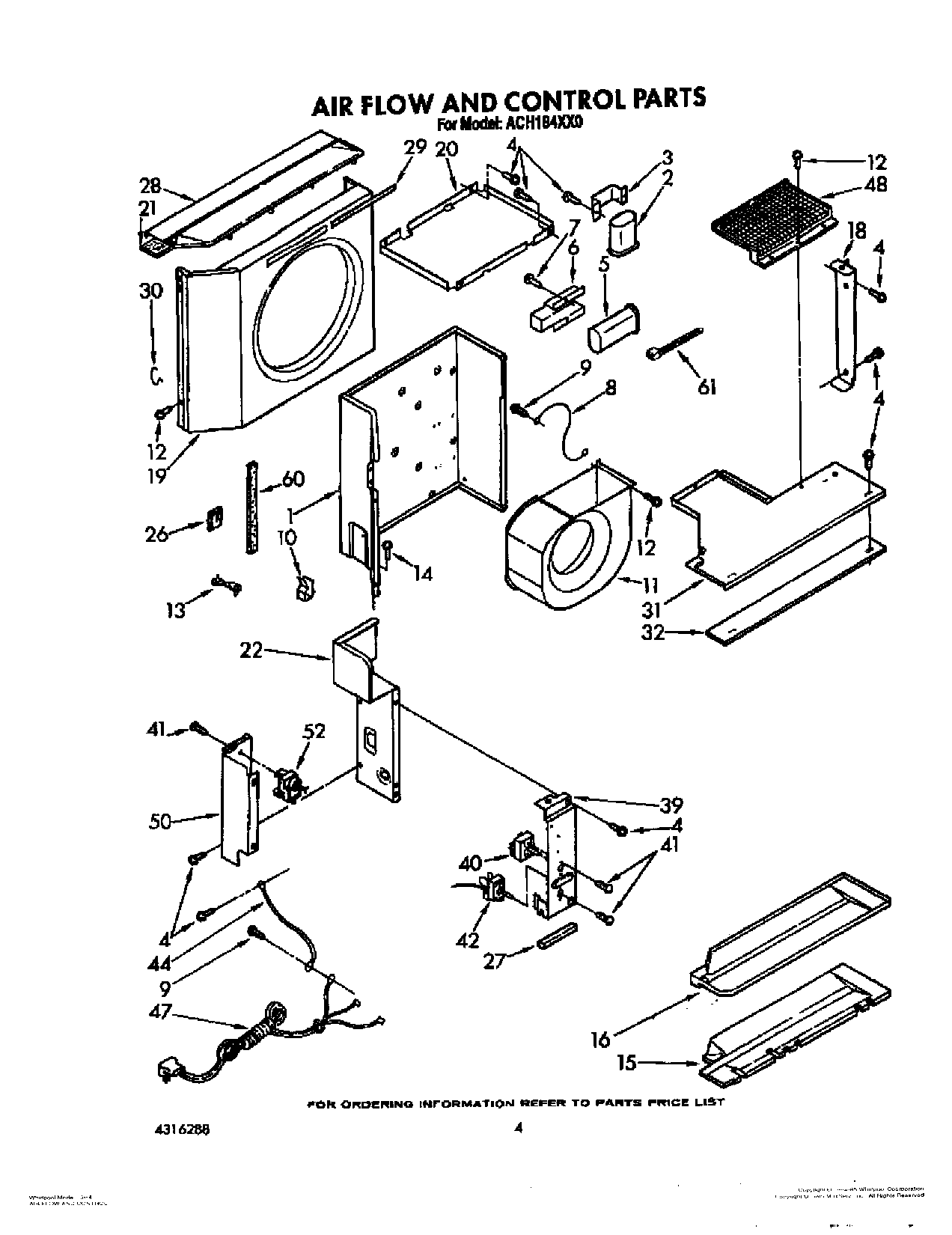

ACH184XX0 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	Wall, Dividing
2	WPL 951516
3	Bracket (Lower)
4	WP489069 Whirlpool Compactor Screw
5	Capacitor, Fan
6	Bracket, Fan Motor Capacitor
8	Wire, Ground (2)
9	WPW10141604 Whirlpool Screw
10	Clamp, Cable
11	Housing, Blower Wheel
12	WP488729 Whirlpool Refrigerator Door Screw
13	Clamp, Cable
14	Screw, 8 x 3/8
15	Insulation, Pan
16	Pan, Condensate
18	Plate, Adapter
19	Shroud, Condenser
20	Support, Unit
21	Seal, Condenser Fin
22	Extension, Dividing
26	Seal, Tube
27	Seal
28	Cover, Condenser Shroud
29	WP854334 Whirlpool Air Conditioner Sealing Strip
29	seal, strip (shroud) (side)
30	Clip, Shroud (2)
31	Cover, Evaporator
32	WPL 948236
37	WP488826 Whirlpool Nut
39	WPL 852219
40	WPL 950526
41	Screw, 6-32 x .175
42	Control, Temperature
44	Wire, Ground
47	WPL 648411
48	Guard, Evaporator Impeller
50	Cover, Controls
52	WPL 950635
60	Seal, Strip
61	WPW10339879 Whirlpool Wire Tie
