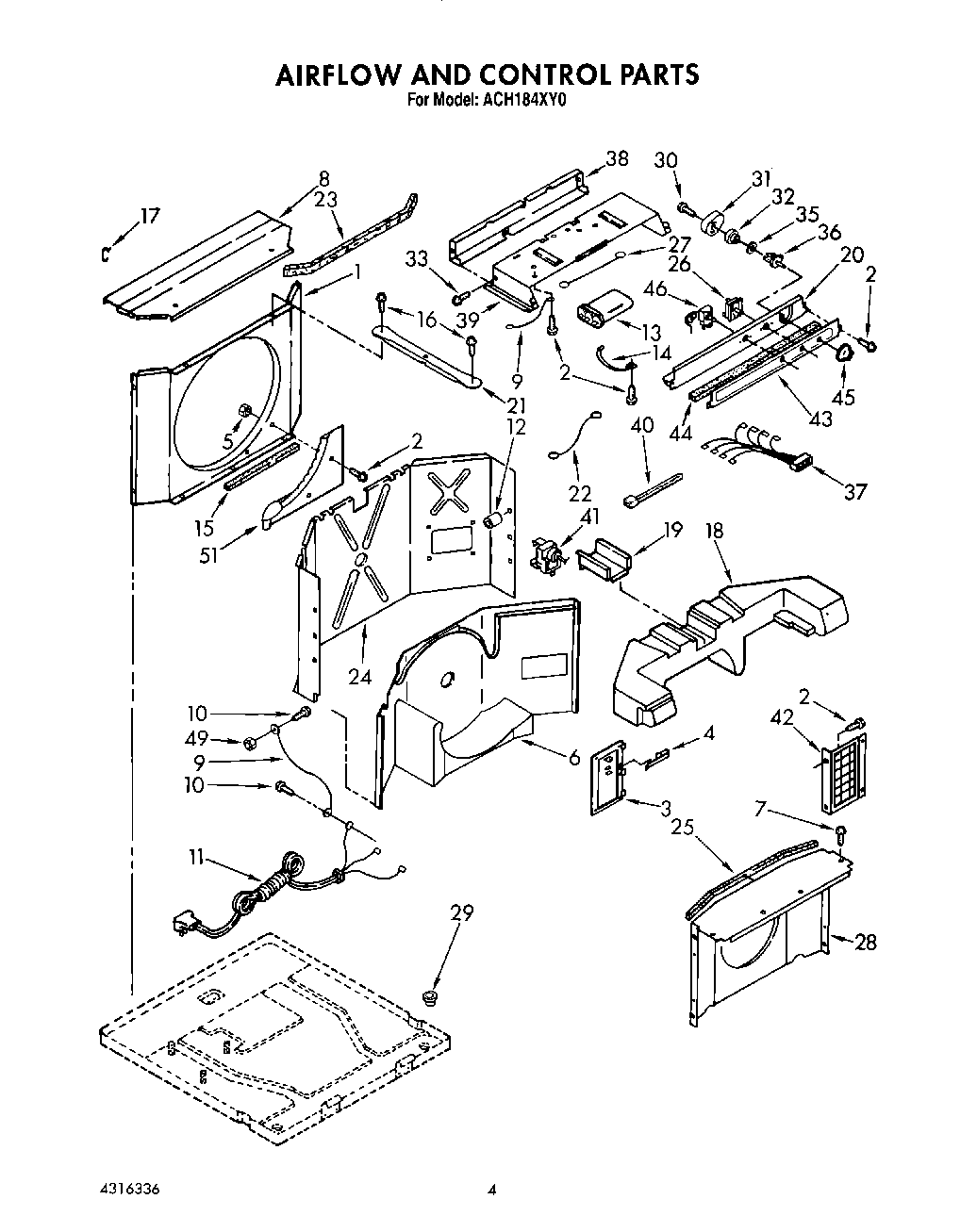

ACH184XY0 03 – AIRFLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
2	WP489069 Whirlpool Compactor Screw
3	Door, Exhaust
4	Spring, Door
5	WP488130 Whirlpool Air Conditioner Nut
6	Scroll (Lower)
8	Top, Condenser
9	Wire, Ground
10	Screw, 8 x 3/8
11	Cord, Appliance
12	Grommet, Divider Wall
13	Capacitor, Running
14	Bracket, Capacitor
15	Seal, Condensate Cup
16	Screw, 8-18 x 3/8
17	Clip, Shroud
18	Scroll, Upper
19	Raceway, Wiring
20	Panel, Control
21	Support, Unit (2)
22	Wire, Control
23	Seal, Shroud
24	Dividing Wall
25	Seal, Evaporator
26	Switch Rotary
27	Wire, Thermostat To Switch
28	Shroud Assembly, Evaporator
29	Cup, Condensate Drain
30	Screw, 7-18 x 5/8
31	Cam, Exhaust
32	Bushing, Shaft
33	Screw, 6-32 x .175
35	Washer
36	Shaft, Control Exhaust
37	Harness, Wiring Control Box
38	Control Box
39	Back Panel, Control Box
40	WPW10339879 Whirlpool Wire Tie
41	WPL 950635
42	Impeller Guard (2)
43	Escutcheon
44	WP854334 Whirlpool Air Conditioner Sealing Strip
45	Knob, Controls (4)
46	Control, Temperature
49	WP486255 Whirlpool Air Conditioner Nut
51	Cup, Condensate
