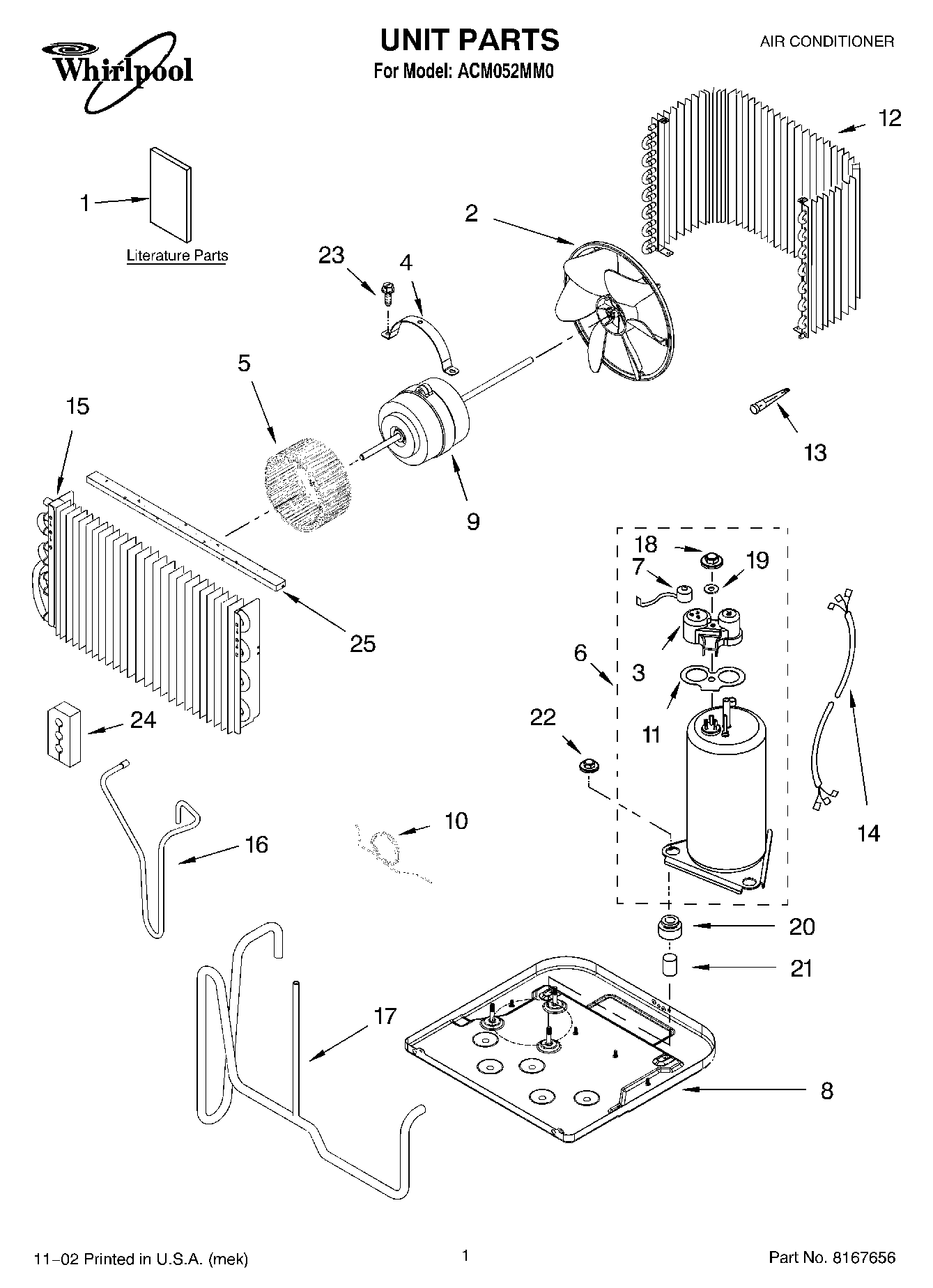

ACM052MM0 01 – UNIT PARTS

Products

Position	Product
1	LITERATURE PARTS (Wiring Diagram Label)
1	LITERATURE PARTS (Guide, Energy)
1	LITERATURE PARTS (Use & Care Guide)
2	Fan Blade, Condenser
3	WP950036 Whirlpool Cover Assembly
4	Clip, Fan Motor
5	Wheel, Blower
6	Compressor
7	Overload
8	Base
9	Motor, Fan
10	Tube, Capillary
11	WP950035 Whirlpool Cover Gasket
12	Condenser
13	WP1162526 Whirlpool Air Conditioner Strainer
14	Harness, Wiring
15	Evaporator
16	Tube, Discharge
17	Tube, Suction
18	WP950027 Whirlpool Mounting Nut
19	Gasket, Nut
20	Grommet
21	Sleeve, Compressor Grommet
22	Locknut
23	Screw
24	Insulator, Tube
25	WP854334 Whirlpool Air Conditioner Sealing Strip
25	REFRIGERANT CHARGE 15.0 oz.
