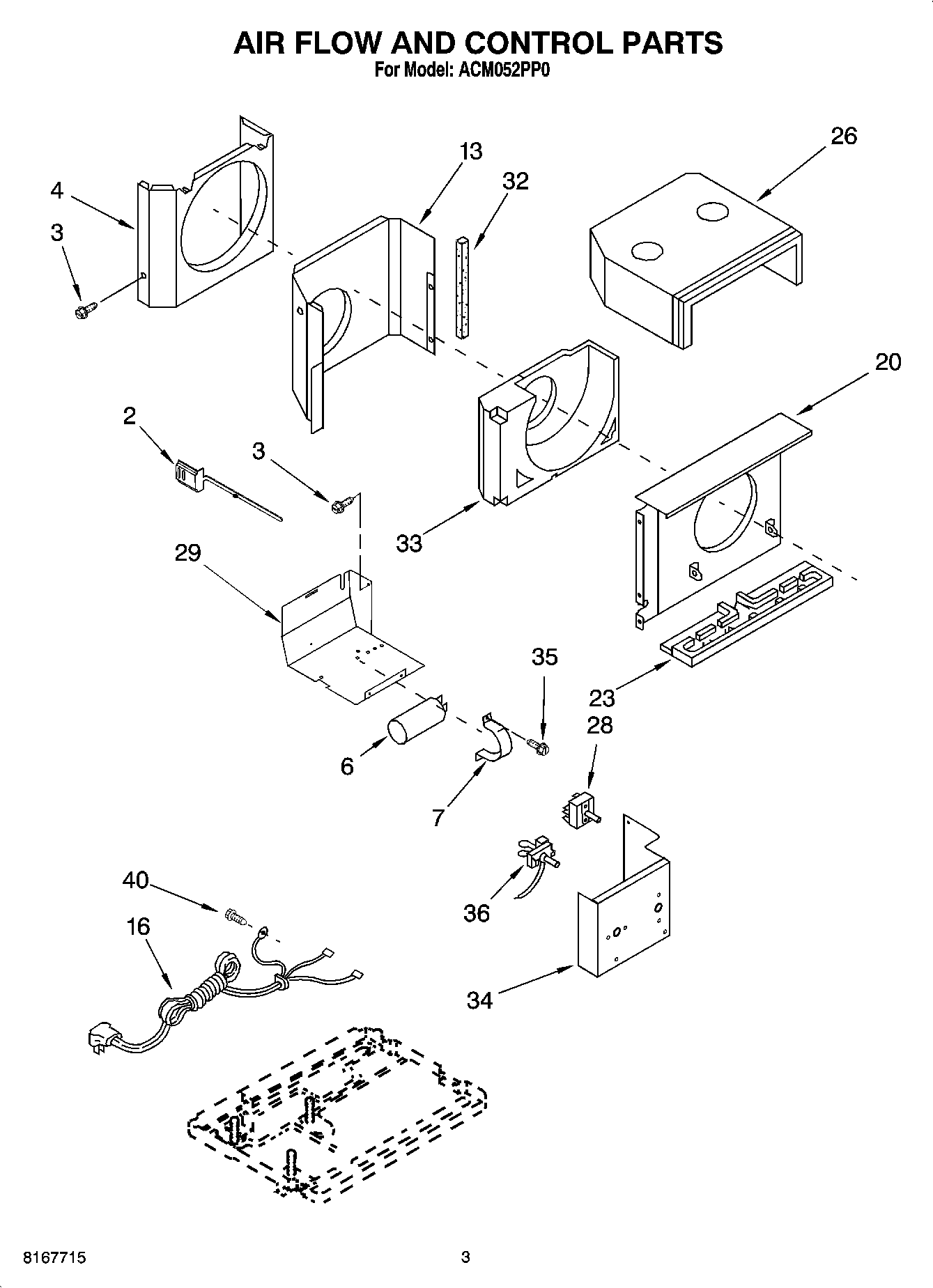

ACM052PP0 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
3	Screw
4	Shroud, Condenser
6	Capacitor, Running
7	Bracket, Capacitor
13	Wall, Dividing
16	Cord, Appliance
20	Shroud, Evaporator
23	Pan, Evaporator
26	Hood, Air Housing
28	Switch, Rotary
29	Panel, Rear- Control Box
32	Seal, Side
33	Housing, Air
34	Panel, Front- Control Box
35	W11245710 Whirlpool Refrigerator Screw
36	Control, Temp.
40	Front, Cabinet Assembly
