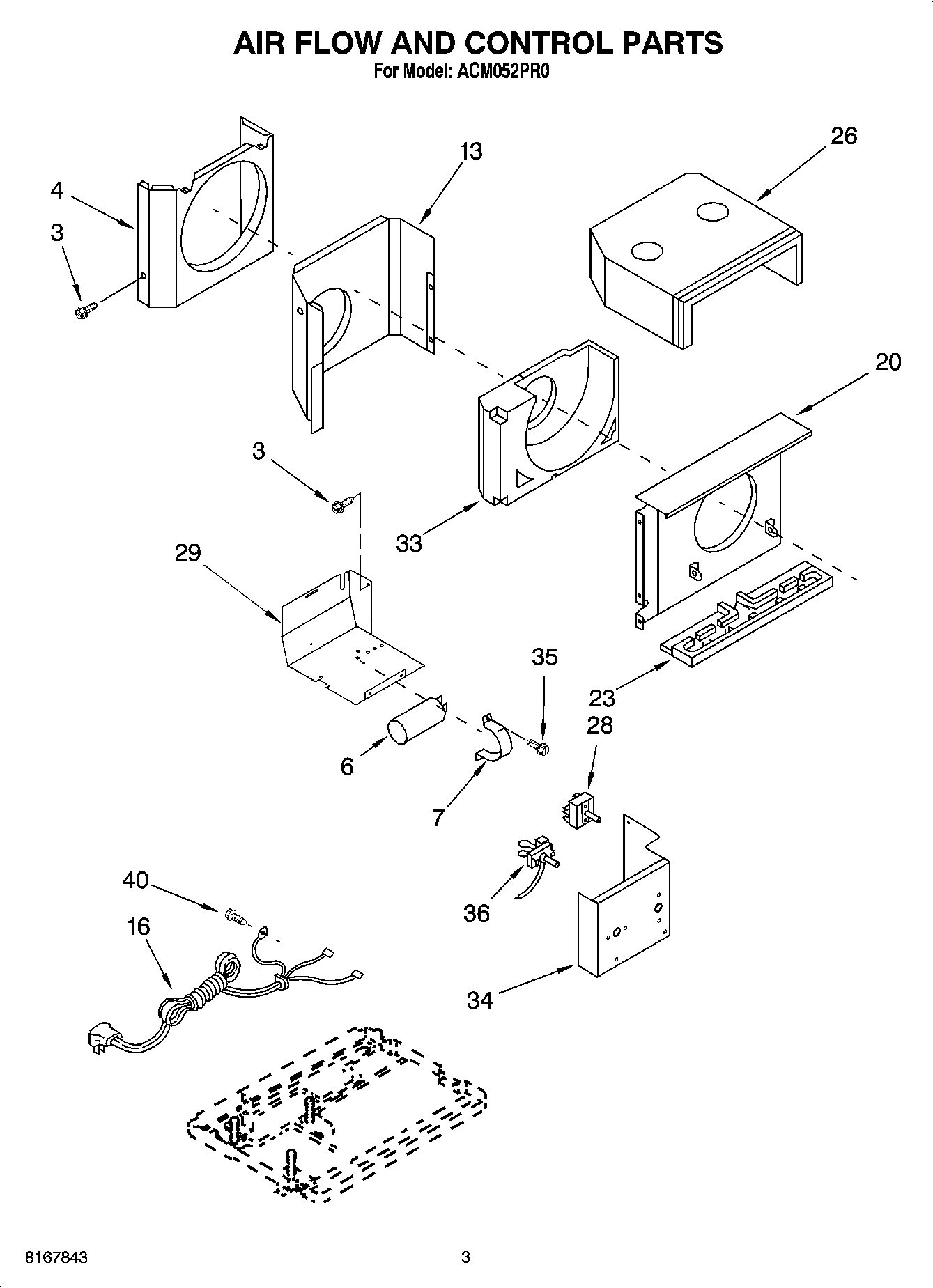

ACM052PR0 02 – AIR FLOW AND CONTROL PARTSadmin2025-04-26T10:52:05+00:00ACM052PR0 02 – AIR FLOW AND CONTROL PARTS
Products
| Position | Product |
|---|
| 3 | Screw |
| 4 | Shroud, Condenser |
| 6 | Capacitor, Running |
| 7 | Bracket, Capacitor |
| 13 | Wall, Dividing |
| 16 | Cord, Appliance |
| 20 | Shroud, Evaporator |
| 23 | Pan, Evaporator |
| 26 | Hood, Air Housing |
| 28 | Switch, Rotary |
| 29 | Panel, Rear- Control Box |
| 33 | Housing, Air |
| 34 | Panel, Front- Control Box |
| 35 | W11245710 Whirlpool Refrigerator Screw |
| 36 | Control, Temp. |
| 40 | Front, Cabinet Assembly |
