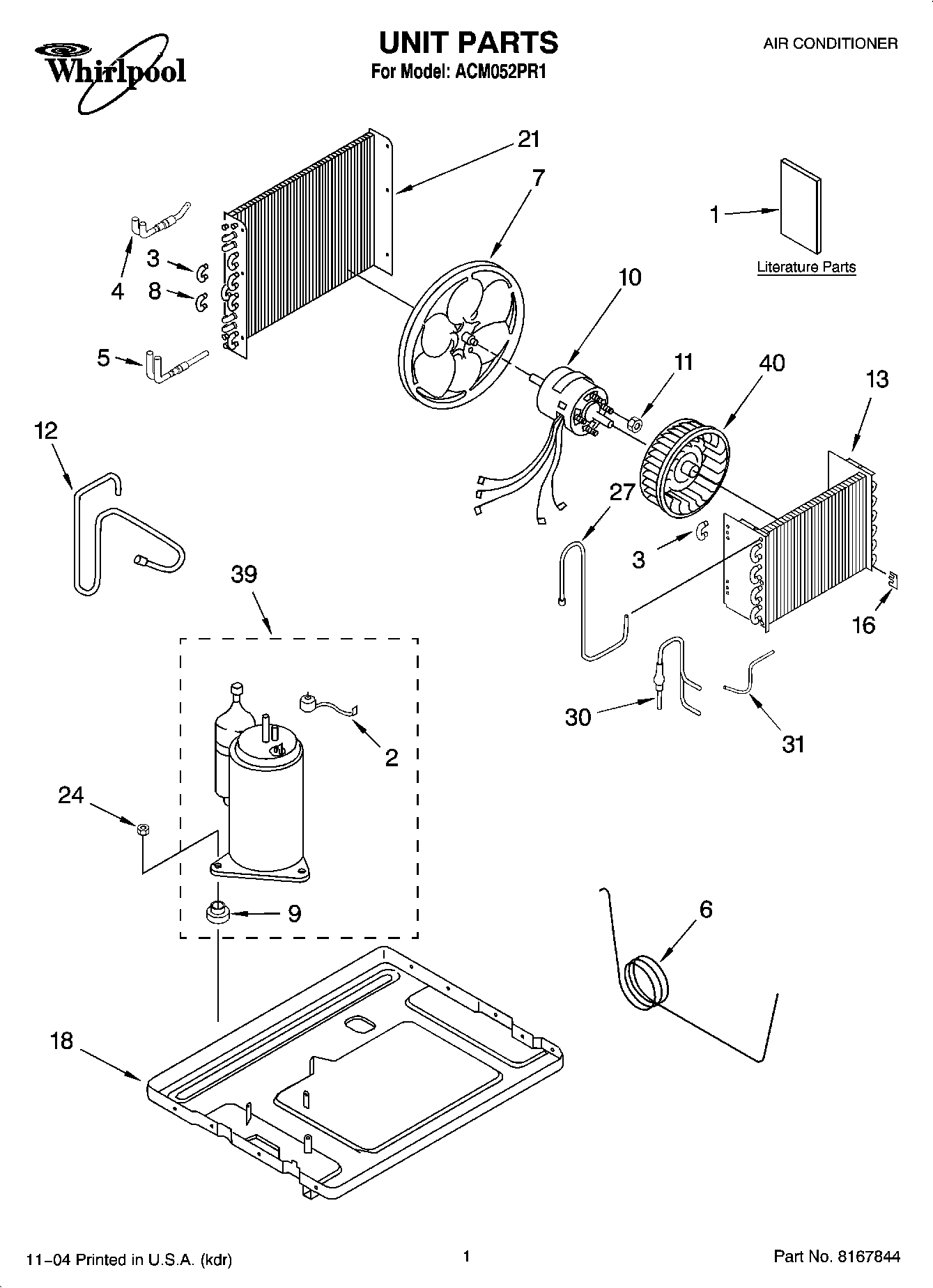

ACM052PR1 01 – UNIT PARTS

Products

Position	Product
1	Energy Guide
1	Use & care Guide
1	Wiring Diagram
2	Energy Guide
3	Bend, Return
4	Tube, Inlet
5	Tube, Outlet
6	Tube, Restrictor
7	Blade, Fan
8	Bend, Return
9	Grommet (3)
10	Motor, Fan
11	Nut, Hex
12	Tube, Discharge
13	Evaporator
16	Support, Tube Sensor
18	Base
21	Condenser
24	Nut, Hex
27	Tube, Suction
30	Manifold
31	Tube, Inlet
39	Compressor Assembly
40	REFRIGERANT CHARGE 14.11 oz.
40	Wheel, Blower
