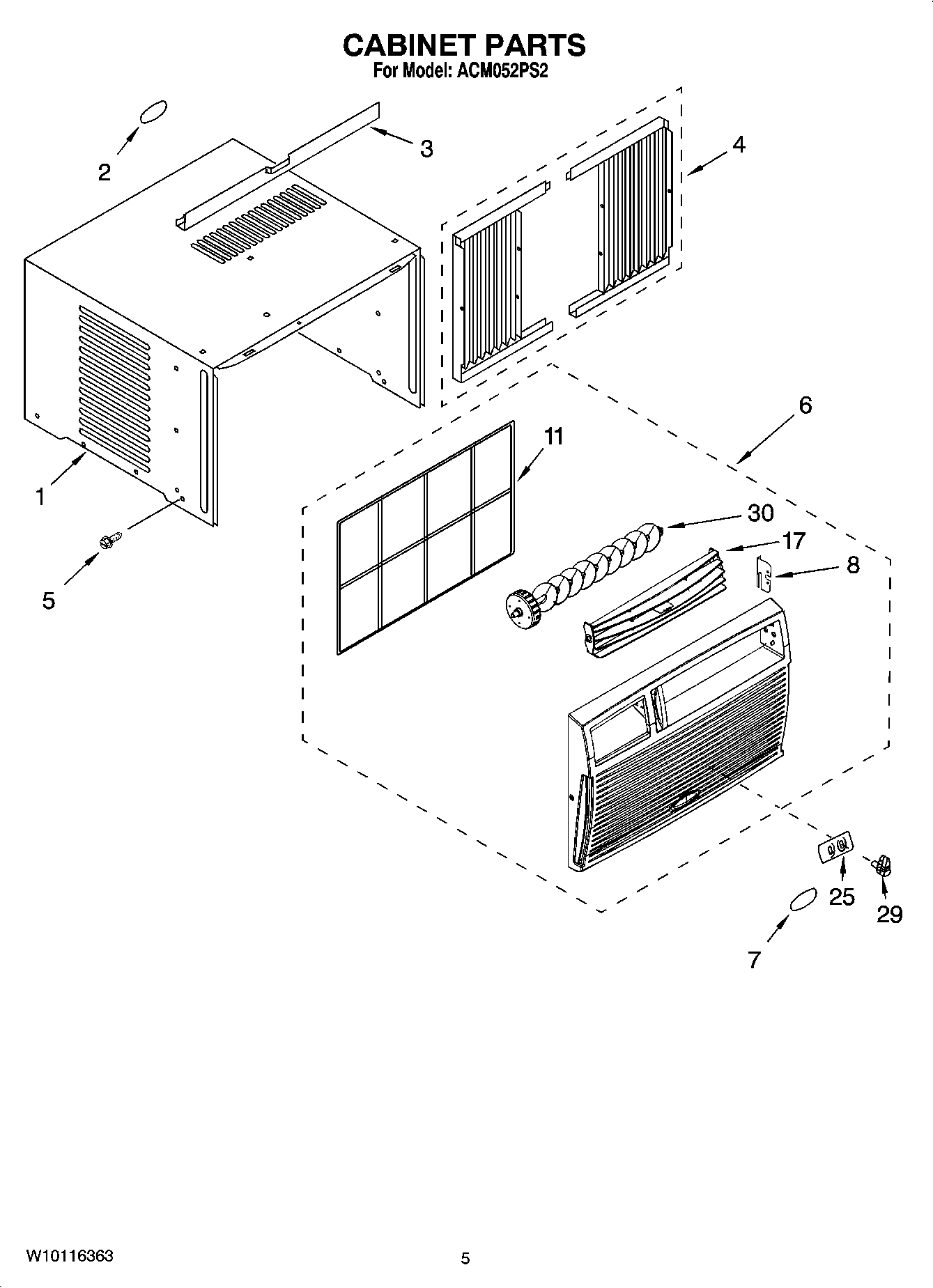

ACM052PS2 03 – CABINET PARTS
Products
| Position | Product |
|---|---|
| 1 | Cabinet |
| 2 | Nameplate, Rear |
| 3 | Channel, Top |
| 4 | Curtain Assy (Includes 3) |
| 5 | Screw (8) |
| 6 | Front, Cabinet |
| 7 | Nameplate |
| 8 | Support, Louver |
| 11 | Filter |
| 17 | Louver, Assembly |
| 25 | Escutcheon |
| 29 | Knob |
| 30 | Louver, Vertical |
