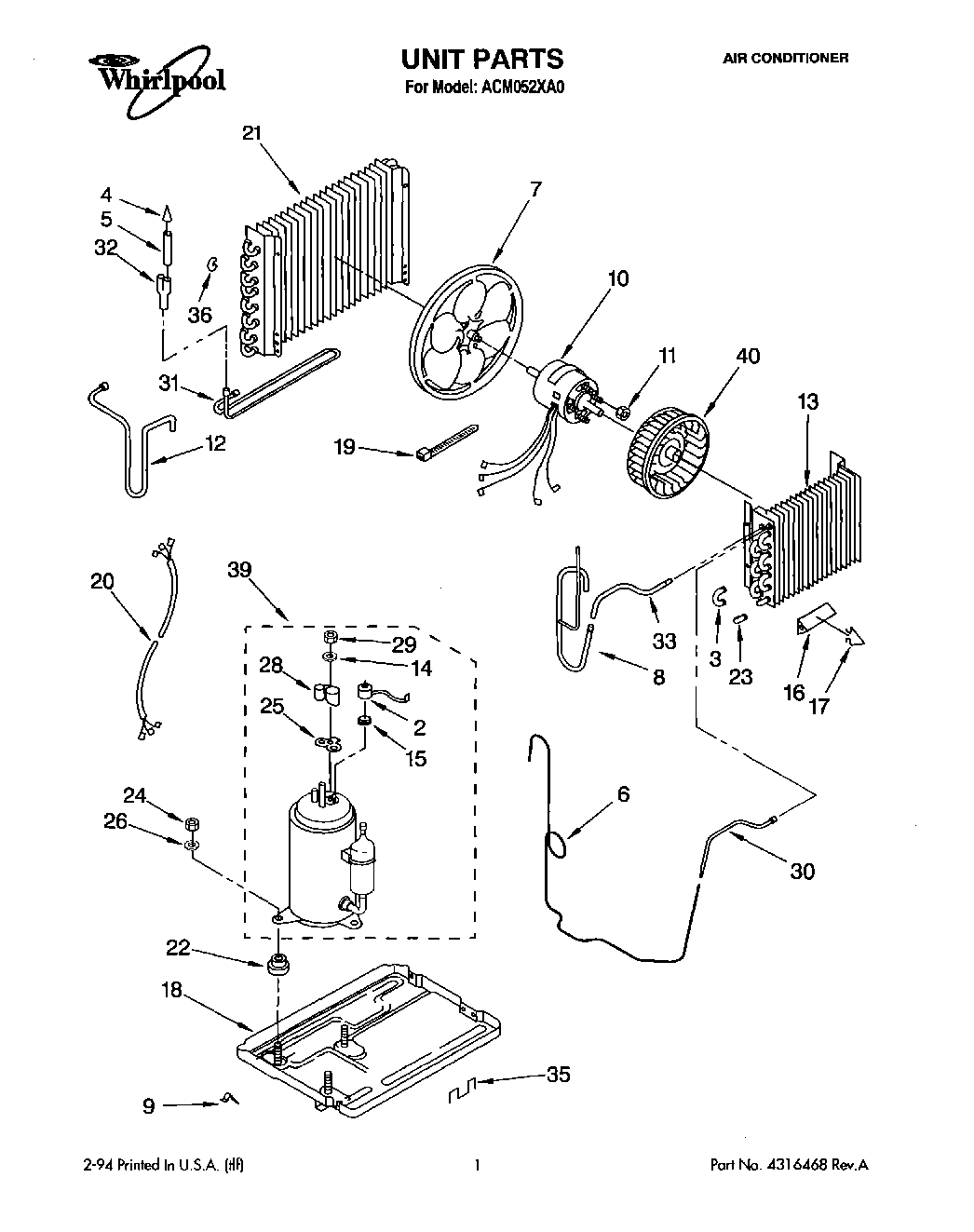

ACM052XA0 01 – UNIT, LITERATURE

Products

Position	Product
	Guide, Use And Care
	Wiring Diagram
	Instructions, Installation
	Tech Sheet
2	Overload
3	Bend, Return Evaporator (11)
4	Strainer
5	Tube & Strainer (Includes Illus. 4)
6	Tube, Restrictor
7	Blade, Fan
8	Tube, Suction
9	Clamp, Tube (2)
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Tube, Discharge
13	Evaporator
14	Gasket, Nut
15	Spring, Overload
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	WPW10339879 Whirlpool Wire Tie
20	Harness, Wiring
21	Condenser
22	Grommet
23	WP855199 Whirlpool Bend Return
24	Nut, Hex (4)
25	WP950035 Whirlpool Cover Gasket
26	WP120393 Whirlpool Washer Assembly
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Tube, Feeder (Restrictor)
31	Tube, Condenser Extension
32	Tube, Flow Divider
33	Tube, Feeder
35	Clip, Mtg. (2) (Base to Front)
36	Bend, Return Condenser (4)
39	Compressor Assembly
40	Wheel, Blower
