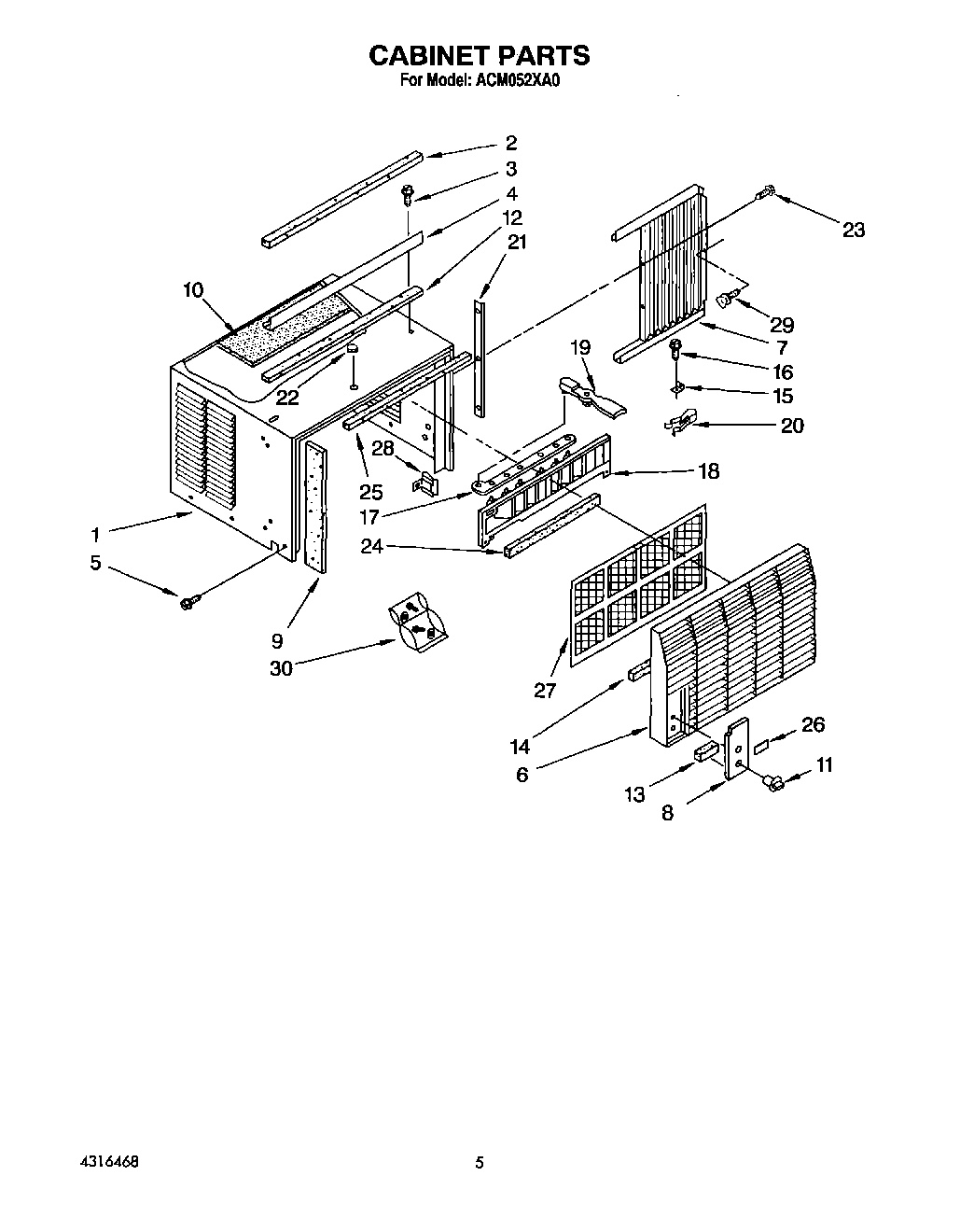

ACM052XA0 03 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3WP308685 Whirlpool Microwave Screw
4Channel, Top
5WP489069 Whirlpool Compactor Screw
6Front, Cabinet Assembly
7Curtain (L.S.)
7Curtain (R.S.)
8Escutcheon
9Insulation, Side
10Insulation, Top
11Knob, Control (2)
12Seal, Strip
13WP854334 Whirlpool Air Conditioner Sealing Strip
15Bracket
16Screw, Wood 8-15 x .750
17Link, Louver (2)
18Louver, Vertical
19Handle, Louver
20Detent Spring (2)
21Retainer, Curtain (2)
22Cover, Hole
23Screw, 8-18 x 3/8
24Seal, Vertical Louver
25Seal
26Nameplate
27Filter
28Clip, Vertical Louver
29Thumbscrew (2)
30Bag, Accessory
