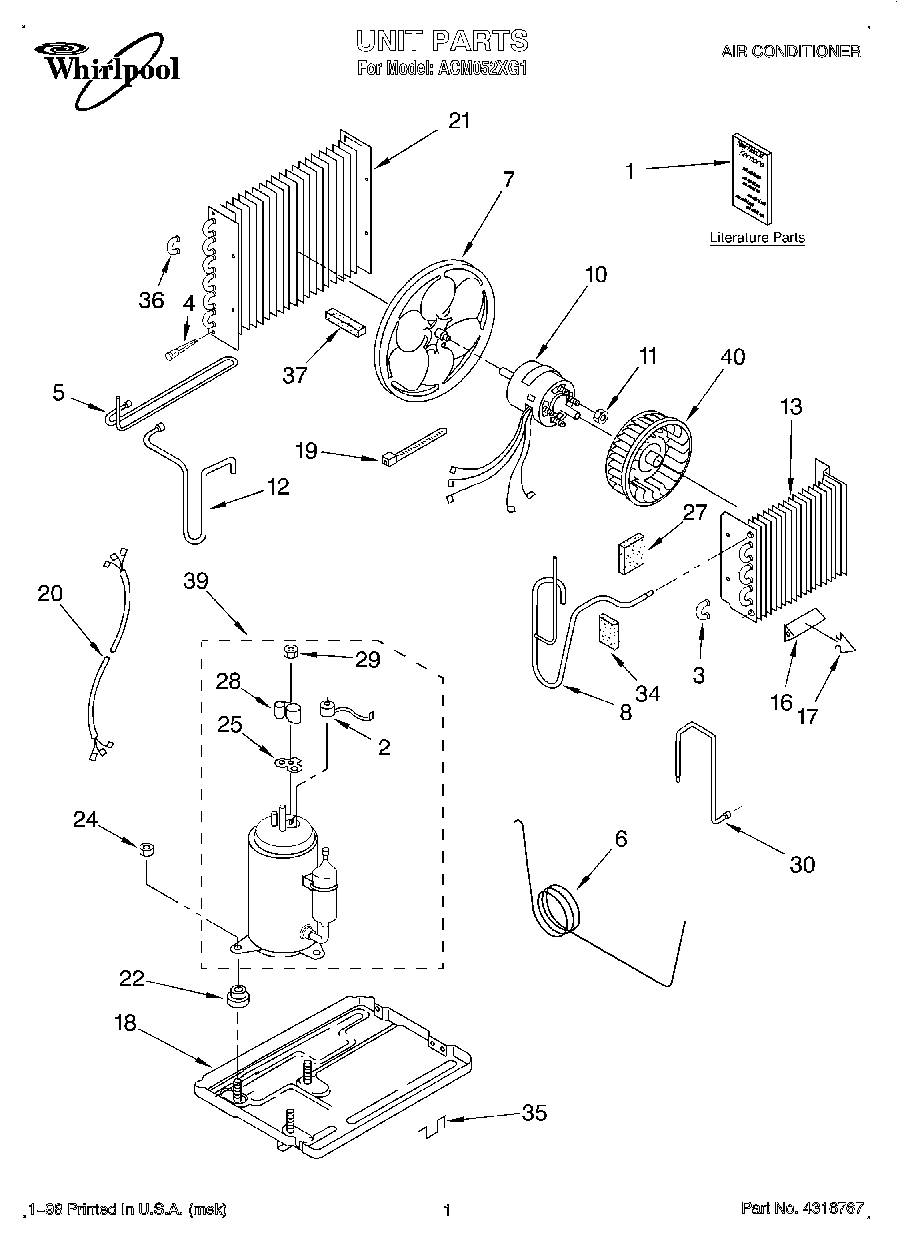

ACM052XG1 01 – UNIT, LITERATURE

Products

PositionProduct
1Tech Sheet
1Owners Manual
1LITERATURE PARTS (Wiring Diagram)
2Overload
4WP1162526 Whirlpool Air Conditioner Strainer
5Tube, Wet Loop
6Tube, Restrictor
7Blade, Fan
8Tube, Suction
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
12Tube, Discharge
13Evaporator
16Anticipator, Temperature
17Clip, Anticipator
18Base
19WPW10339879 Whirlpool Wire Tie
20Harness, Wiring
21Condenser
22Grommet (3)
24Nut, Hex
25Gasket, Terminal Cover
27Sealer, Tube
28Cover, Terminal
29Nut, Hex
30Tube, Feeder (Restrictor)
34Sealer, Tube
35Clip, Mtg. (2) (Base to Front)
36Bend, Return Condenser (4)
37WP854334 Whirlpool Air Conditioner Sealing Strip
39Compressor
40Wheel, Blower
