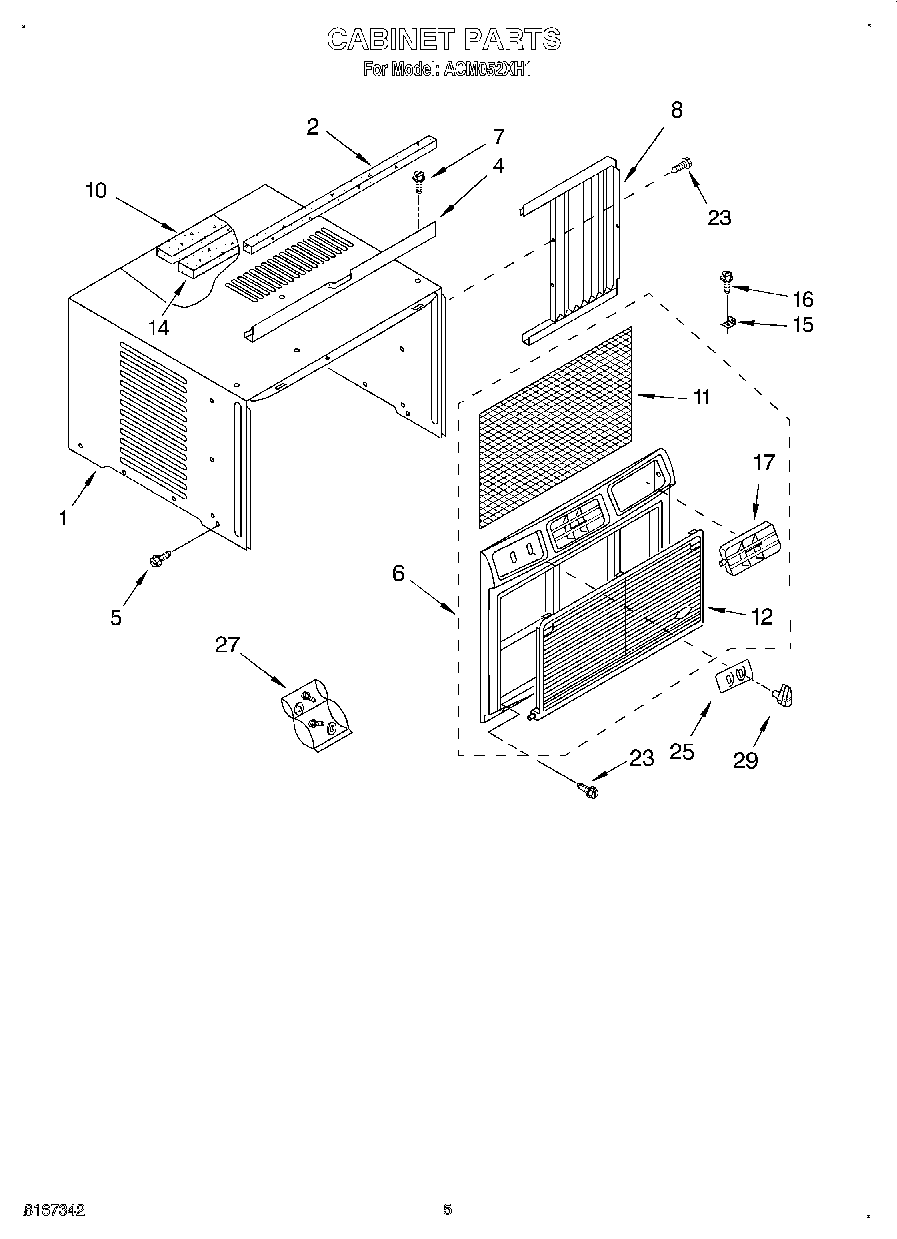

ACM052XH1 03 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
4	Channel, Top
5	WP489069 Whirlpool Compactor Screw
6	Front, Cabinet Assembly
7	WP308685 Whirlpool Microwave Screw
8	Curtain (L.S.)
8	Curtain (R.S.)
10	Insulation, Top
11	Filter
12	Grille, Front
14	Foam, Condenser
15	Bracket
16	Screw, Wood 8-15 x .750
17	Louver, Assembly
23	Screw, 8-18 x 3/8
25	Escutcheon
27	Bag, Accessory
29	WP8031121 Whirlpool Air Conditioner Control Knob
