ACM052XK1 01 – UNIT, LITERATURE

Products

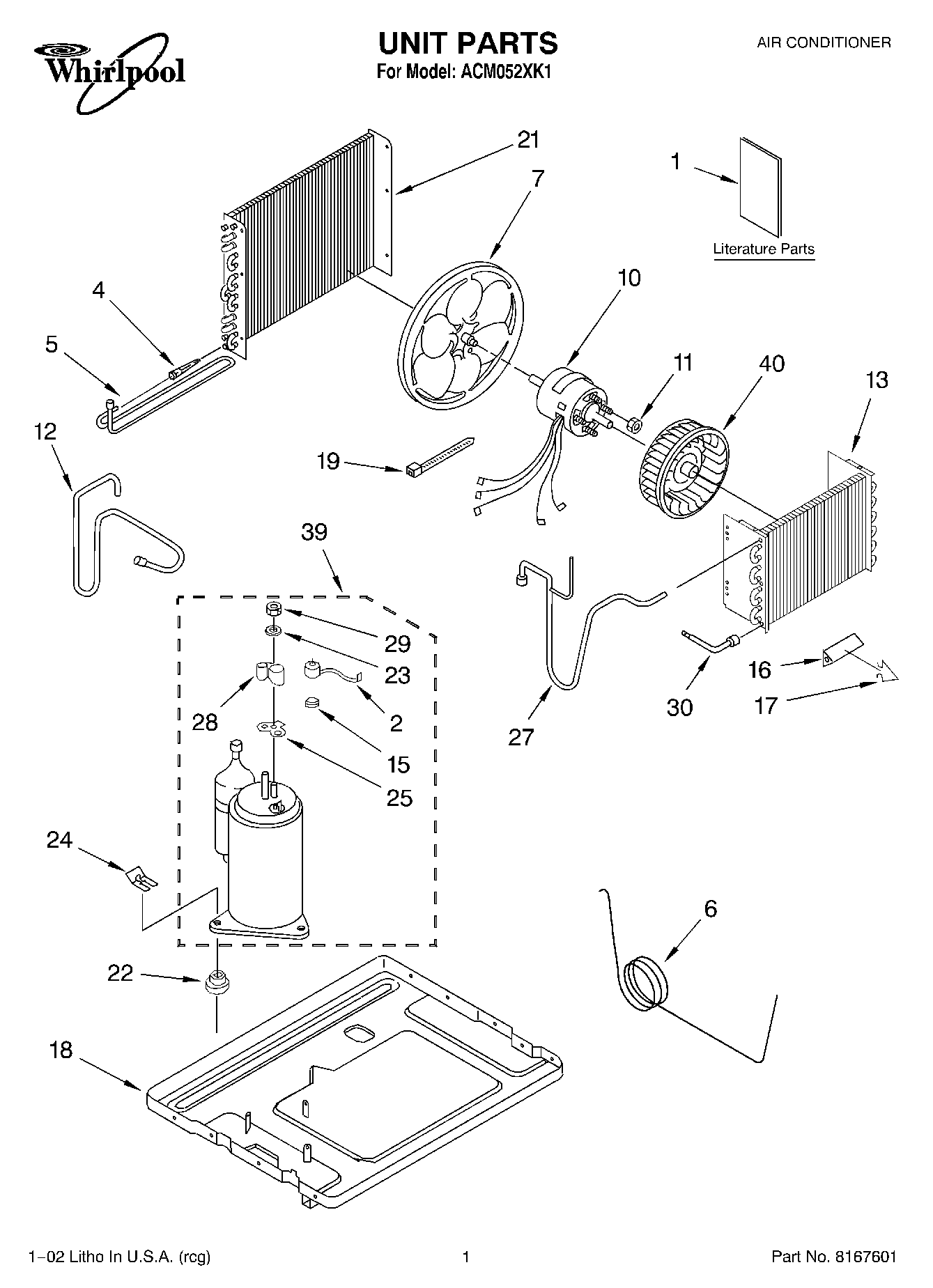

PositionProduct
1Use & Care Guide
1Energy Guide
1LITERATURE PARTS (Wiring Diagram)
2Overload
4WP1162526 Whirlpool Air Conditioner Strainer
5Tube, Wet Loop
6Tube, Restrictor
7Blade, Fan
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
12Tube, Discharge
13Evaporator
15Spring, Overload
16Anticipator, Temperature
17Clip, Anticipator
18Base
19WPW10339879 Whirlpool Wire Tie
21Condenser
22Grommet
23Washer
24Clip, Compressor
25Gasket, Terminal Cover
27Tube, Suction
28Cover, Terminal
29W10833054 Whirlpool Air Conditioner Mounting Nut
30Tube, Feeder (Restrictor)
39Compressor Assembly
40Wheel, Blower
