ACM052XK1 02 – AIR FLOW AND CONTROL
Written by
in

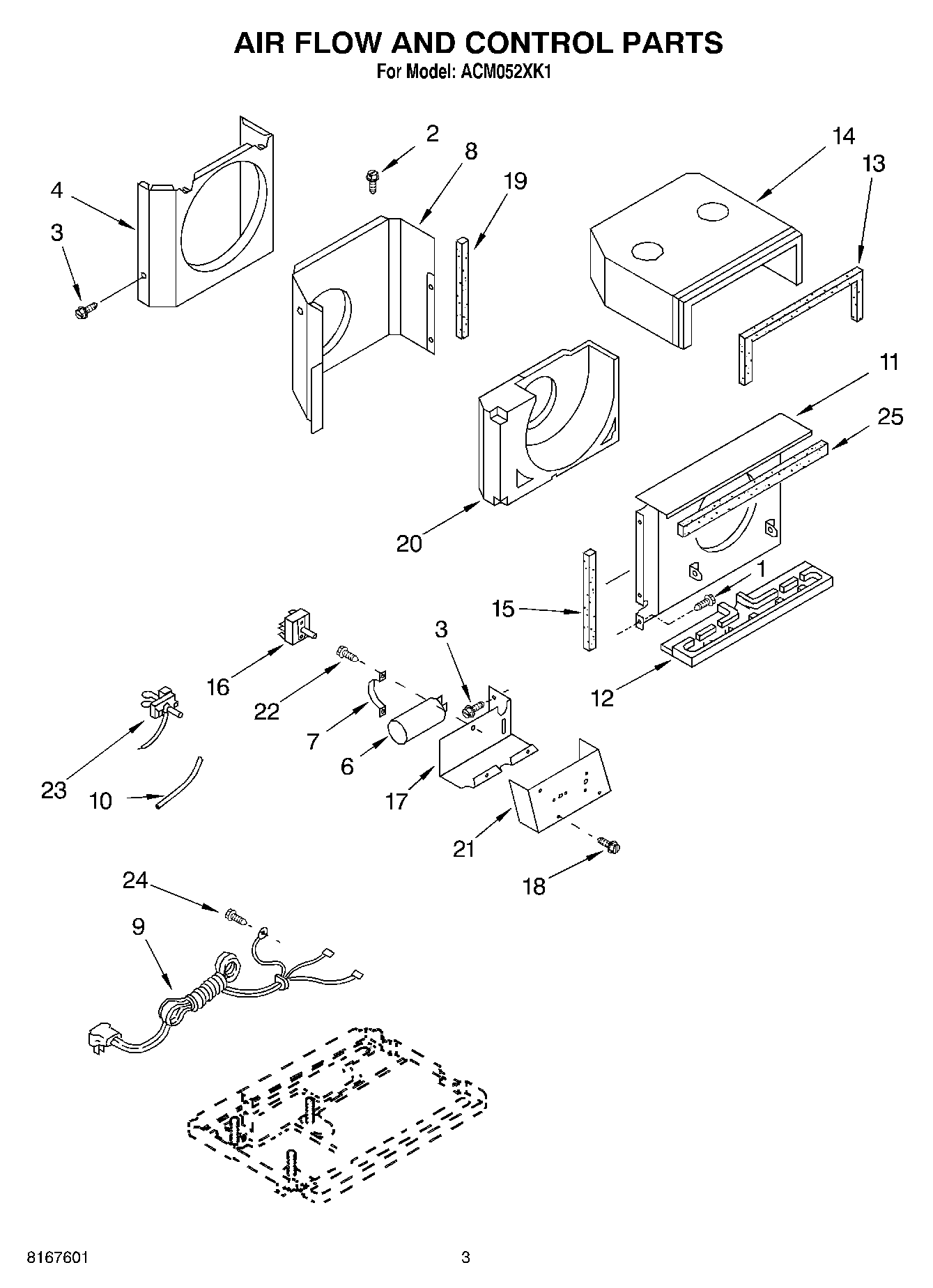

ACM052XK1 02 – AIR FLOW AND CONTROL
Products
Position
Product
1
Screw, 8 x 3/8
2
WP489069 Whirlpool Compactor Screw
4
Shroud, Condenser
6
Capacitor
7
Bracket, Capacitor
8
Wall, Dividing
9
Cord, Appliance
10
Sleeve, Insulating
11
Shroud, Evaporator
12
Pan, Evaporator
13
Seal
14
Hood, Air Housing
15
Seal, Left Side
16
Switch, Rotary
17
Box, Control
18
Screw, 6-32 x .175
19
WP854334 Whirlpool Air Conditioner Sealing Strip
20
Housing, Air
21
Panel, Control
23
Control, Temp.
24
Screw 8-18 x .295
25
Seal, Right Side
←
