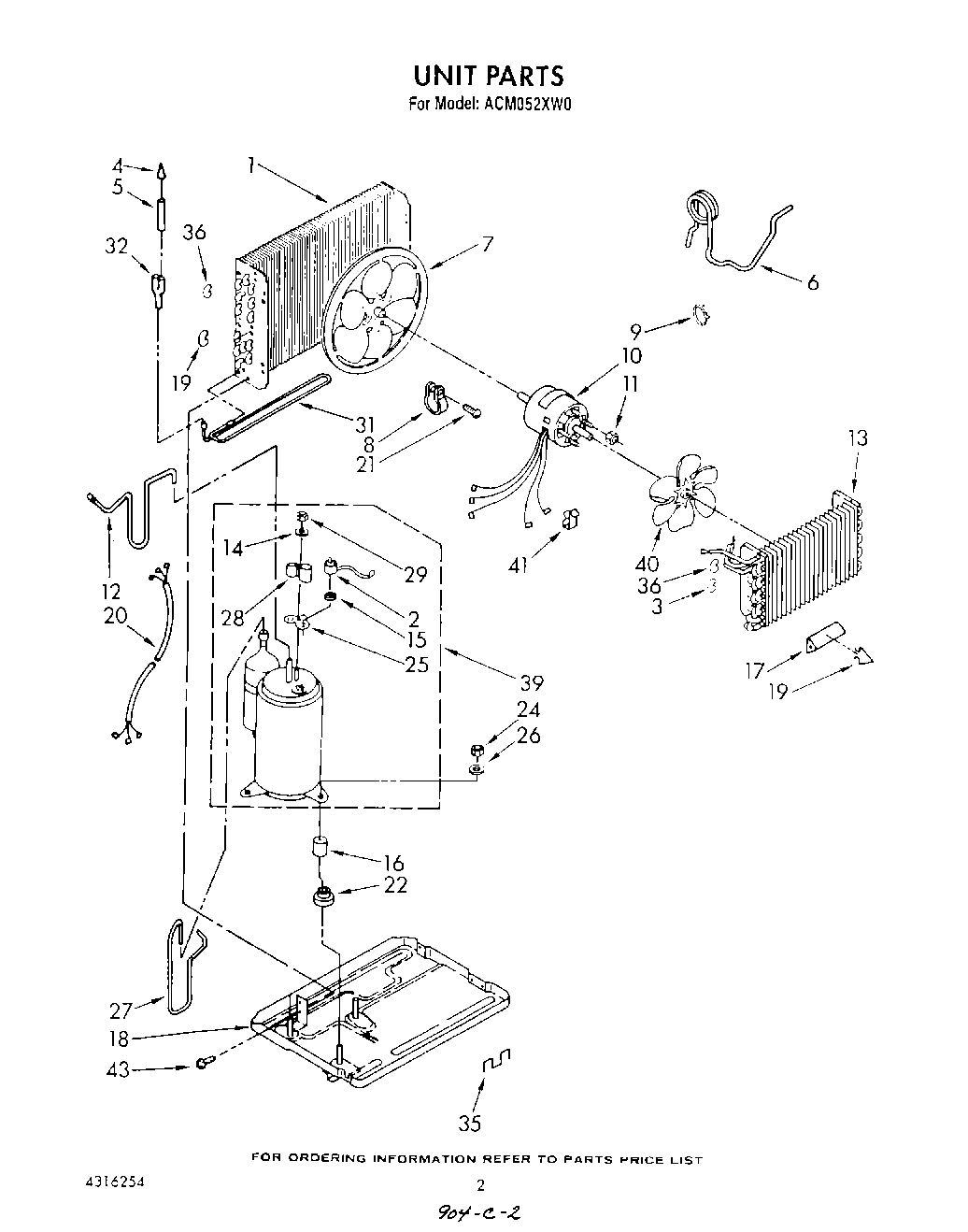

ACM052XW0 02 – UNIT

Products

Position	Product
	List, Repair Parts
	Tech Sheet
	Guide, Use And Care
	Instructions, Installation
1	Condenser
2	WP1161170 Whirlpool Air Conditioner Overload
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes Illus. 24)
6	Tube, Restrictor
7	Blade, Fan
8	Clip, Balancing
9	Clip, Tube
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Tube, Discharge
13	Evaporator
15	Spring, Overload
16	Sleeve, Compressor (3)
17	Anticipator, Temperature
18	Base
19	Clip, Anticipator
20	Harness, Wiring
22	Grommet (4)
24	Locknut (3)
25	Gasket, Terminal Cover
26	WP120393 Whirlpool Washer Assembly
27	Tube, Suction
28	Cover, Terminal
29	Gasket, Nut
31	Tube, Condenser Extension
32	Tube, Flow Divider
35	Clip, Mtg. (2) (Base to Front)
36	Bend, Return Condenser (10)
39	Compressor Assembly
40	Fan, Blade Evaporator
41	Clamp, Wiring
43	WP489069 Whirlpool Compactor Screw
