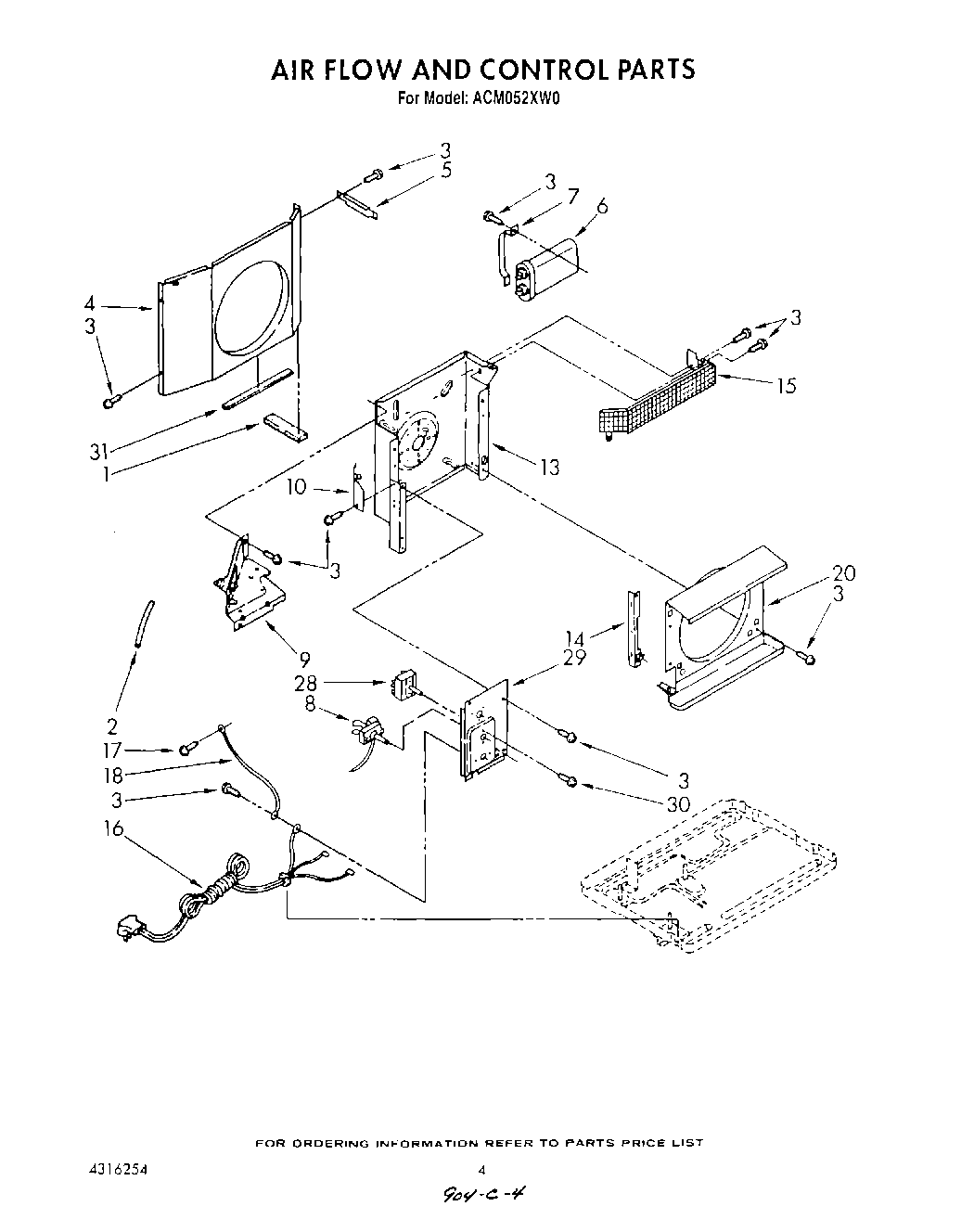

ACM052XW0 03 – AIR FLOW AND CONTROLadmin2025-04-26T10:51:54+00:00ACM052XW0 03 – AIR FLOW AND CONTROL
Products
| Position | Product |
|---|
| 1 | Seal, Condensate |
| 2 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 3 | WP489069 Whirlpool Compactor Screw |
| 4 | Shroud, Condenser |
| 5 | Support, Unit |
| 6 | Capacitor, Running |
| 7 | Bracket, Capacitor |
| 8 | Control, Temperature |
| 9 | Extension, Dividing Wall |
| 10 | Plate, Dividing Wall |
| 13 | Wall, Dividing |
| 14 | Bracket, Evaporator Mounting |
| 15 | Insulation, Motor |
| 16 | Cord, Appliance |
| 17 | WPW10141604 Whirlpool Screw |
| 18 | Wire, Ground |
| 20 | Shroud, Evaporator |
| 28 | Switch, Rotary |
| 29 | Panel, Control |
| 30 | Screw, 6-32 x .175 |
| 31 | WP854334 Whirlpool Air Conditioner Sealing Strip |
