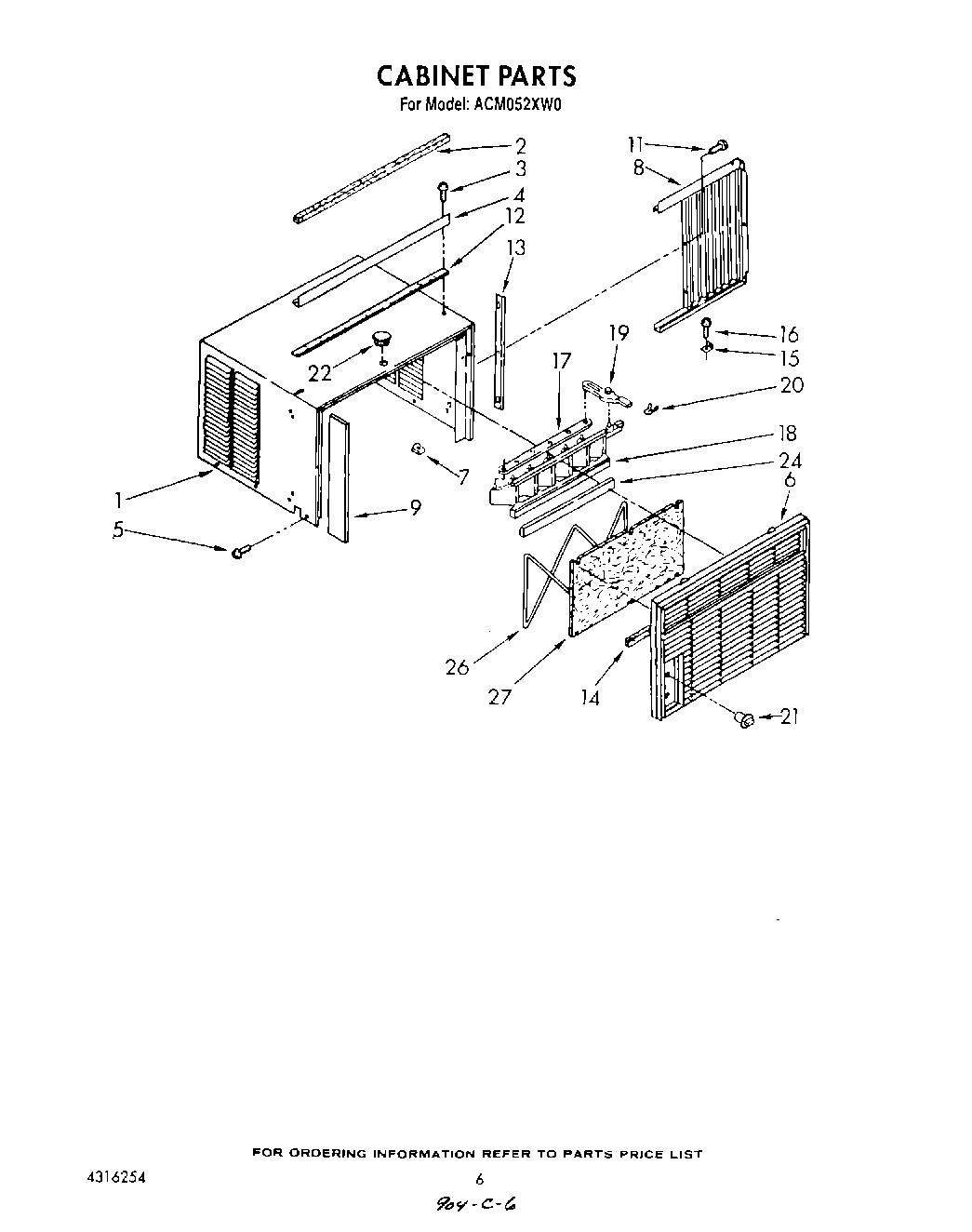

ACM052XW0 04 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP308685 Whirlpool Microwave Screw
4	Channel, Top
5	WP489128 Whirlpool Refrigerator Screw
6	Front, Cabinet Assembly
7	Clip, Vertical Louver
8	Housing, Curtain (R.S.)
8	Housing, Curtain (L.S.)
9	Insulation, Side
11	Screw, 8 x 7/16
12	Seal, Strip
13	Retainer, Curtain (2)
14	WP854334 Whirlpool Air Conditioner Sealing Strip
15	Bracket
16	Screw, Wood 8-15 x .750
17	Link, Louver (2)
18	Louver, Vertical
19	Handle, Louver (2)
20	Detent Spring (2)
21	Knob, Control
22	Cover, Hole
24	Seal, Vertical Louver
26	Retainer, Filter
27	Filter
