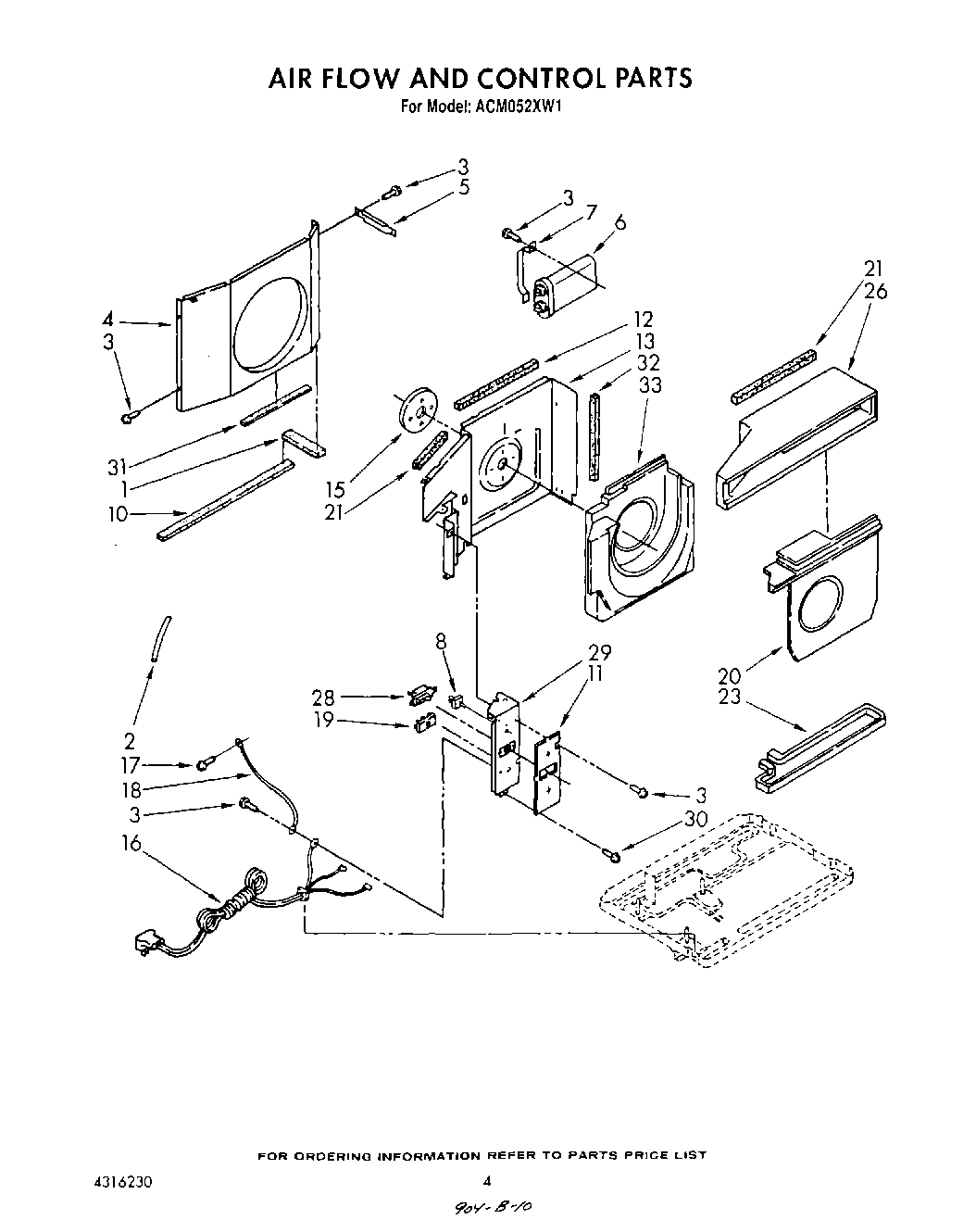

ACM052XW1 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	Seal, Condensate
2	212643 Whirlpool Refrigerator Permagum Sealer
3	WP489069 Whirlpool Compactor Screw
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Run
7	Bracket, Capacitor
8	Control, Temperature
10	Seal
11	Insulation, Control Panel
12	WP854334 Whirlpool Air Conditioner Sealing Strip
13	Wall, Dividing
15	Insulation, Motor
16	Cord, Appliance
17	WPW10141604 Whirlpool Screw
18	Wire, Ground
19	Board, Terminal
20	Orifice, Air Housing
23	Pan, Evaporator
26	Hood, Air Housing
28	Switch, Rotary
29	Panel, Control
30	Screw, 6-32 x .175
33	Housing, Air
