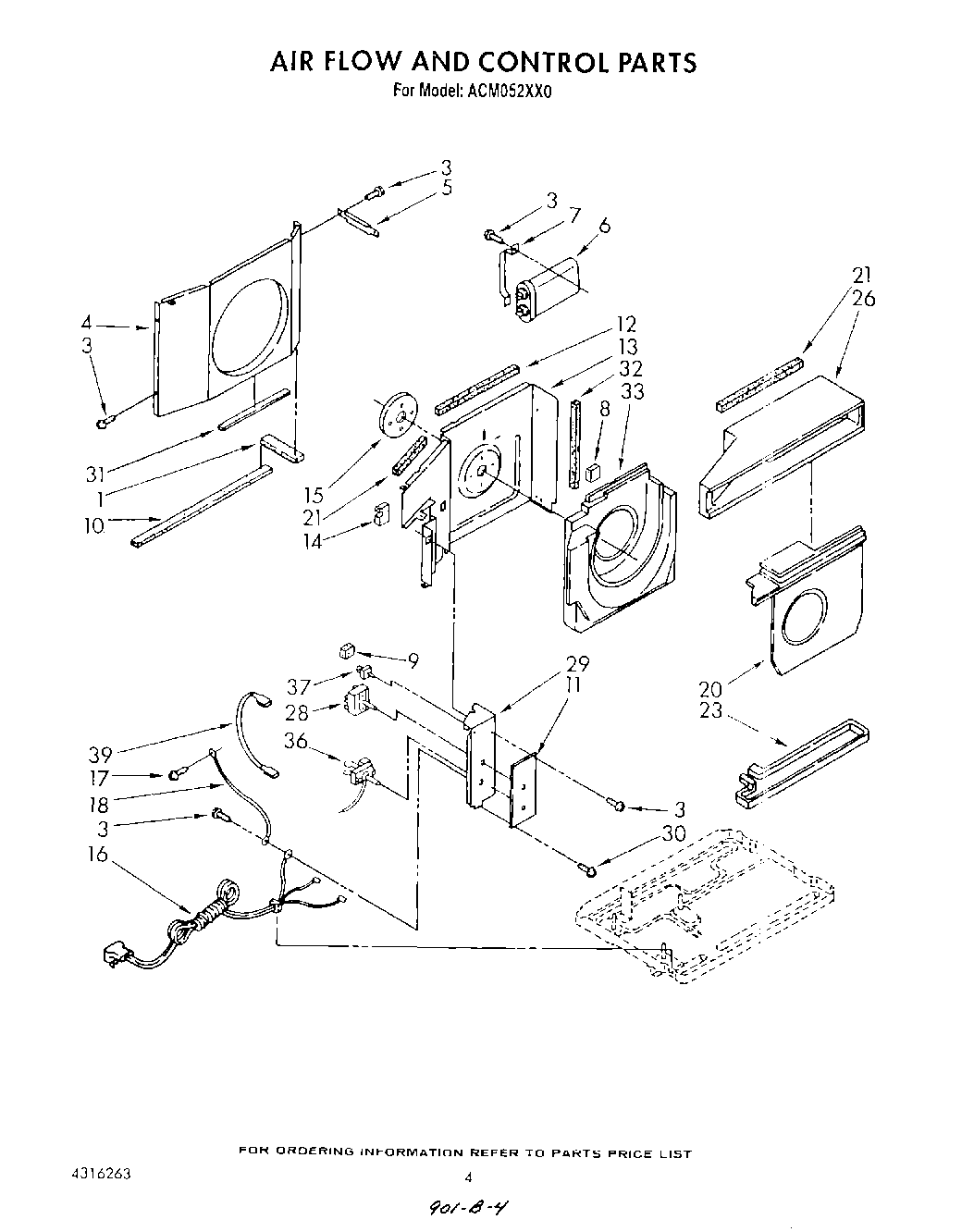

ACM052XX0 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	Seal, Condensate
3	Screw 8-18 x .295
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Run
7	Bracket, Capacitor
8	Seal, Condenser (R.S.)
9	Sealer, Tube
10	Seal
11	Insulation, Control Panel
12	WP854334 Whirlpool Air Conditioner Sealing Strip
13	Wall, Dividing
14	Sealer, Tube
15	Insulation, Motor
16	Cord, Appliance
17	Screw, 8 x 3/8
18	Wire, Ground
20	Orifice, Air Housing
23	Pan, Evaporator
26	Hood, Air Housing
28	Switch, Rotary
29	Panel, Control
30	Screw, 6-32 x .175
33	Housing, Air
36	Control, Temperature
39	Wire, Jumper
