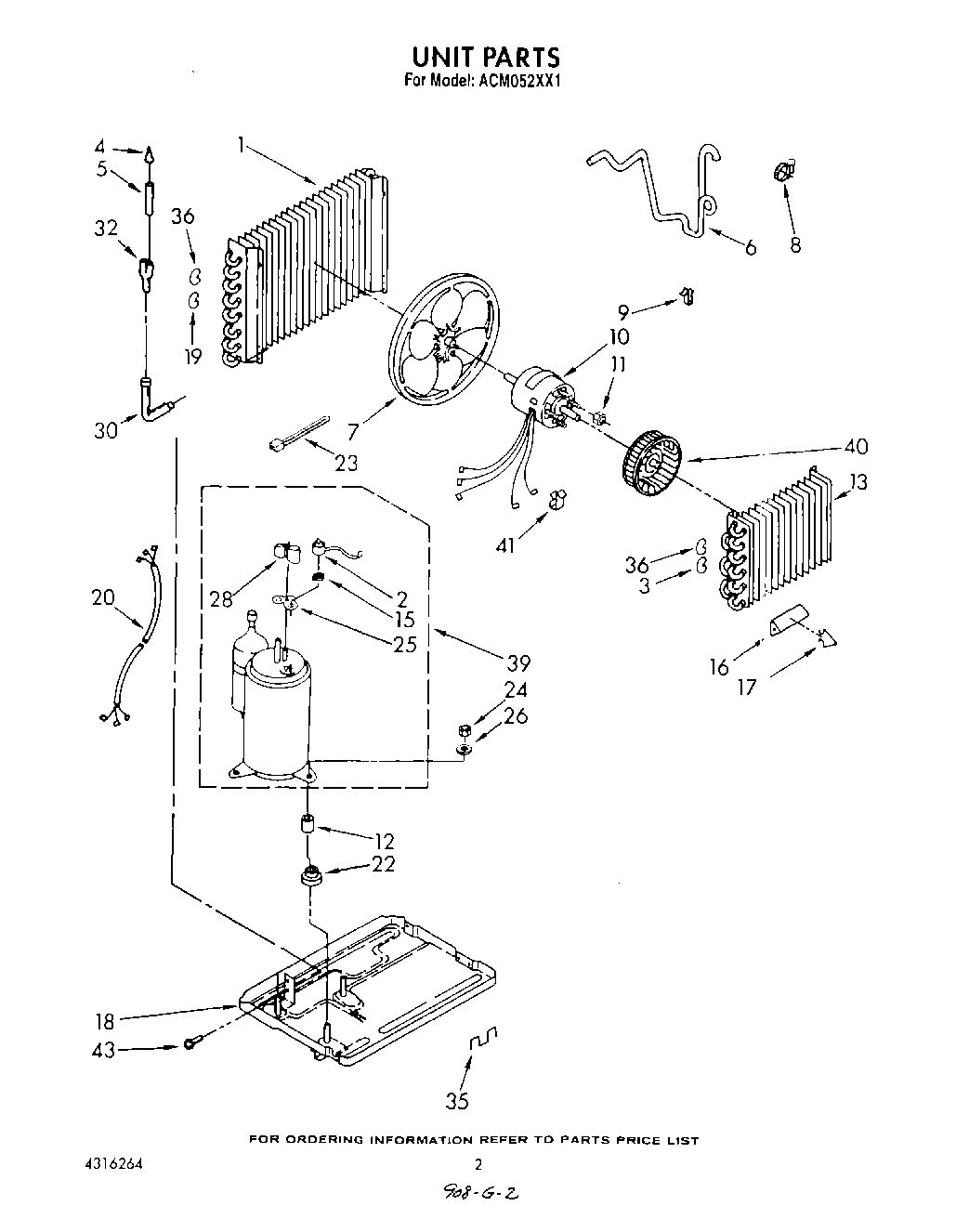

ACM052XX1 02 – UNIT

Products

Position	Product
	List, Repair Parts
	Instructions, Installation
	Tech Sheet
	Guide, Use and Care
	Buy Guide Label
1	Condenser
2	WP1161170 Whirlpool Air Conditioner Overload
3	Bend, Return Condenser (4)
4	Strainer
5	Tube & Strainer (Includes Illus. 4)
6	Tube, Restrictor
7	Blade, Fan
9	Clamp, Tube (2)
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Sleeve, Compressor (3)
13	Evaporator
15	Spring, Overload
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	Bend Return Condenser (18)
20	Harness, Wiring
22	Grommet (4)
23	WPW10339879 Whirlpool Wire Tie
24	Locknut (3)
25	Gasket, Terminal Cover
26	WP120393 Whirlpool Washer Assembly
28	Cover, Terminal
30	Tube, 90~ Connect
32	Tube, Flow Divider
35	Clip, Mtg. (2) (Base to Front)
36	Bend, Return Condenser (10)
39	Compressor Assembly
40	Wheel, Blower
41	Clamp, Wiring
43	WP489069 Whirlpool Compactor Screw
