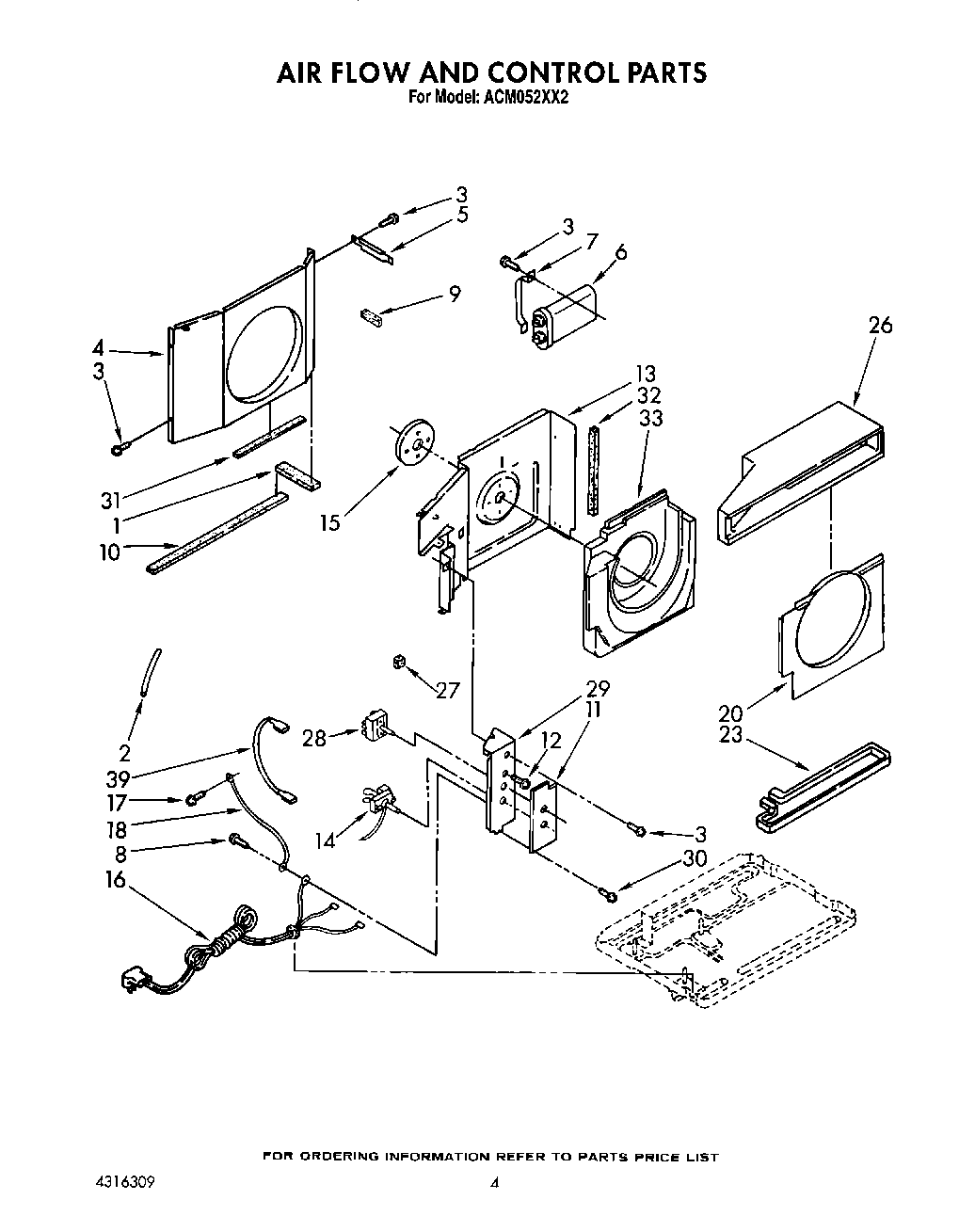

ACM052XX2 03 – AIRFLOW AND CONTROL

Products

Position	Product
1	Seal, Condensate
2	Sealer, Tube
3	WP489069 Whirlpool Compactor Screw
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Screw 8-18 x .295
9	Seal, Condenser (R.S.)
10	Seal
11	Insulation, Control Panel
12	Screw, 6-32 x .175
13	Wall, Dividing
14	Control, Temperature
15	Insulation, Motor
16	Cord, Appliance
17	Screw, 8 x 3/8
18	Wire, Ground
20	Shroud, Evaporator
23	Pan, Evaporator
26	Hood, Air Housing
27	Sealer, Tube
28	Switch, Rotary
29	Panel, Control
30	Screw, 8-18 x 3/8
32	WP854334 Whirlpool Air Conditioner Sealing Strip
33	Housing, Air
39	Wire, Jumper
