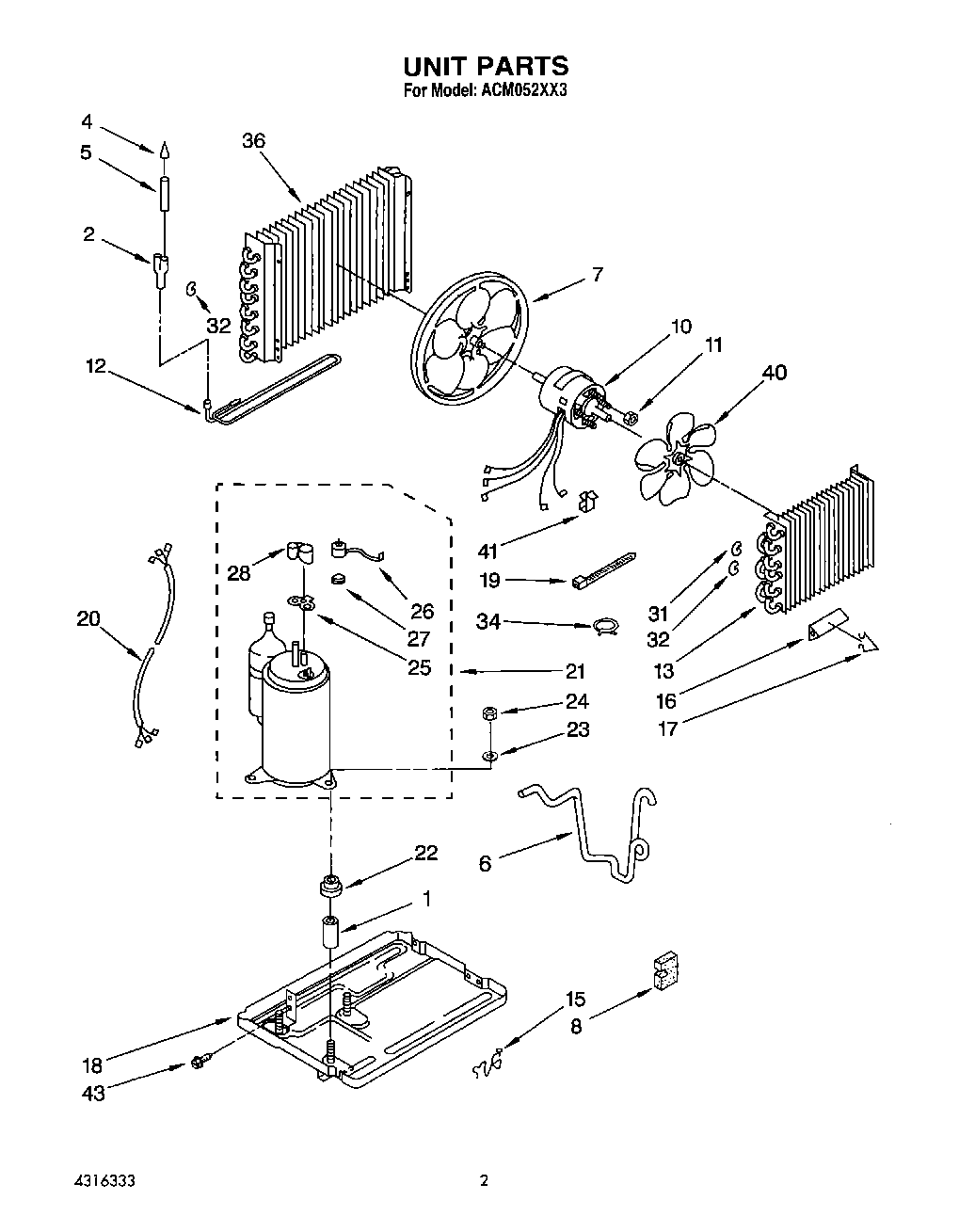

ACM052XX3 02 – UNIT, LIT/OPTIONAL

Products

Position	Product
	Repair Parts List
	Tech Sheet
	Wiring Diagram
	Instructions, Installation
	Guide, Use and Care
1	Sleeve, Compressor (3)
2	Tube, Flow Divider
4	Strainer
5	Tube & Strainer (Includes Illus. 4)
6	Tube, Restrictor
7	Blade, Fan
8	Sealer, Tube
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Tube, Condenser Extension
13	Evaporator
15	Clip, Mtg. (2) (Base to Front)
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	WPW10339879 Whirlpool Wire Tie
20	Harness, Wiring
21	Compressor Assembly
22	Grommet (4)
23	WP120393 Whirlpool Washer Assembly
24	Locknut (3)
25	Gasket, Terminal Cover
26	WP1161170 Whirlpool Air Conditioner Overload
27	Spring, Overload
28	Cover, Terminal
31	Bend, Return Condenser (4)
32	Bend, Return Condenser (10)
34	Clamp, Tube (2)
36	Condenser
40	Blade, Fan
41	Clamp, Wiring
43	WP489069 Whirlpool Compactor Screw
