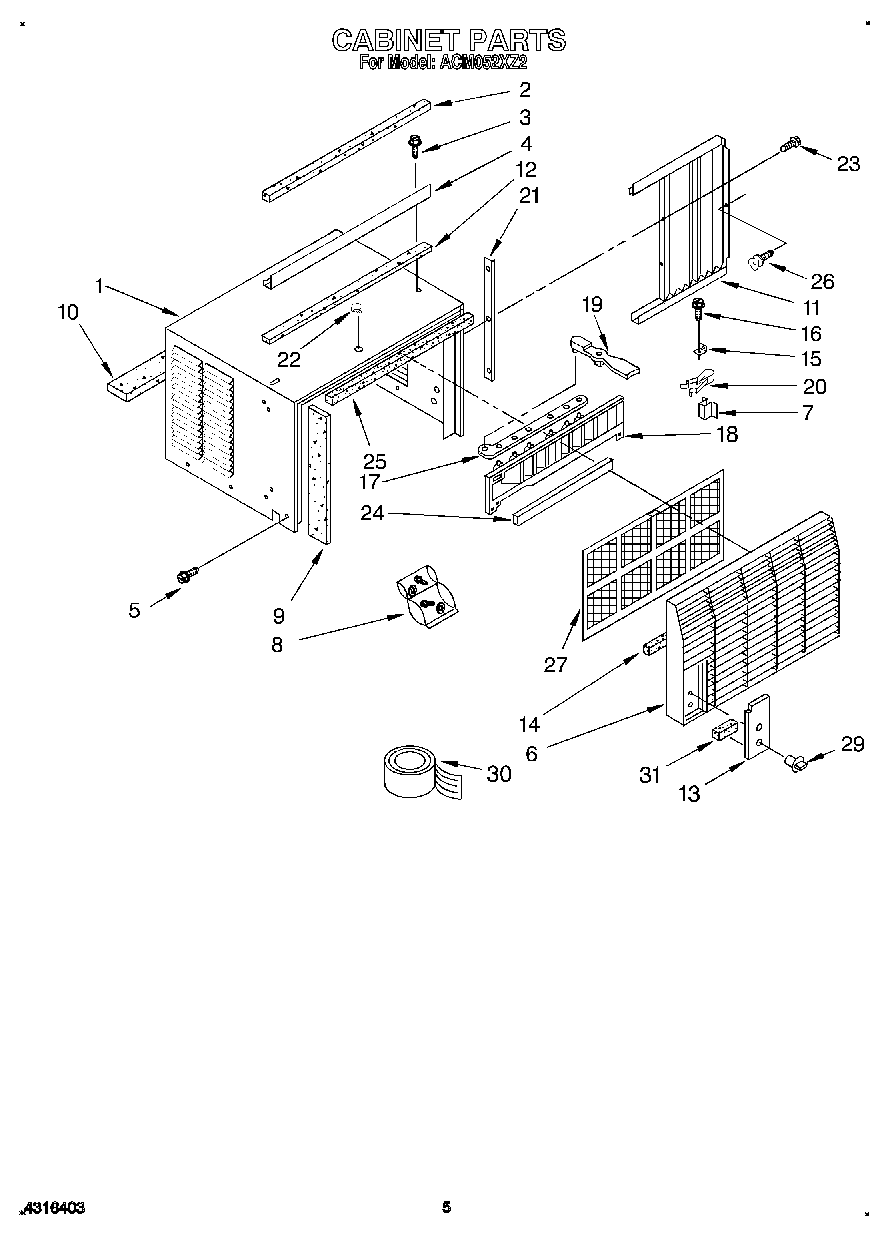

ACM052XZ2 03 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP308685 Whirlpool Microwave Screw
4	Channel, Top
5	WP489069 Whirlpool Compactor Screw
6	Front, Cabinet Assembly
7	Clip, Vertical Louver
8	Bag, Accessory
9	Insulation, Side
10	Insulation, Top
11	Curtain (R.S.)
11	Housing, Curtain (L.S.)
12	Seal, Strip
13	Escutcheon
15	Bracket
16	Screw, Wood 8-15 x .750
17	Link, Louver (2)
18	Louver, Vertical
19	Handle, Louver
20	Detent Spring (2)
21	Retainer, Curtain (2)
22	Cover, Hole
23	Screw 8-18 x .295
24	Seal, Vertical Louver
25	Seal
26	Thumbscrew (2)
27	Filter
29	Knob, Control (2)
30	212643 Whirlpool Refrigerator Permagum Sealer
31	WP854334 Whirlpool Air Conditioner Sealing Strip
