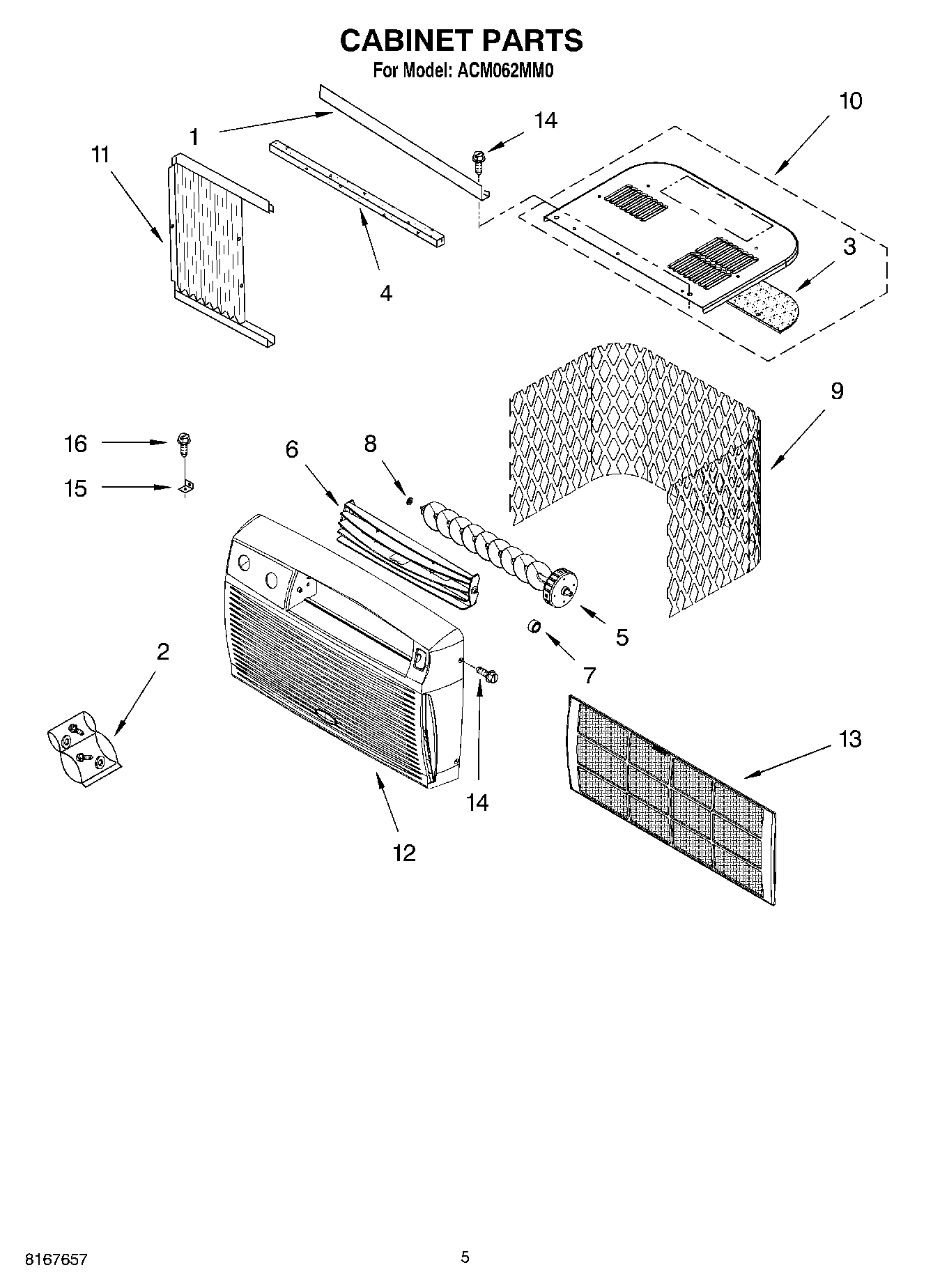

ACM062MM0 03 – CABINET PARTS

Products

PositionProduct
1Top Channel
2Bag, Accessory
3Insulation, Top
4Gasket, Meeting Rail
5Louver Assembly, Vertical
6Louver, Horizontal
7Clip, Anticipator
8WASHER
9Grille, Rear
10Cover, Top
11Curtain Assembly (Left Side)
11Curtain Assembly (Right Side)
12Front, Cabinet
13Filter, Woven
14Screw
15Bracket
16Condensate, Drain Kit
16Screw, Wood 8-15 x .750
16ACCESSORY PARTS
16Following Parts Not Illustrated and Optional Parts Not Included
