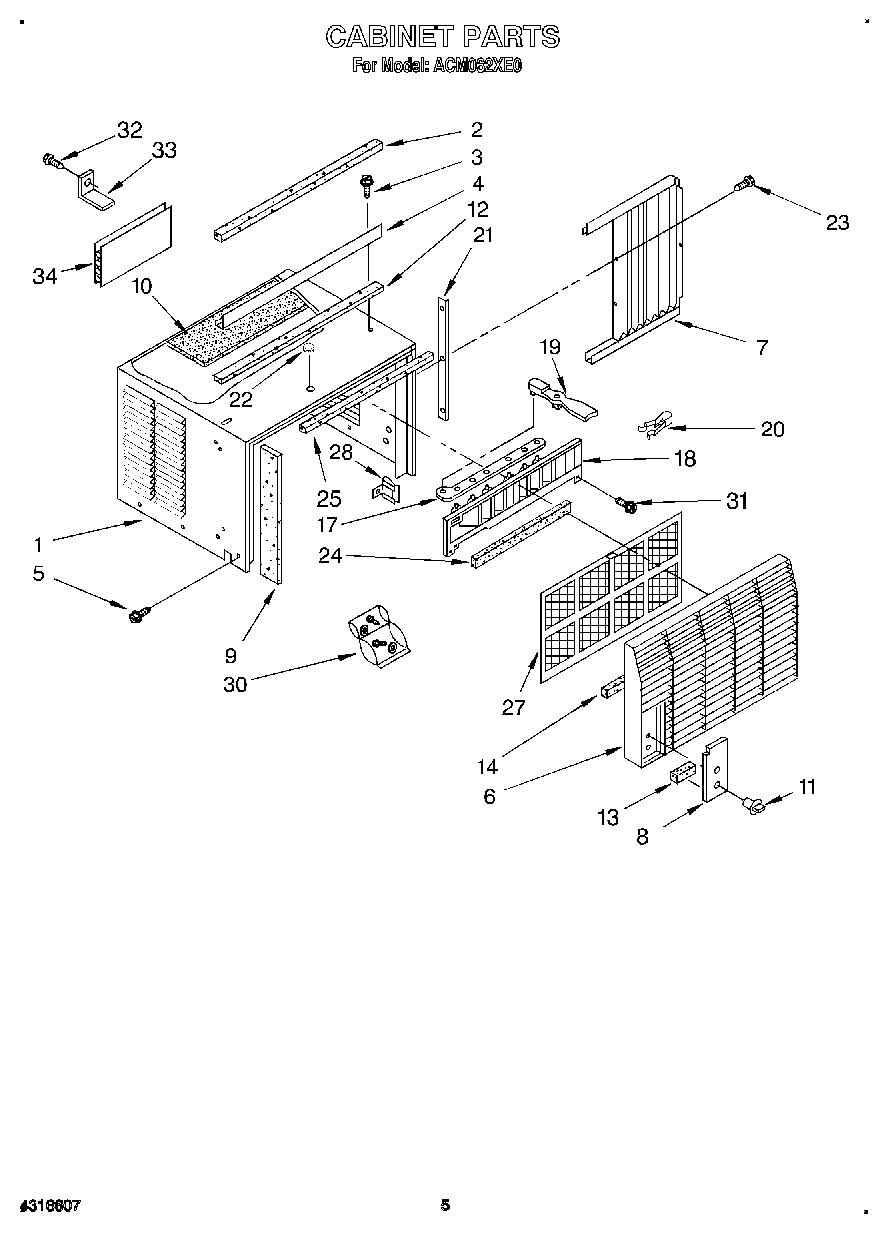

ACM062XE0 03 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP308685 Whirlpool Microwave Screw
4	Channel, Top
5	WP489069 Whirlpool Compactor Screw
6	Front, Cabinet Assembly
7	Curtain (R.S.)
7	Curtain (L.S.)
8	Escutcheon
9	Insulation, Side
10	Insulation, Top
11	Knob, Control (2)
12	Seal, Strip
13	Spacer, Escutcheon Plate (3)
14	WP854334 Whirlpool Air Conditioner Sealing Strip
17	Link, Louver (2)
18	Louver, Vertical
19	Handle, Louver
20	Detent Spring (2)
21	Retainer, Curtain (2)
22	Cover, Hole
23	Screw, 8-18 x 3/8
24	Seal, Vertical Louver
25	Seal
27	Filter
28	Clip, Vertical Louver
30	Bag, Accessory
31	Screw 8-18 x .295
32	Screw, Wood 8-15 x .750
33	Bracket
34	212643 Whirlpool Refrigerator Permagum Sealer
