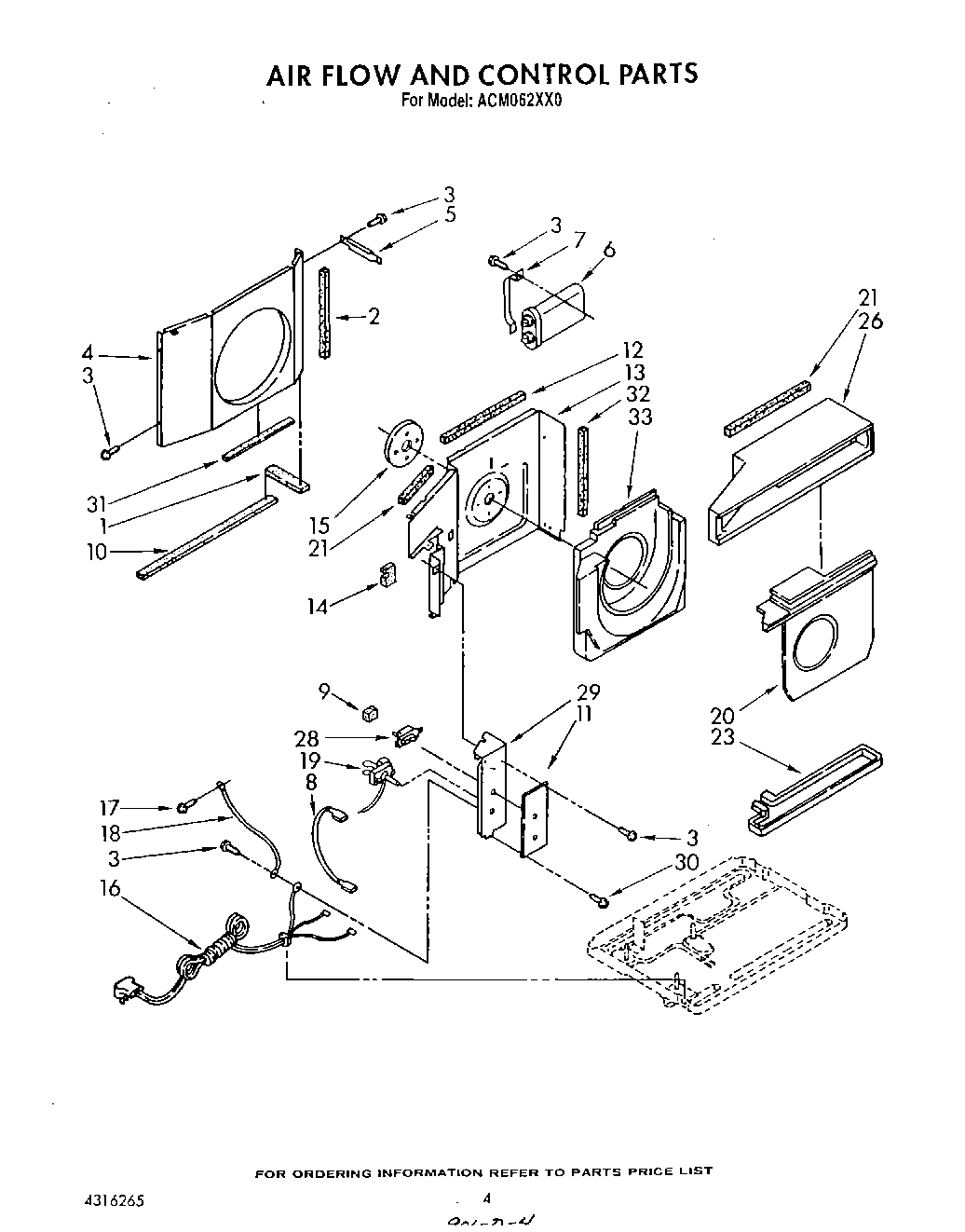

ACM062XX0 03 – AIRFLOW AND CONTROLadmin2025-04-26T10:53:41+00:00ACM062XX0 03 – AIRFLOW AND CONTROL
Products
| Position | Product |
|---|
| 1 | Seal, Condensate |
| 2 | Seal, Condenser (R.S.) |
| 3 | WP489069 Whirlpool Compactor Screw |
| 4 | Shroud, Condenser |
| 5 | Support, Unit |
| 6 | Capacitor, Running |
| 7 | Bracket, Capacitor |
| 8 | Wire, Jumper |
| 9 | Sealer, Tube |
| 10 | Seal |
| 11 | Insulation, Control Panel |
| 12 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 13 | Wall, Dividing |
| 14 | Sealer, Tube |
| 15 | Insulation, Motor |
| 16 | Cord, Appliance |
| 17 | WP488729 Whirlpool Refrigerator Door Screw |
| 18 | Wire, Ground |
| 19 | Control, Temperature |
| 20 | Orifice, Air Housing |
| 23 | Pan, Evaporator |
| 26 | Hood, Air Housing |
| 28 | Switch, Rotary |
| 29 | Panel, Control |
| 30 | Screw, 6-32 x .175 |
| 33 | Housing, Air |
