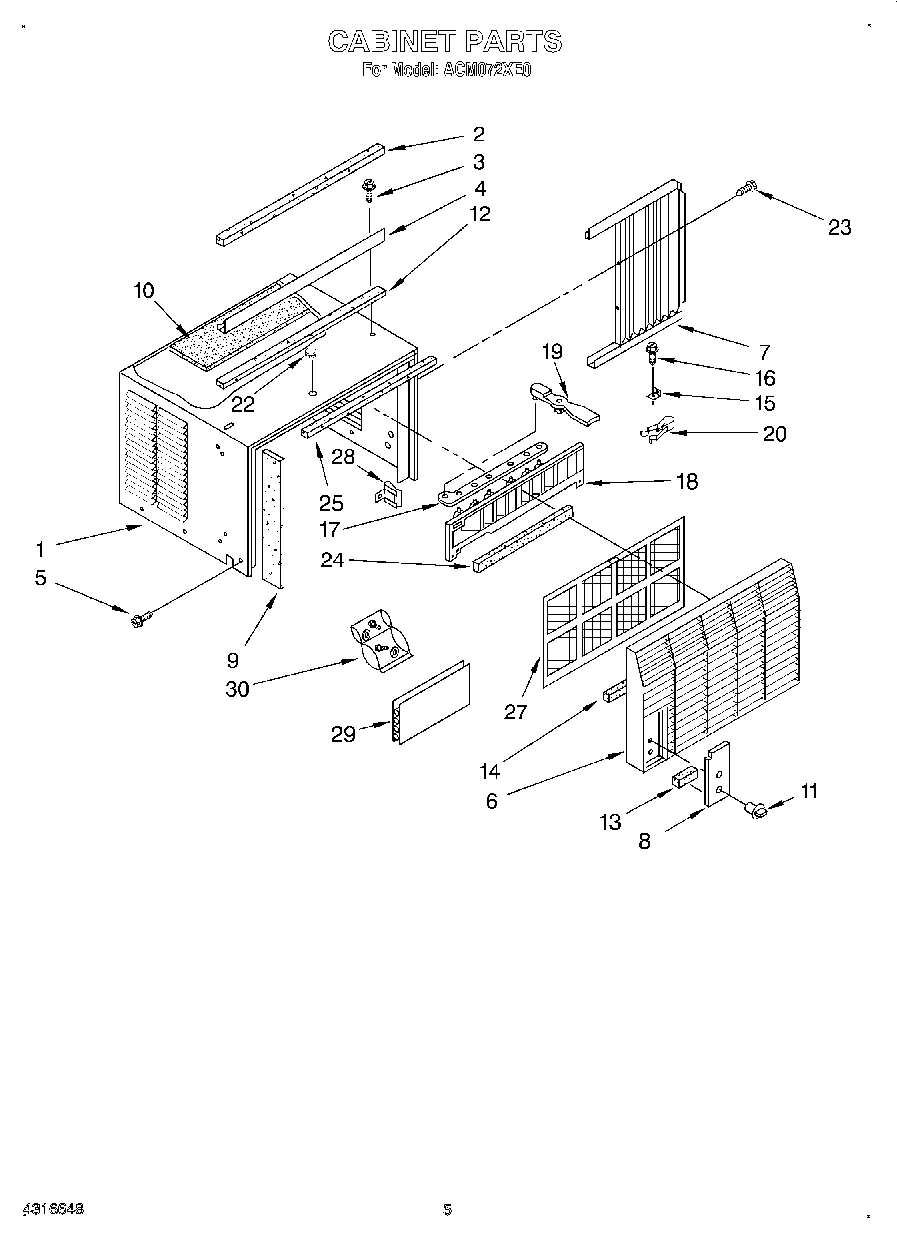

ACM072XE0 03 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP308685 Whirlpool Microwave Screw
4	Channel, Top
5	WP489069 Whirlpool Compactor Screw
6	Front, Cabinet Assembly
7	Curtain (R.S.)
7	Curtain (L.S.)
8	Escutcheon
9	Insulation, Side
10	Insulation, Top
11	Knob, Control (2)
12	Seal, Strip
13	Spacer, Escutcheon Plate (3)
14	WP854334 Whirlpool Air Conditioner Sealing Strip
15	Bracket
16	Screw, Wood 8-15 x .750
17	Link, Louver (2)
18	Louver, Vertical
19	Handle, Louver
20	Detent Spring (2)
22	Cover, Hole
23	Screw, 8-18 x 3/8
24	Seal, Vertical Louver
25	Seal
27	Filter
28	Clip, Vertical Louver
29	212643 Whirlpool Refrigerator Permagum Sealer
30	Bag, Accessory
