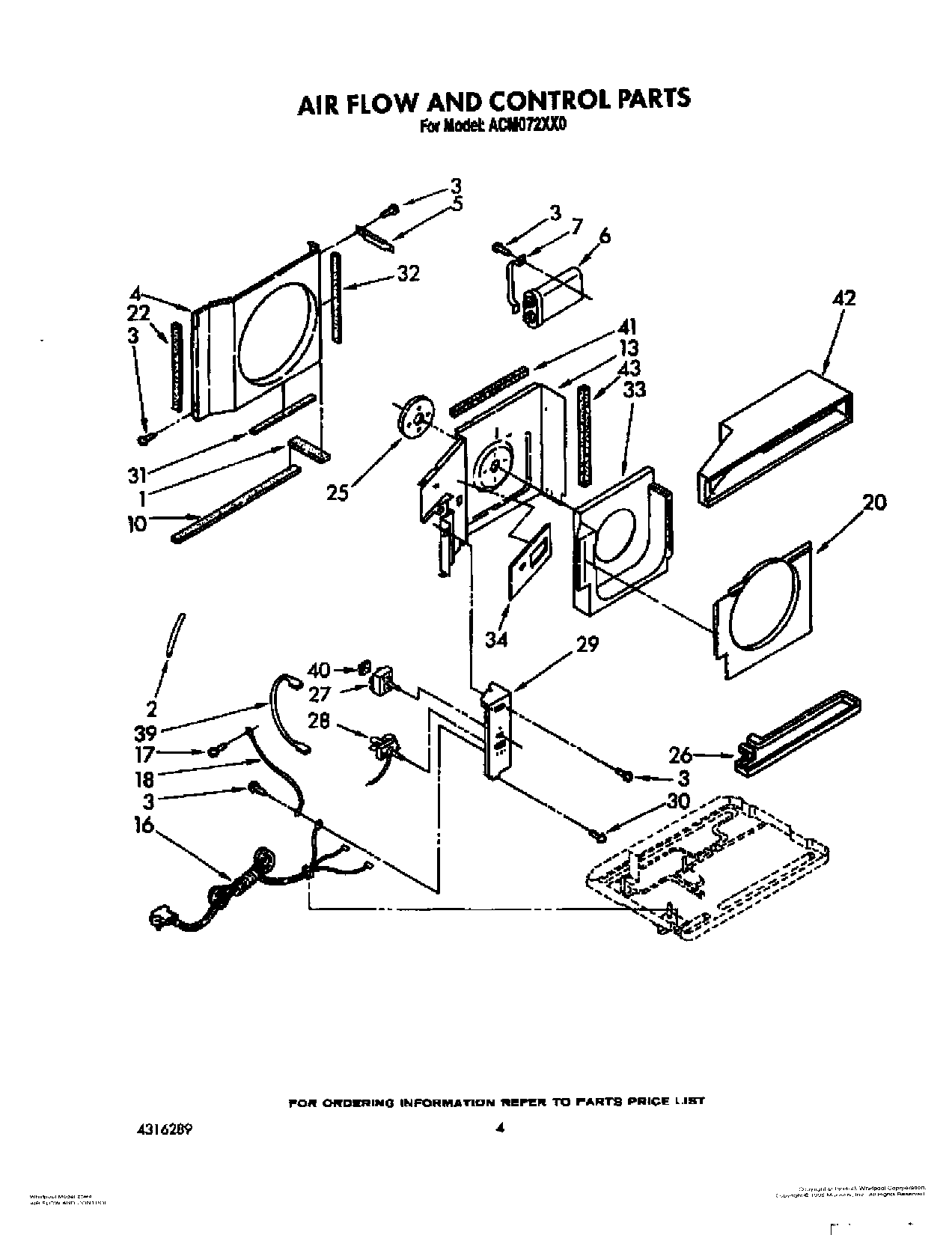

ACM072XX0 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	Seal, Condensate
2	Sealer, Tube
3	Screw 8-18 x .295
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
10	Seal
13	Wall, Dividing
16	Cord, Appliance
17	Screw, 8 x 3/8
18	Wire, Ground
20	Shroud, Evaporator
25	Insulation, Motor
26	Pan, Evaporator
27	Switch, Rotary
28	Control, Temperature
29	Panel, Control
30	Screw, 6-32 x .175
32	Seal, Condenser (R.S.)
33	Housing, Air
34	Insulation, Control Panel
39	Wire, Jumper
40	Seal, Switch
41	WP854334 Whirlpool Air Conditioner Sealing Strip
42	Hood, Air Housing
