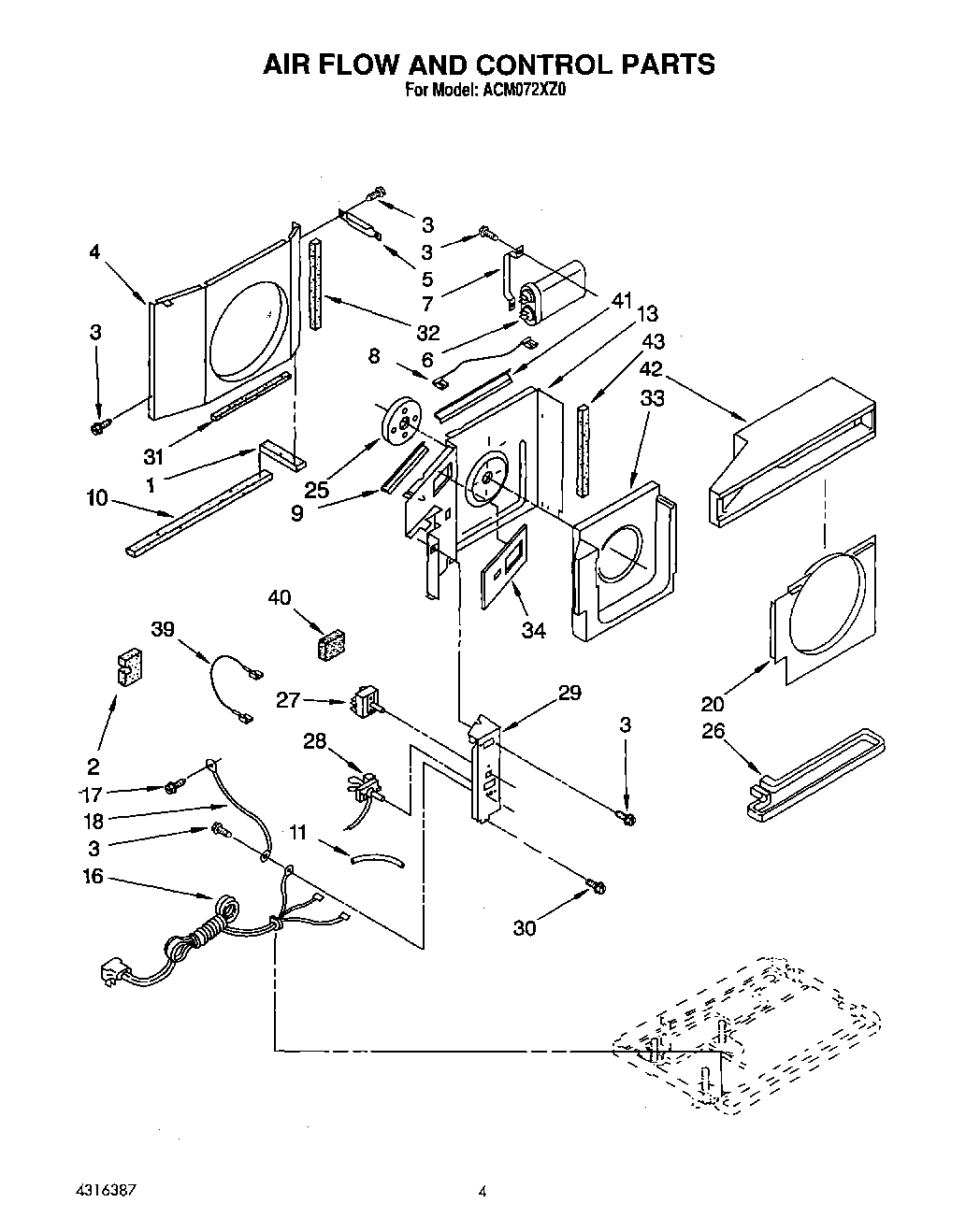

ACM072XZ0 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	Seal, Condensate
2	Sealer, Tube
3	Screw 8-18 x .295
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Wire, Lead
9	Guard, Edge Seal
10	Seal
11	Sleeve, Insulator Temp. Control
13	Wall, Dividing
16	Cord, Appliance
17	Screw, 8 x 3/8
18	Wire, Ground
20	Shroud, Evaporator
25	Insulation, Motor
26	Pan, Evaporator
27	Switch, Rotary
28	Control, Temperature
29	Panel, Control
30	Screw, 6-32 x .175
32	Seal, Condenser (R.S.)
33	Housing, Air
34	Insulation, Control Panel
39	Wire, Jumper
40	Sealer, Tube
41	Guard, Edge Seal
42	Hood, Air Housing
43	WP854334 Whirlpool Air Conditioner Sealing Strip
