ACM082XJ0 01 – UNIT, LITERATURE

ACM082XJ0 01 – UNIT, LITERATURE

Written by

in

ACM082XJ0 01 – UNIT, LITERATURE

Products

PositionProduct

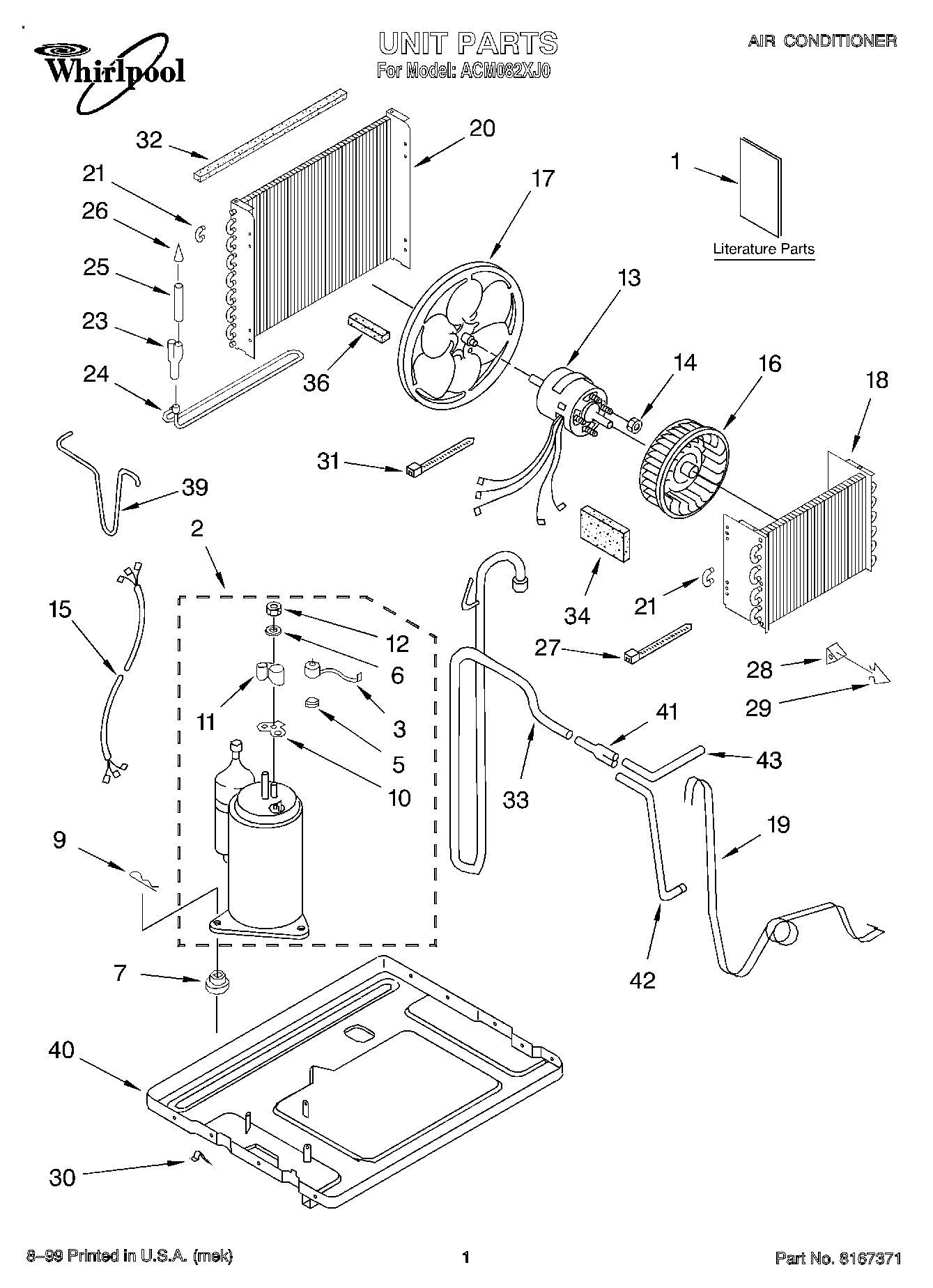

1LITERATURE PARTS (Wiring Diagram)
1LITERATURE PARTS (Use & Care Guide)
24317916 Whirlpool Air Conditioner Compressor
3WP1161170 Whirlpool Air Conditioner Overload
5Spring, Overload
6Gasket, Nut
7Grommet
9Clip, Compressor
10WP950035 Whirlpool Cover Gasket
11WP950036 Whirlpool Cover Assembly
12WP950027 Whirlpool Mounting Nut
13Motor, Fan
14WP488130 Whirlpool Air Conditioner Nut
15Harness, Wiring (Compressor)
16Wheel, Blower
17Blade, Fan (Condenser)
18Evaporator
19Tube, Restrictor
20Condenser
21Bend, Return Evaporator (4) Condenser (4)
23Tube, Flow Divider
24Tube, Wet Loop
25Tube, Outlet (Includes No. 26)
26Strainer
27WPW10339879 Whirlpool Wire Tie
28Anticipator, Temperature
29Clip, Anticipator
30Clamp (2)
33Tube, Suction (Includes 41, 42, and 43)
34Insulation, Suction Tube
36WP854334 Whirlpool Air Conditioner Sealing Strip
39Tube, Discharge
40Base
41Tube, Flow Divider
42Tube, Outlet (Bottom)
43Tube, Outlet (Top)
