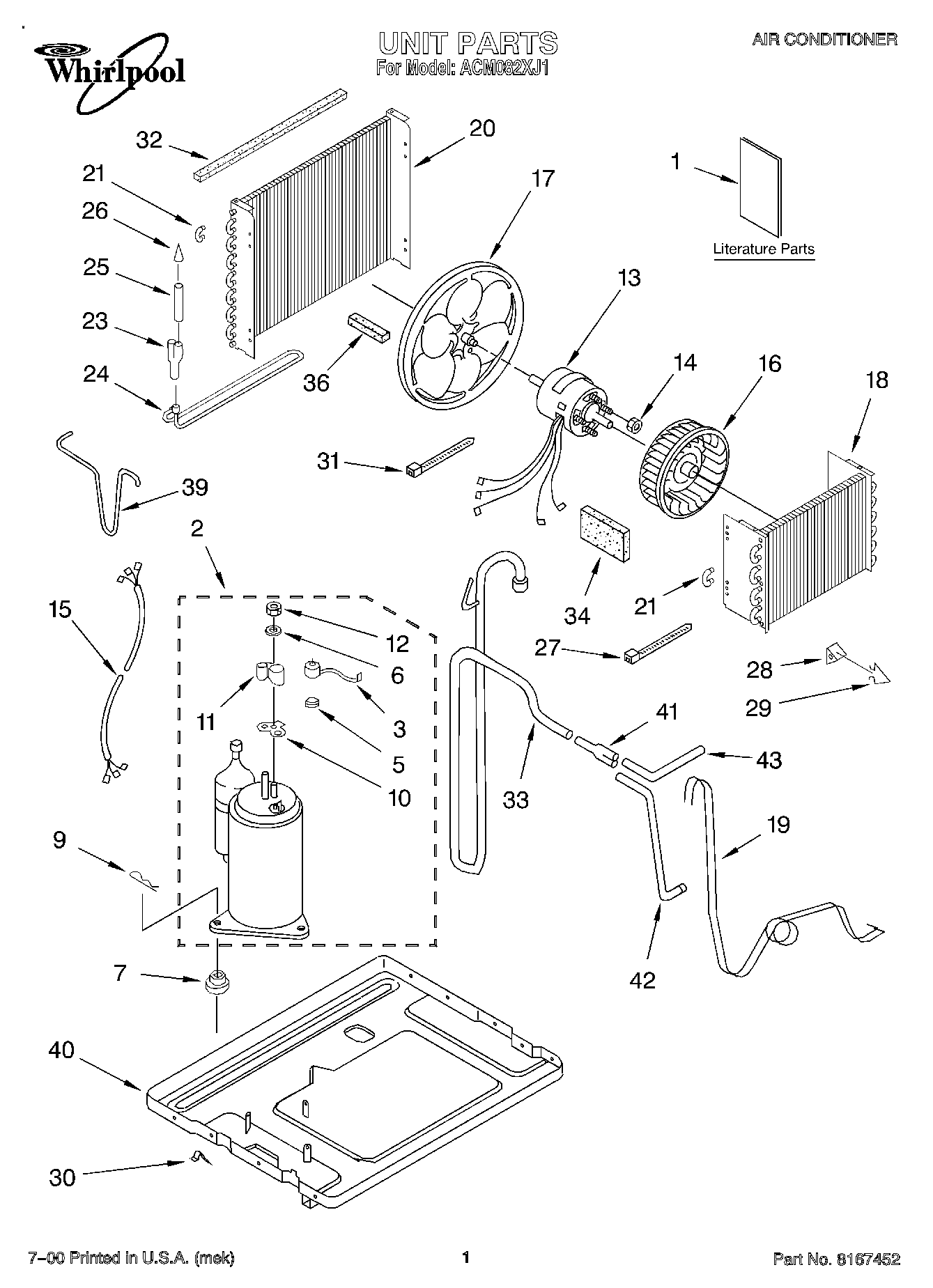

ACM082XJ1 01 – UNIT, LITERATUREadmin2025-04-26T10:51:45+00:00ACM082XJ1 01 – UNIT, LITERATURE
Products
| Position | Product |
|---|
| 1 | LITERATURE PARTS (Use & Care Guide) |
| 1 | LITERATURE PARTS (Wiring Diagram) |
| 1 | Energy Hangtag |
| 2 | 4317916 Whirlpool Air Conditioner Compressor |
| 3 | Overload |
| 5 | Spring, Overload |
| 6 | Gasket |
| 7 | Grommet |
| 9 | Clip, Compressor |
| 10 | Gasket, Terminal Cover |
| 11 | WP950036 Whirlpool Cover Assembly |
| 12 | WP950027 Whirlpool Mounting Nut |
| 13 | Motor, Fan |
| 14 | WP488130 Whirlpool Air Conditioner Nut |
| 15 | Harness, Wiring (Compressor) |
| 16 | Wheel, Blower |
| 17 | Blade, Fan (Condenser) |
| 18 | Evaporator |
| 19 | Tube, Restrictor |
| 20 | Condenser |
| 21 | Bend, Return Evaporator (4) Condenser (4) |
| 23 | Tube, Flow Divider |
| 24 | Tube, Wet Loop |
| 25 | Tube, Outlet (Includes No. 26) |
| 26 | Strainer |
| 27 | WPW10339879 Whirlpool Wire Tie |
| 28 | Anticipator, Temperature |
| 29 | Clip, Anticipator |
| 30 | Clamp (2) |
| 32 | Seal |
| 33 | Tube, Suction (Includes 41, 42, and 43) |
| 34 | Insulation, Suction Tube |
| 36 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 39 | Tube, Discharge |
| 40 | Base |
| 41 | Tube, Flow Divider |
| 42 | Tube, Outlet (Bottom) |
| 43 | Tube, Outlet (Top) |
