ACM082XK1 01 – UNIT, LITERATURE

ACM082XK1 01 – UNIT, LITERATURE

Written by

in

ACM082XK1 01 – UNIT, LITERATURE

Products

PositionProduct
1Energy Guide
1Use & Care Guide

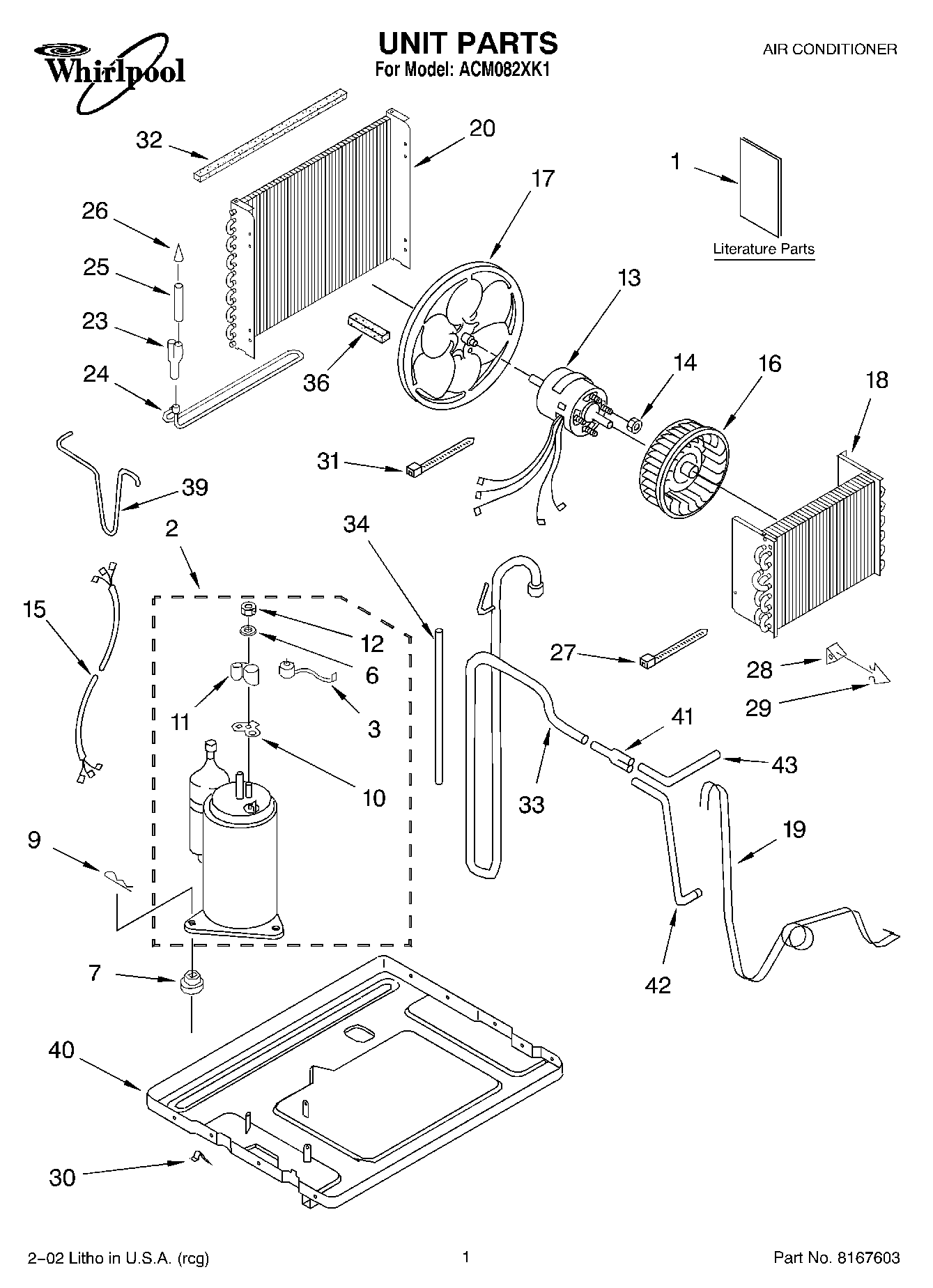

1LITERATURE PARTS (Wiring Diagram)
2Compressor
3WP1186661 Whirlpool Air Conditioner Overload Relay
6Gasket
7Grommet
9Clip, Compressor
10Gasket, Terminal Cover
11Cover, Terminal
12W10833054 Whirlpool Air Conditioner Mounting Nut
13Motor, Fan
14WP488130 Whirlpool Air Conditioner Nut
15Harness, Wiring (Compressor)
16Wheel, Blower
17Blade, Fan (Condenser)
18Evaporator
19Tube, Restrictor
20Condenser
23Tube, Flow Divider
24Tube, Wet Loop
25Tube, Outlet (Includes No. 26)
26Strainer
27WPW10339879 Whirlpool Wire Tie
28Anticipator, Temperature
29Clip, Anticipator
30Clamp (2)
32Seal
33Tube, Suction
34Seal, Suction Tube Suction Tube
36WP854334 Whirlpool Air Conditioner Sealing Strip
39Tube, Discharge
40Base
41Tube, Flow Divider
42Tube, Outlet (Bottom)
43Tube, Outlet (Top)
