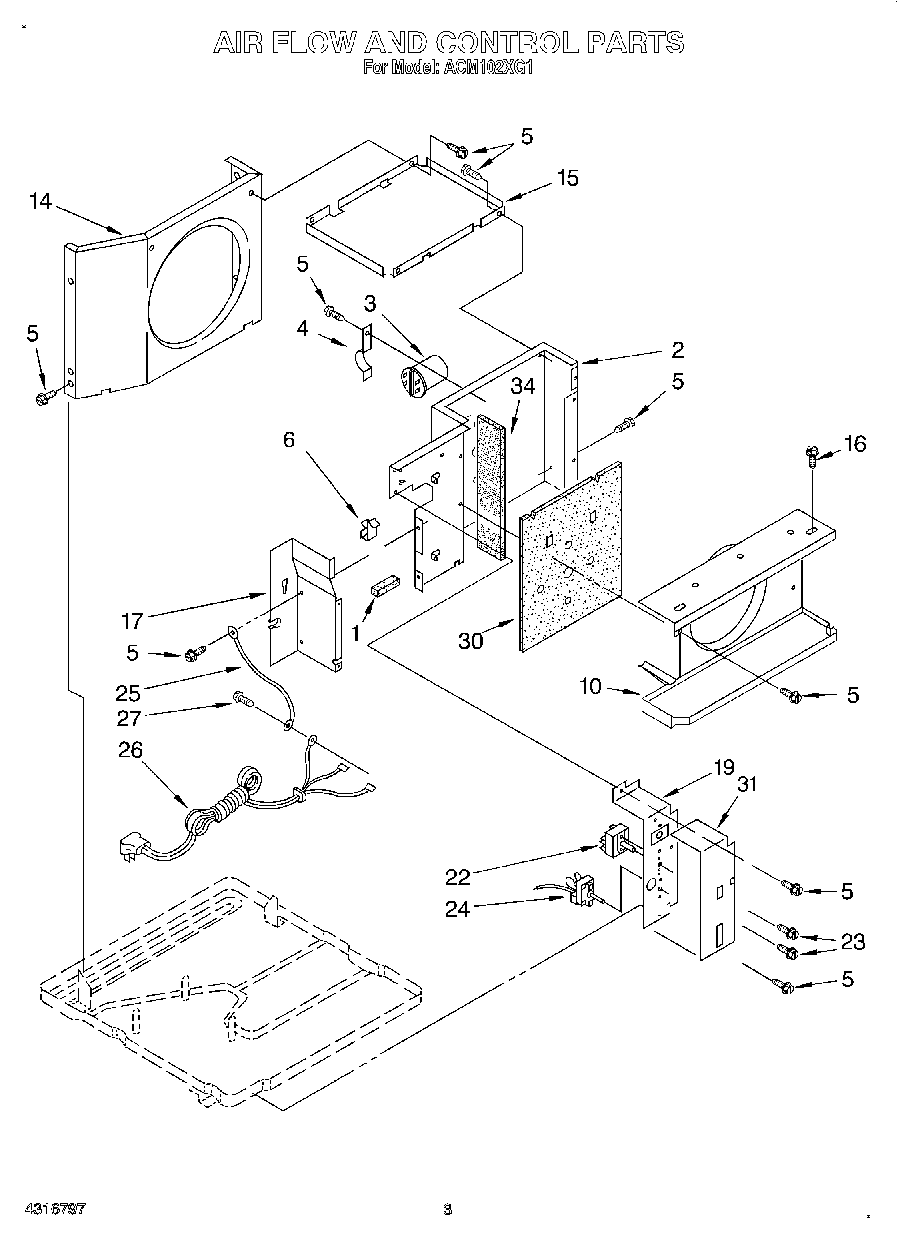

ACM102XG1 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	Seal, Anti-Rub
2	Wall, Dividing
3	Capacitor, Running
4	Bracket, Capacitor
5	WP489069 Whirlpool Compactor Screw
6	Clamp, Wiring
10	Shroud, Evaporator
14	Shroud, Condenser
15	Support, Unit
16	WP488729 Whirlpool Refrigerator Door Screw
17	Extension, Dividing Wall
19	Panel, Control
22	Switch, Rotary
23	Screw, 6-32 x .175
24	Thermostat
25	Wire, Ground
26	Cable, Appliance
27	WPW10141604 Whirlpool Screw
30	Insulation (Back, Dividing Wall)
31	Insulation, Panel Control
34	Insulation (Side, Dividing Wall)
