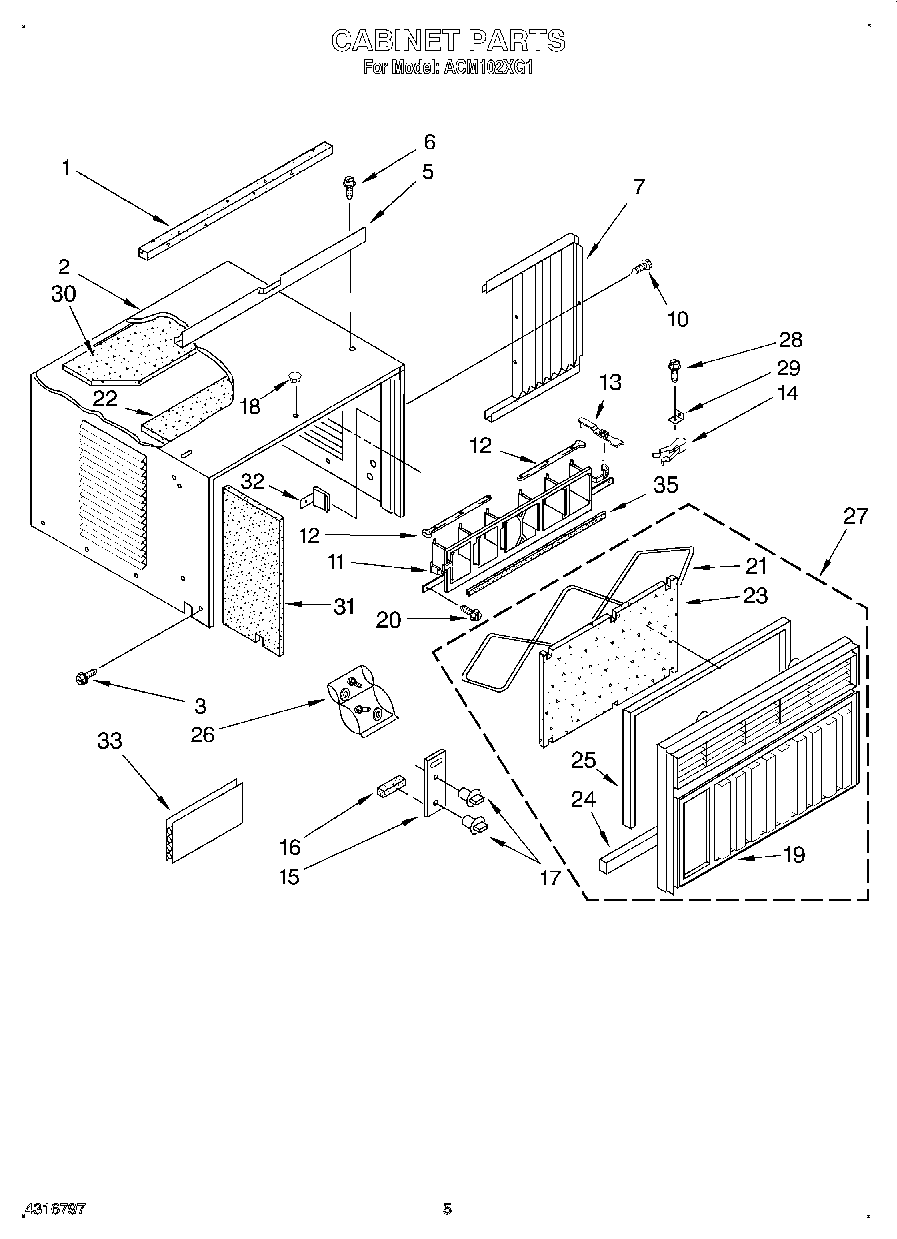

ACM102XG1 03 – CABINET

Products

Position	Product
1	Gasket, Meeting Rail
2	Cabinet
3	WP489069 Whirlpool Compactor Screw
5	Channel, Top
6	WP308685 Whirlpool Microwave Screw
7	Housing, Curtain R.S.(Includes No.8)
7	Housing, Curtain L.S. (Includes No.8)
10	Screw, 8-18 x 3/8
11	Louver, Vertical
12	Link, Vertical Louver (2)
13	Handle, Vertical Louver (2)
14	Spring, Detent (2)
15	Plate, Escutcheon
16	Spacer, Escutcheon Plate (3)
17	Knob, Control (2)
18	Cover, Hole
19	Front, Cabinet
20	Screw 8-18 x .295
21	Retainer, Filter
22	Insul. Cabinet Top
23	Filter
24	Seal, Front
25	Seal, Top & Sides
26	Bag, Accessory
27	Front, Complete
28	Screw, Wood 8-15 x .750
29	Bracket
30	Insul. Cabinet
31	Insul. Cabinet (Left Side)
31	Insul. Cabinet (Right, Side)
32	Clip, Vertical Louver
33	212643 Whirlpool Refrigerator Permagum Sealer
35	Seal, Vertical Louver
