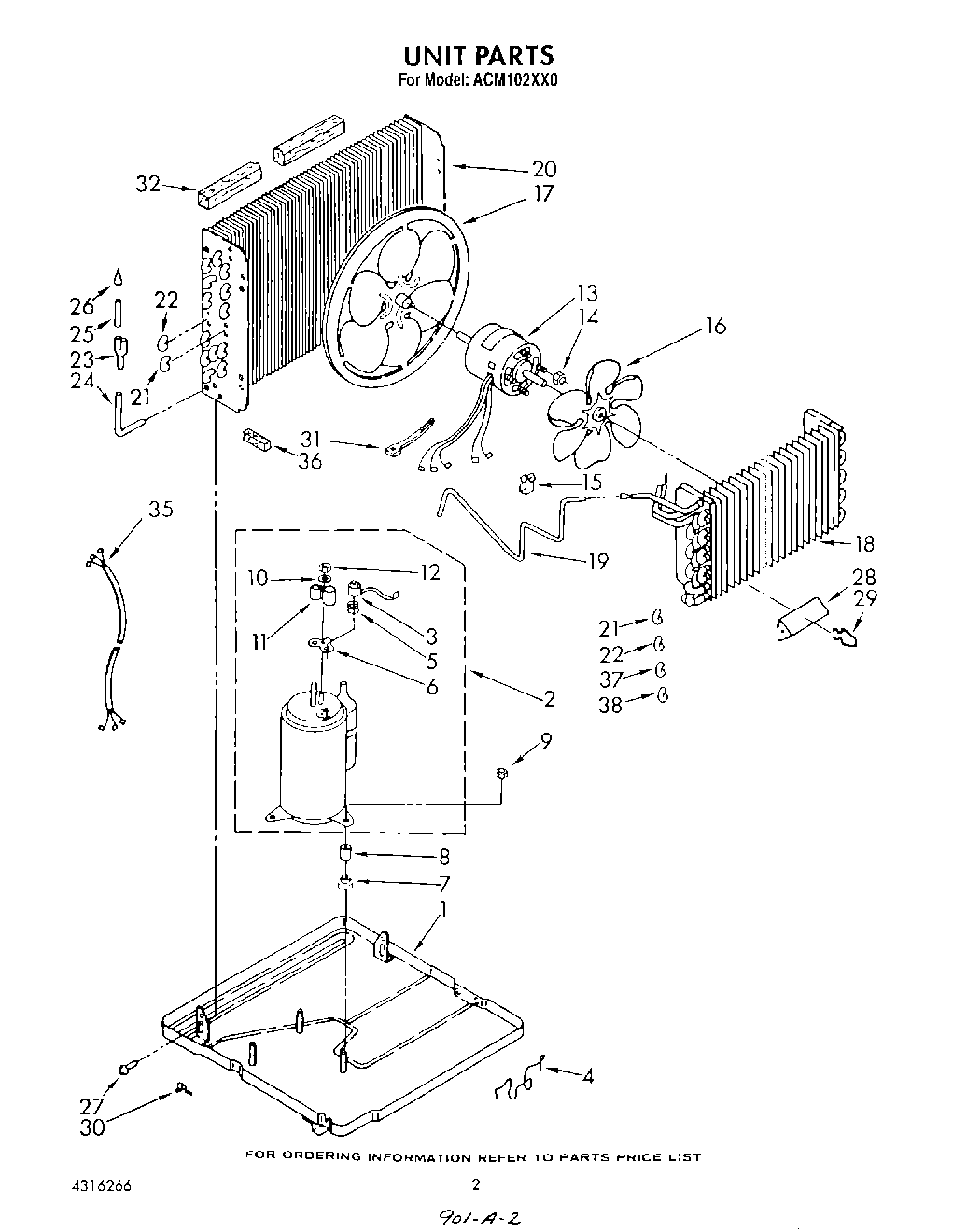

ACM102XX0 02 – UNIT

Products

Position	Product
	Sheet, Tech
	List, Repair Parts
	Label, Buy Guide
	Installation, Instructions
1	Base
2	Compressor
3	Overload
4	Clip, Mtg. (2) (Base to Front)
5	Spring, Overload
6	WP950035 Whirlpool Cover Gasket
7	WP950021 Whirlpool Grommet
8	Sleeve (3)
9	Locknut (3)
10	Gasket, Nut
11	WP950036 Whirlpool Cover Assembly
12	WP950027 Whirlpool Mounting Nut
13	Motor, Fan
14	WP488130 Whirlpool Air Conditioner Nut
15	Clamp, Wiring
16	Blade, Fan (Evaporator)
17	Blade, Condenser Fan
18	Evaporator
19	Tube, Restrictor
20	Condenser
21	Bend, Return Condenser (4)
22	Bend, Return Condenser (10)
23	Tube, Flow Divider
24	Tube, Connecting
25	Tube, Outlet (Includes Illus. 24)
26	Strainer
27	WP489069 Whirlpool Compactor Screw
28	Anticipator, Temperature
29	Clip, Anticipator
30	Clamp, Tube
31	WPW10339879 Whirlpool Wire Tie
32	Seal, Condenser Top
35	Harness, Wiring
36	WP854334 Whirlpool Air Conditioner Sealing Strip
37	Bend, Return Condenser (1)
38	Bend Return
