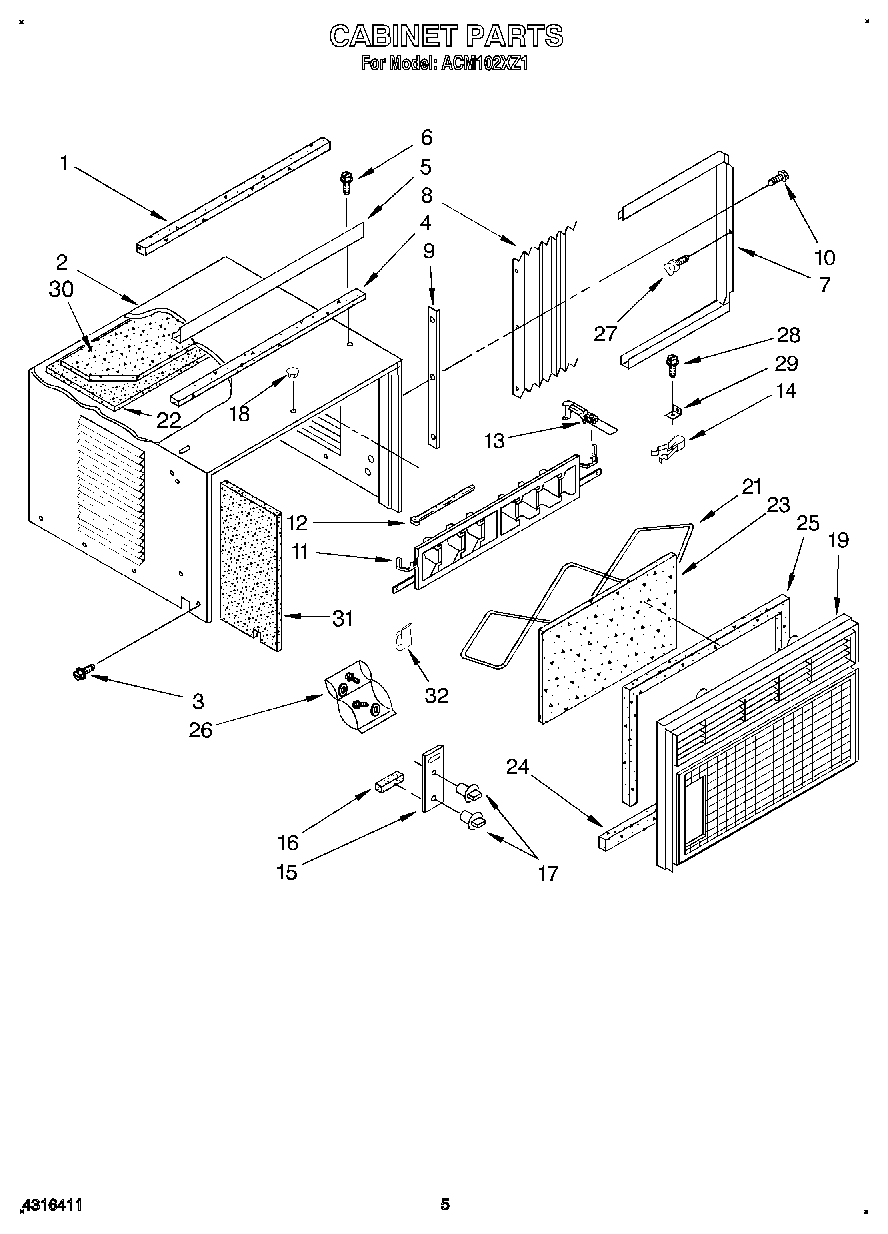

ACM102XZ1 03 – CABINET

Products

PositionProduct
1Gasket, Meeting Rail
2Cabinet
3WP489069 Whirlpool Compactor Screw
4Strip, Seal
5Channel, Top Mounting
6WP308685 Whirlpool Microwave Screw
7Housing, Curtain R.S.(Includes No.8)
7Housing, Curtain L.S. (Includes No.8)
8Curtain (2)
9Retainer, Curtain
10Screw, 8-18 x 3/8
11Louver, Vertical
12Link, Louver
13Handle, Vertical Louver
14Detent Spring (2)
15Plate, Escutcheon
16Spacer, Escutcheon Plate (3)
17Knob, Control (2)
18Cover, Hole
19Front, Cabinet (For Single Handle Louver Assembly)
21Retainer, Filter
22Insul. Cabinet Top
23Filter, Air
24Seal, Cabinet Front
25Seal, Strip (Top & Sides)
26Bag, Accessory
27Thumbscrew (2)
28Screw, Wood 8-15 x .750
29Bracket
30Insul. Cabinet
31Insul. Cabinet (Right, Side)
31Insul. Cabinet (Left Side)
32Clip
