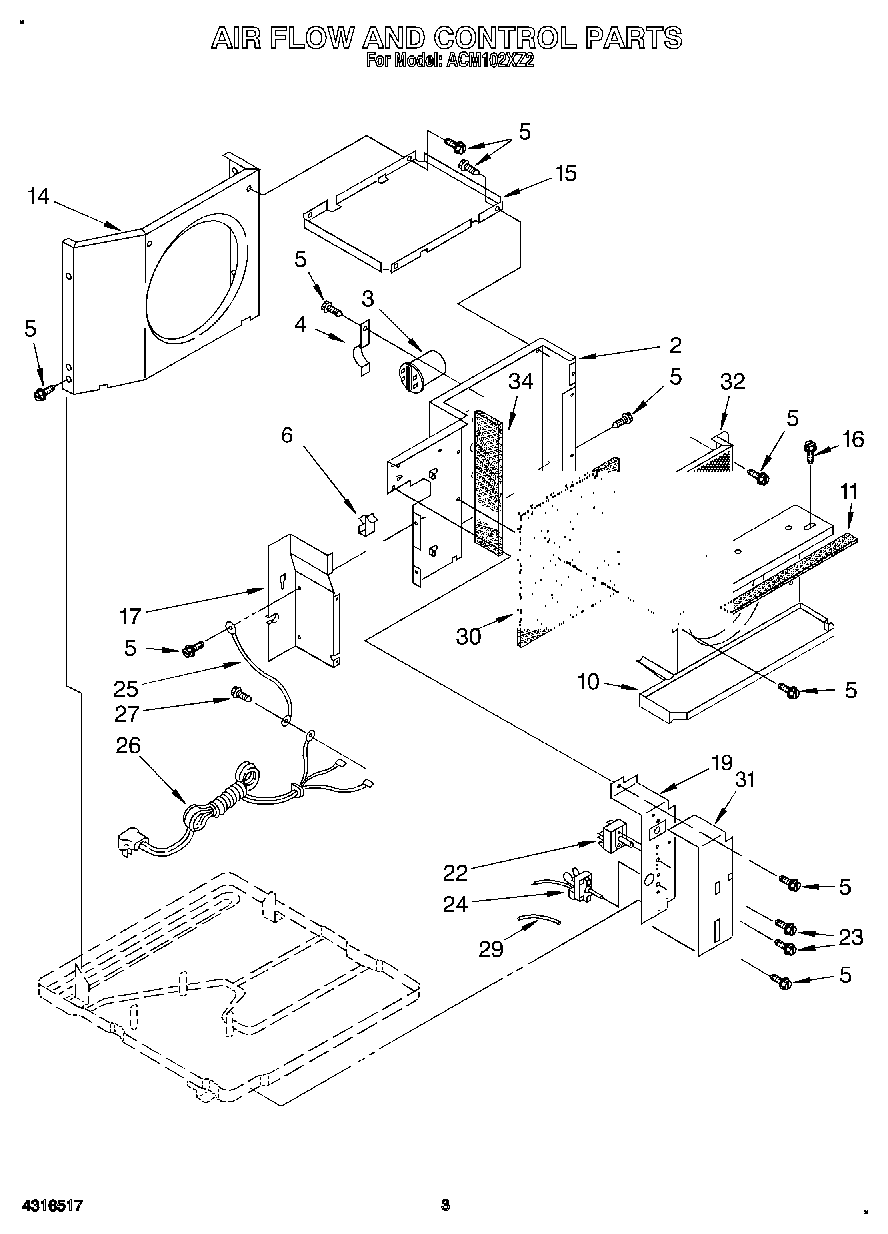

ACM102XZ2 02 – AIR FLOW AND CONTROL

Products

PositionProduct
2Wall, Dividing
3CAPACITOR
4Bracket, Capacitor
5WP489069 Whirlpool Compactor Screw
6Clamp, Wiring
10Shro\ud,\ Evaporator (Includes Item 11)
11Insulation, Evaporator Shroud
14Shroud, Condenser
15Support, Unit
16WP488729 Whirlpool Refrigerator Door Screw
17Extension, Dividing Wall
19Panel, Control
22Switch, Rotary
23Screw, 6-32 x .175
24Thermostat
25Wire, Ground
26Cable, Appliance
27WPW10141604 Whirlpool Screw
29Insulation, Sleeve
30Insulation (Back, Dividing Wall)
31Insulation, Panel Control
32Guard, Evaporator Impeller
34Insulation (Side, Dividing Wall)
