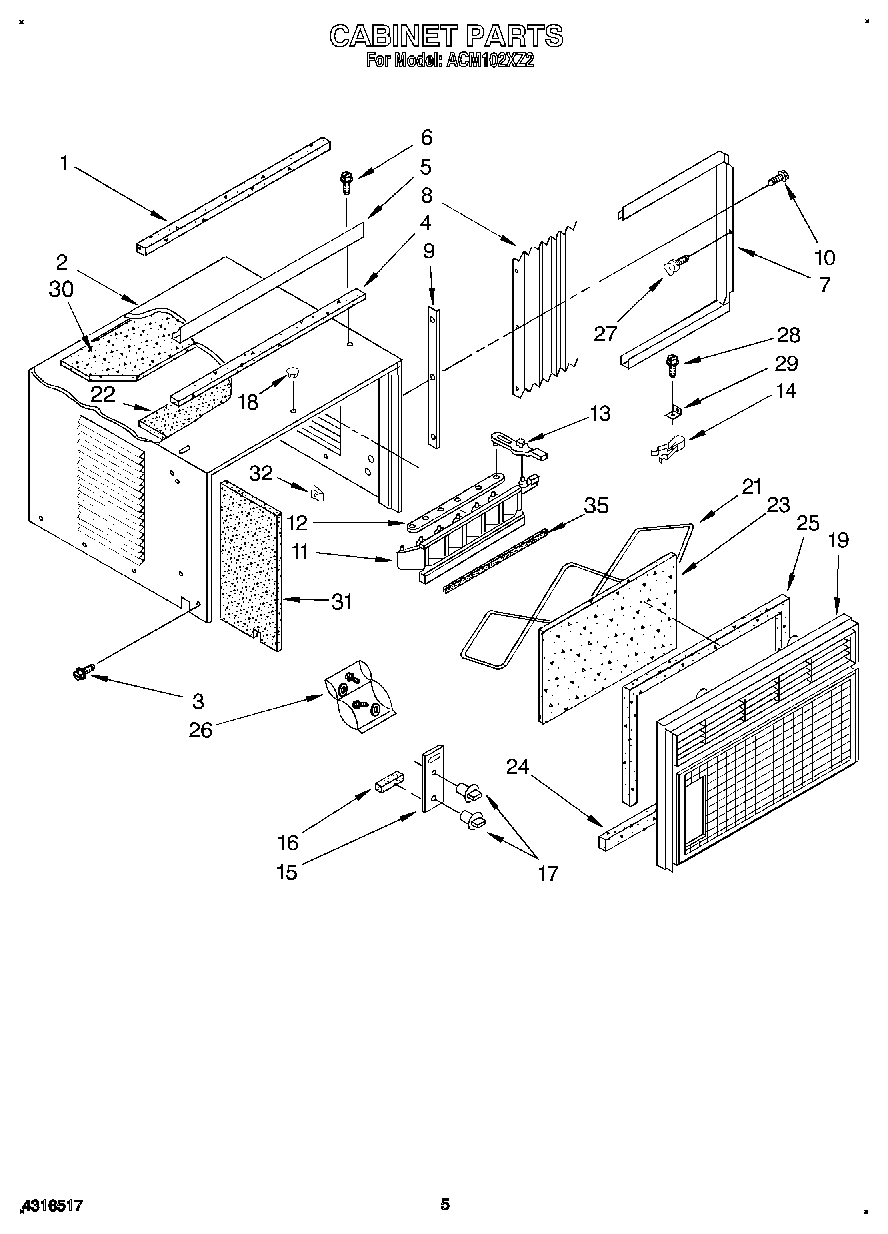

ACM102XZ2 03 – CABINET

Written by

Products

Position	Product
1	Gasket, Meeting Rail
2	Cabinet
3	WP489069 Whirlpool Compactor Screw
4	Strip, Seal
5	Channel, Top Mounting
6	WP308685 Whirlpool Microwave Screw
7	Housing, Curtain L.S. (Includes No.8)
7	Housing, Curtain R.S.(Includes No.8)
8	Curtain (2)
9	Retainer, Curtain
10	Screw, 8-18 x 3/8
11	Louver, Vertical
11	Louver, Vertical
12	Link, Vertical Louver (2)
12	Link, Louver
13	Handle, Vertical Louver (2)
13	Handle, Vertical Louver
14	Spring, Detent (2)
14	Detent Spring (2)
15	Plate, Escutcheon
16	Spacer, Escutcheon Plate (3)
17	Knob, Control (2)
18	Cover, Hole
19	Front, Cabinet (For Single Handle Louver Assembly)
19	Front, Cabinet
21	Retainer, Filter
22	Insul. Cabinet Top
23	Filter, Air
24	Seal, Cabinet Front
25	Seal, Strip (Top & Sides)
26	Bag, Accessory
27	Thumbscrew (2)
28	Screw, Wood 8-15 x .750
29	Bracket
30	Insul. Cabinet
31	Insul. Cabinet (Right, Side)
31	Insul. Cabinet (Left Side)
32	Clip
32	Clip, Vertical Louver
35	Seal, Vertical Louver
