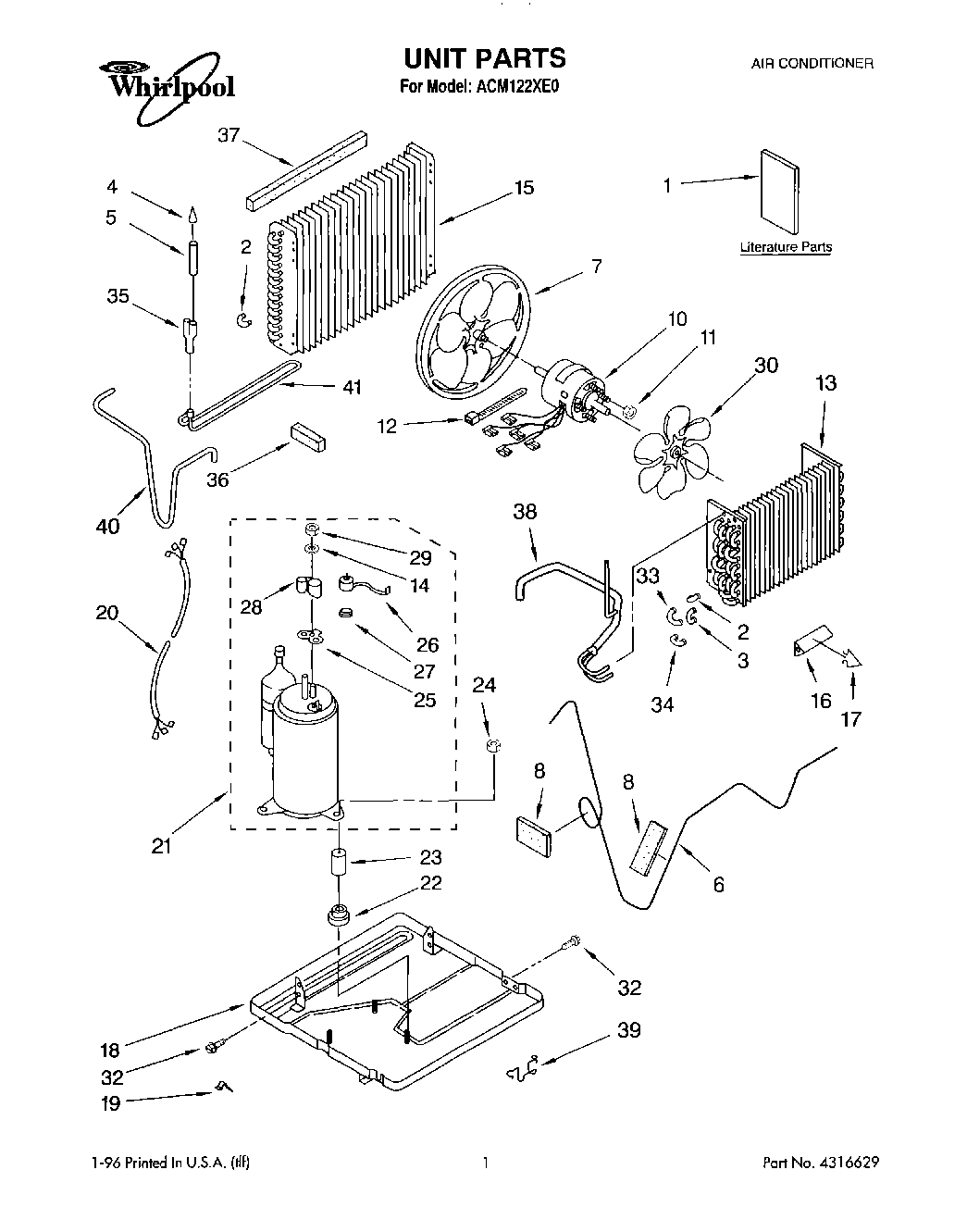

ACM122XE0 01 – UNIT, LITERATURE

Products

Position	Product
1	Instructions, Installation
1	Wiring Diagram
1	Sheet, Tech
1	Use & Care Guide
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes No. 26)
6	Tube, Restrictor (2)
7	Blade, Fan (Condenser)
8	Seal, Anti-Rub
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Gasket, Nut
15	Condenser
16	Anticipator
17	Clip, Anticipator
18	Base
19	Clamp, Restrictor Tube
20	Harness, Wiring
21	Compressor
22	WP950021 Whirlpool Grommet
23	Sleeve (3)
24	Locknut (3)
25	WP950035 Whirlpool Cover Gasket
26	Overload (Production)
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Blade, Fan (Evaporator)
32	Screw, Repair
32	WP489069 Whirlpool Compactor Screw
33	Bend, Return Condenser (1)
34	Bend Return
35	Tube, Flow Divider
36	WP854334 Whirlpool Air Conditioner Sealing Strip
37	Seal, Condenser Top
38	Tube, Suction
39	Clip, Mtg. (2) (Base to Front)
40	Tube, Discharge
41	Tube, Condenser Extension
