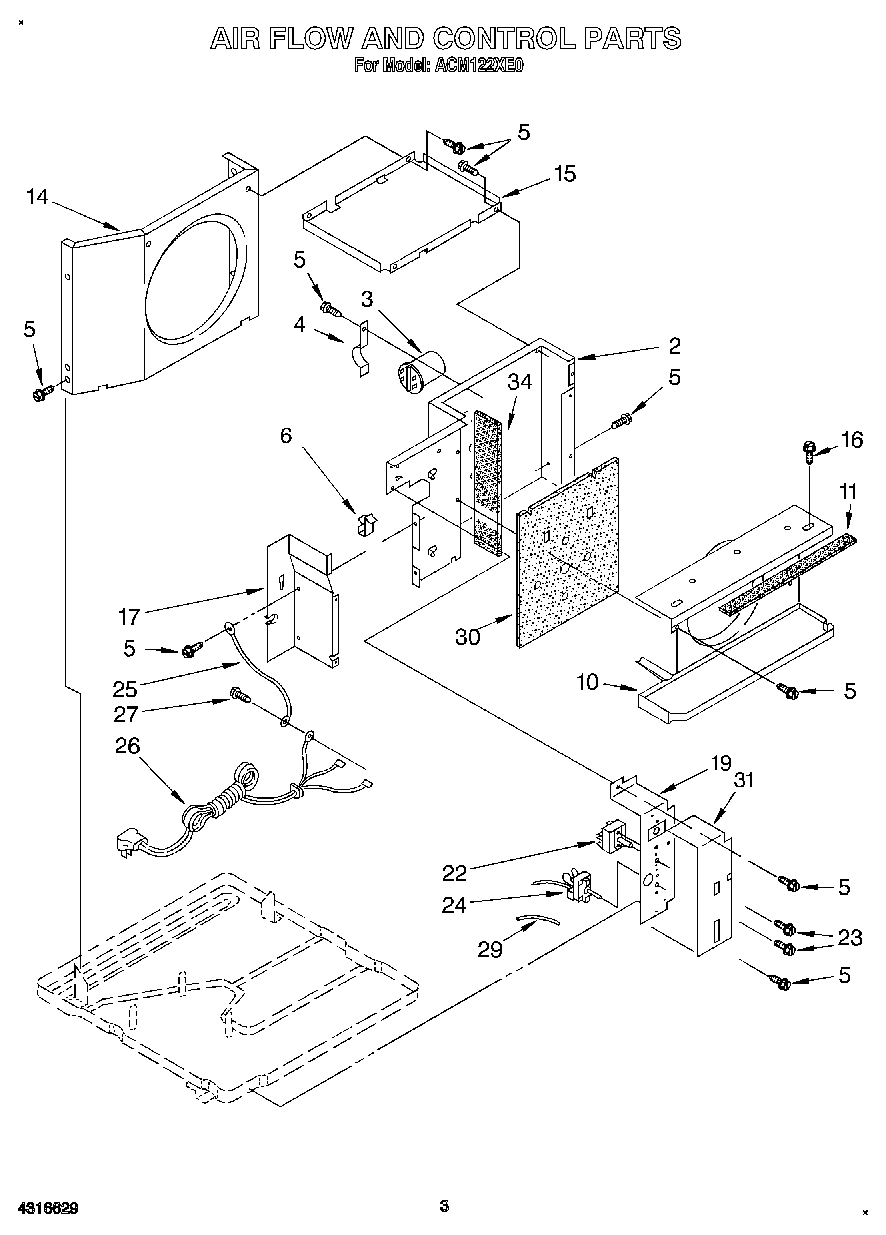

ACM122XE0 02 – AIRFLOW AND CONTROL

Products

Position	Product
2	Wall, Dividing
3	Capacitor, Running
4	Bracket, Capacitor
5	WP489069 Whirlpool Compactor Screw
6	Clamp, Wiring
10	Shro\ud,\ Evaporator (Includes Item 11)
11	Insulation, Evaporator Shroud
14	Shroud, Condenser
15	Support, Unit
16	WP488729 Whirlpool Refrigerator Door Screw
17	Extension, Dividing Wall
19	Panel, Control
22	Switch, Rotary
23	Screw, 6-32 x .175
24	Thermostat
25	Wire, Ground
26	Cable, Appliance
27	WPW10141604 Whirlpool Screw
29	Insulation, Sleeve
30	Insulation (Back, Dividing Wall)
31	Insulation, Panel Control
34	Insulation (Side, Dividing Wall)
