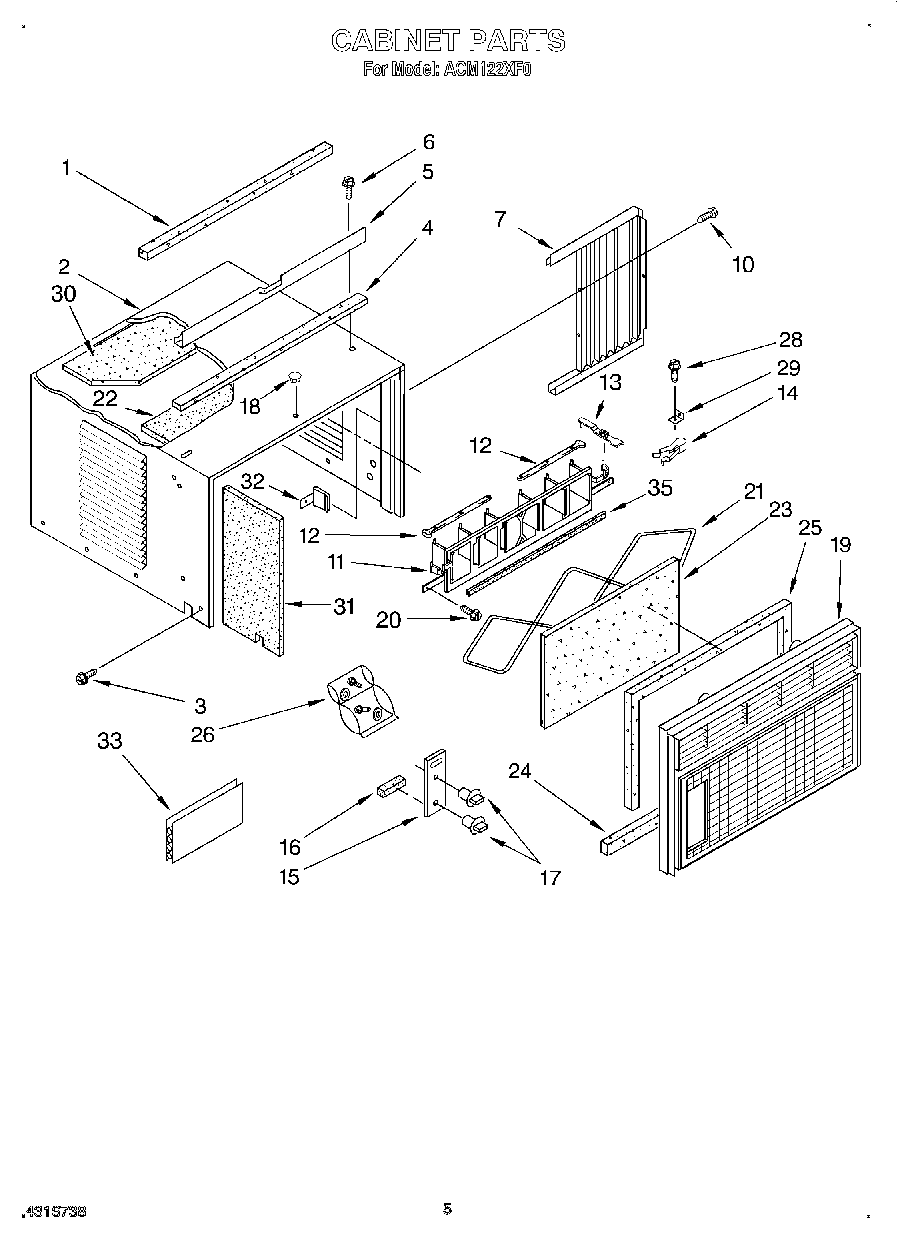

ACM122XF0 03 – CABINET

Products

Position	Product
1	Gasket, Meeting Rail
2	Cabinet
3	WP489069 Whirlpool Compactor Screw
4	Strip, Seal
5	Channel, Top
6	WP308685 Whirlpool Microwave Screw
7	Housing, Curtain L.S. (Includes No.8)
7	Housing, Curtain R.S.(Includes No.8)
10	Screw, 8-18 x 3/8
11	Louver, Vertical (Includes Illus. 12, 13, 14 and 27)
12	Link, Vertical Louver (2)
13	Handle, Vertical Louver (2)
14	Spring, Detent (2)
15	Plate, Escutcheon
16	Spacer, Escutcheon Plate (3)
17	Knob, Control (2)
18	Cover, Hole
19	Front, Cabinet
20	Screw 8-18 x .295
21	Retainer, Filter
22	Insul. Cabinet Top
23	Filter, Air
24	Seal, Cabinet Front
25	Seal, Strip (Top & Sides)
26	Bag, Accessory
28	Screw, Wood 8-15 x .750
29	Bracket
30	Insul. Cabinet
31	Insul. Cabinet (Right, Side)
31	Insul. Cabinet (Left Side)
32	Clip, Vertical Louver
33	212643 Whirlpool Refrigerator Permagum Sealer
35	Seal, Vertical Louver
