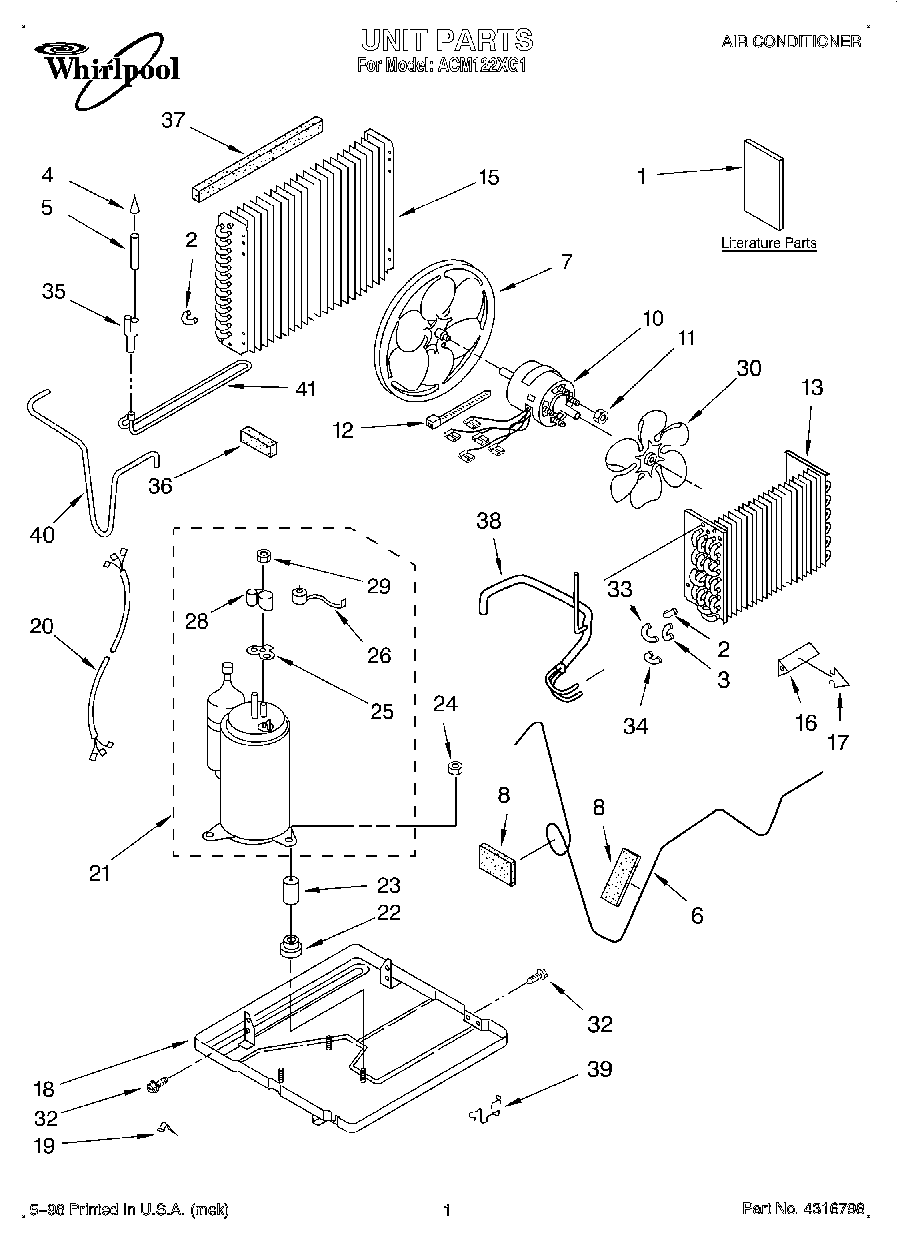

ACM122XG1 01 – UNIT, LITERATURE

ACM122XG1 01 – UNIT, LITERATURE

Written by

in

ACM122XG1 01 – UNIT, LITERATURE

Products

PositionProduct
1Owners Manual
1Wiring Diagram
1Tech Sheet
2Bend, Return Condenser (10)
3Bend, Return Condenser (4)
4Strainer
5Tube, Outlet (Includes No. 26)
6Tube, Restrictor (2)
7Blade, Fan (Condenser)
8Seal, Anti-Rub
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
12WPW10339879 Whirlpool Wire Tie
13Evaporator
15Condenser
16Anticipator
17Clip, Anticipator
18Base
19Clamp, Restrictor Tube
20Harness, Wiring
21Compressor
22WP950021 Whirlpool Grommet
23Sleeve (3)
24Locknut (3)
25Gasket, Terminal Cover
26Overload
28Cover, Terminal
29Nut, Hex
30Blade, Fan (Evaporator)
32WP489069 Whirlpool Compactor Screw
32Screw, Repair
33Bend, Return Condenser (1)
34Bend Return
35Flow, Divider
36WP854334 Whirlpool Air Conditioner Sealing Strip
37Seal, Condenser Top
38Tube, Suction
39Clip, Mtg. (2) (Base to Front)
40Tube, Discharge
41Tube, Wet Loop (Includes Items 23, 25, & 26)
