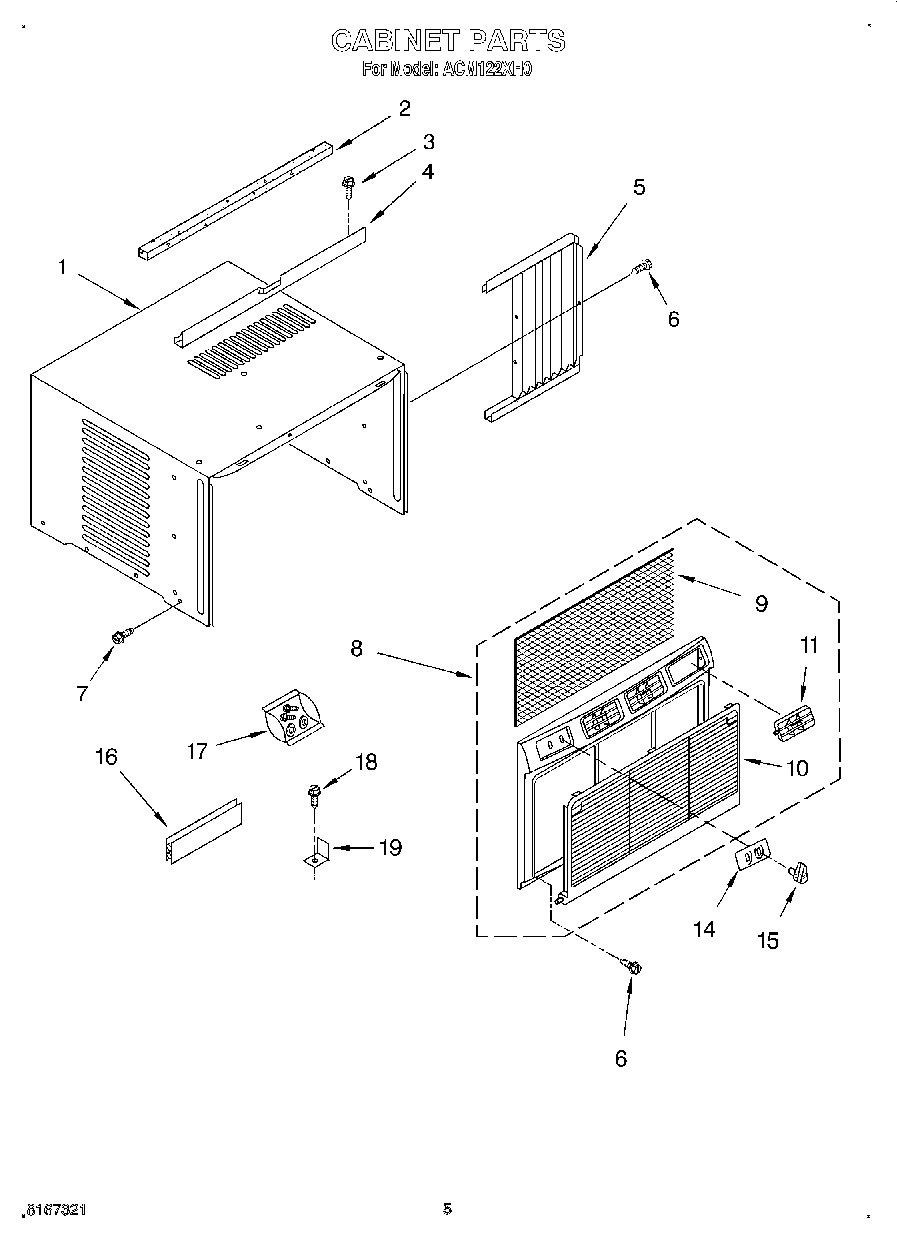

ACM122XH0 03 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	Screw 10-16 x .375
4	Channel, Top
5	Curtain ((Left Side))
5	Curtain ((Right Side))
6	Screw, 8-18 x 3/8
7	WP489069 Whirlpool Compactor Screw
8	Front
9	Filter
10	Grille, Front
11	Louver Assembly
14	Escutcheon
15	WP8031121 Whirlpool Air Conditioner Control Knob
16	212643 Whirlpool Refrigerator Permagum Sealer
17	Bag, Accessory
18	Screw, Wood 8-15 x .750
19	Bracket
