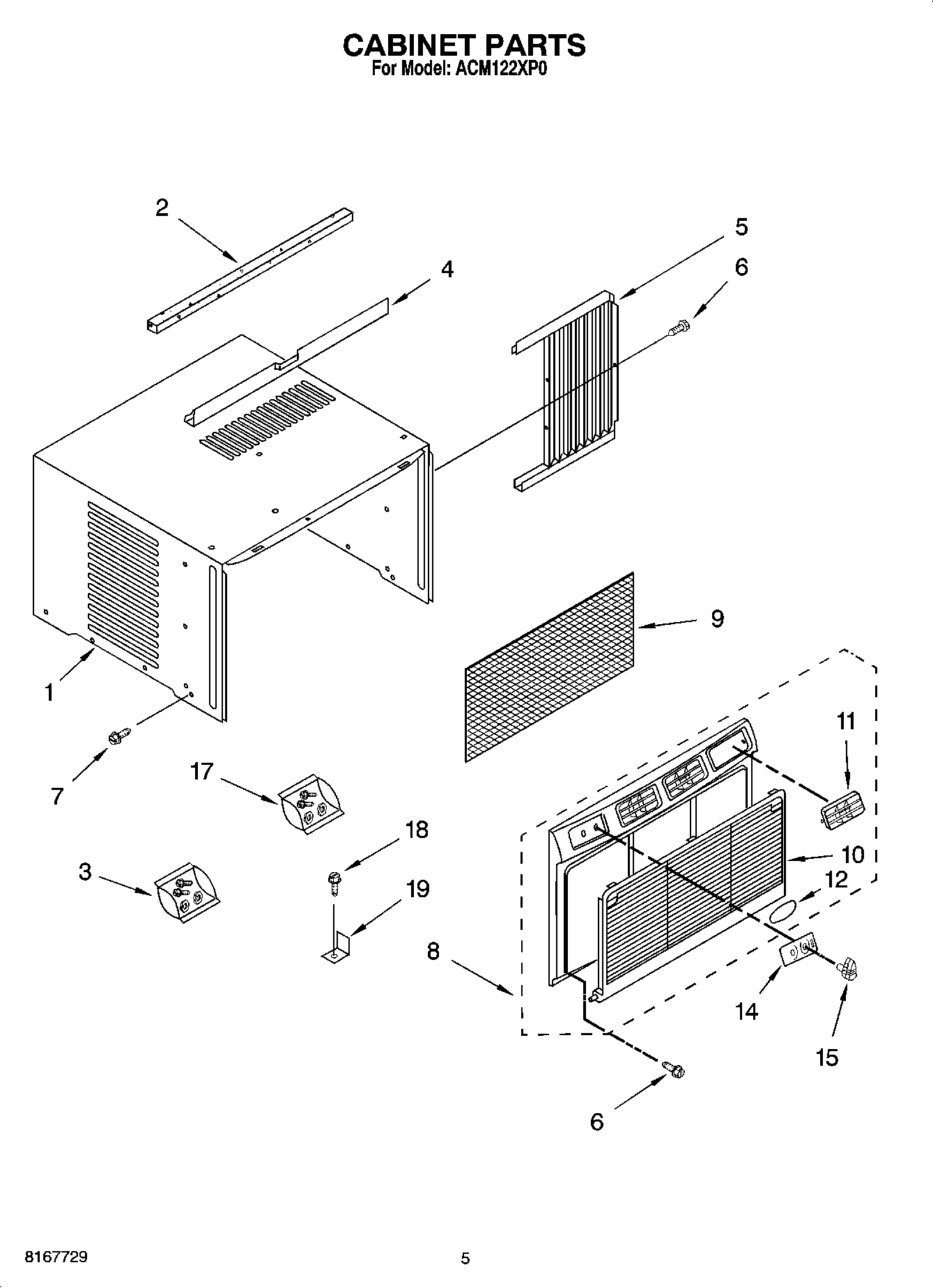

ACM122XP0 03 – CABINET PARTS

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	Bag, Accessory (for Curtains)
4	Channel, Top
5	Curtain ((Left Side))
5	Curtain ((Right Side))
6	W10491985 Whirlpool Screw
7	Screw, 8 x 3/8
8	Front
9	Filter
10	Grille, Front
11	Louver Assembly
12	Nameplate
14	Escutcheon
15	WP8031121 Whirlpool Air Conditioner Control Knob
17	Bag, Accessory
18	Screw, Wood 8-15 x .750
19	Bracket
