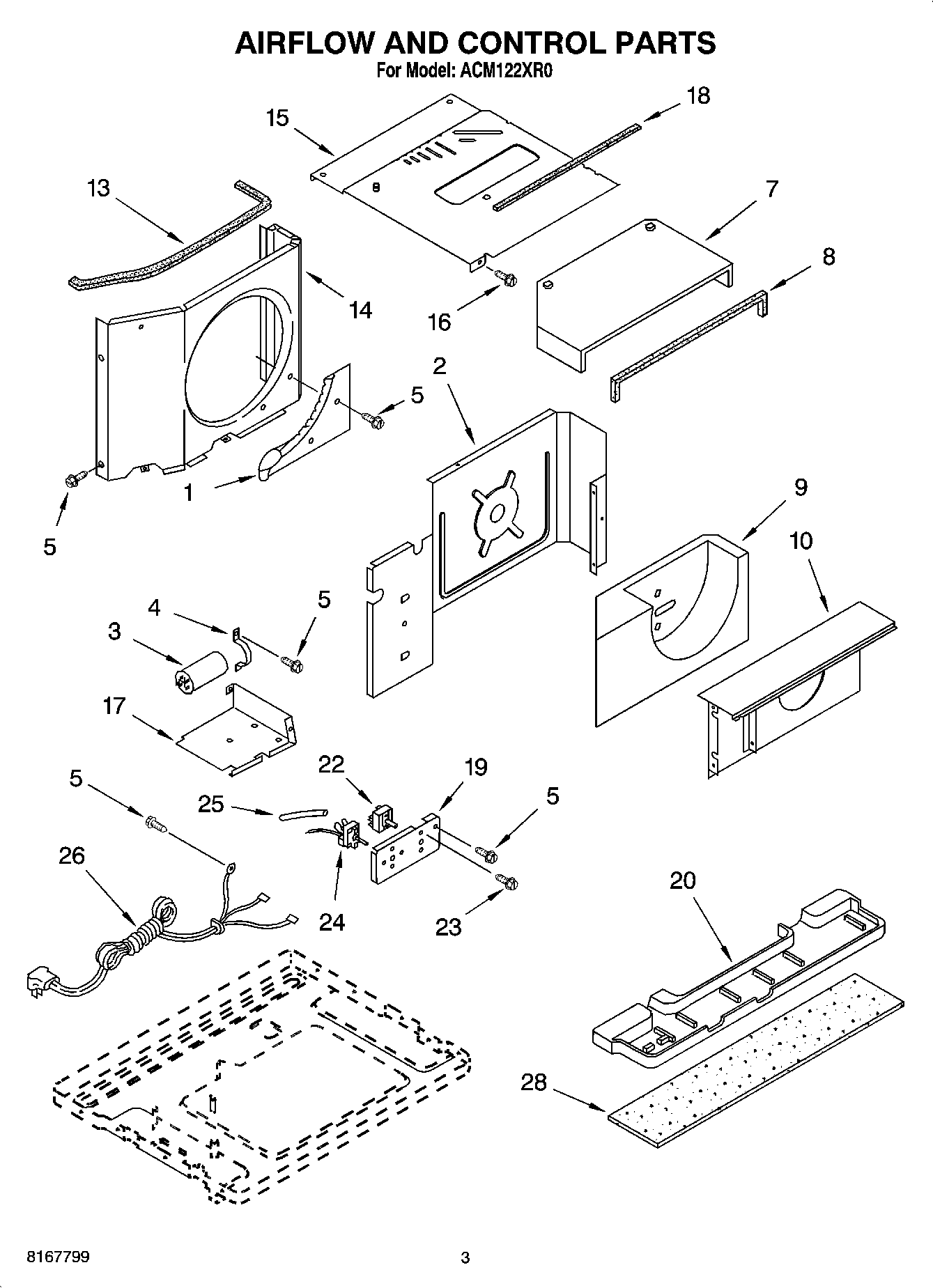

ACM122XR0 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
1	Cup, Condensate
2	Wall, Dividing
3	Capacitor, Running
4	WP1160674 Whirlpool Bracket
5	Screw 8-18 x .295
7	Hood, Air Housing
8	WP854334 Whirlpool Air Conditioner Sealing Strip
9	Housing, Air
10	Shroud, Evaporator
13	Seal, Condenser Shroud
14	Shroud, Condenser
15	Cover, Unit
16	Screw, 8 x 3/8
17	Box, Control
18	Seal, Unit Top
19	Panel, Control
20	Pan, Drain
22	Switch, Rotary
23	Screw, 6-32 x .175
24	Control, Temp.
25	Sleeve, Insulating
26	Cable, Appliance
28	Insulation, Drain Pan
