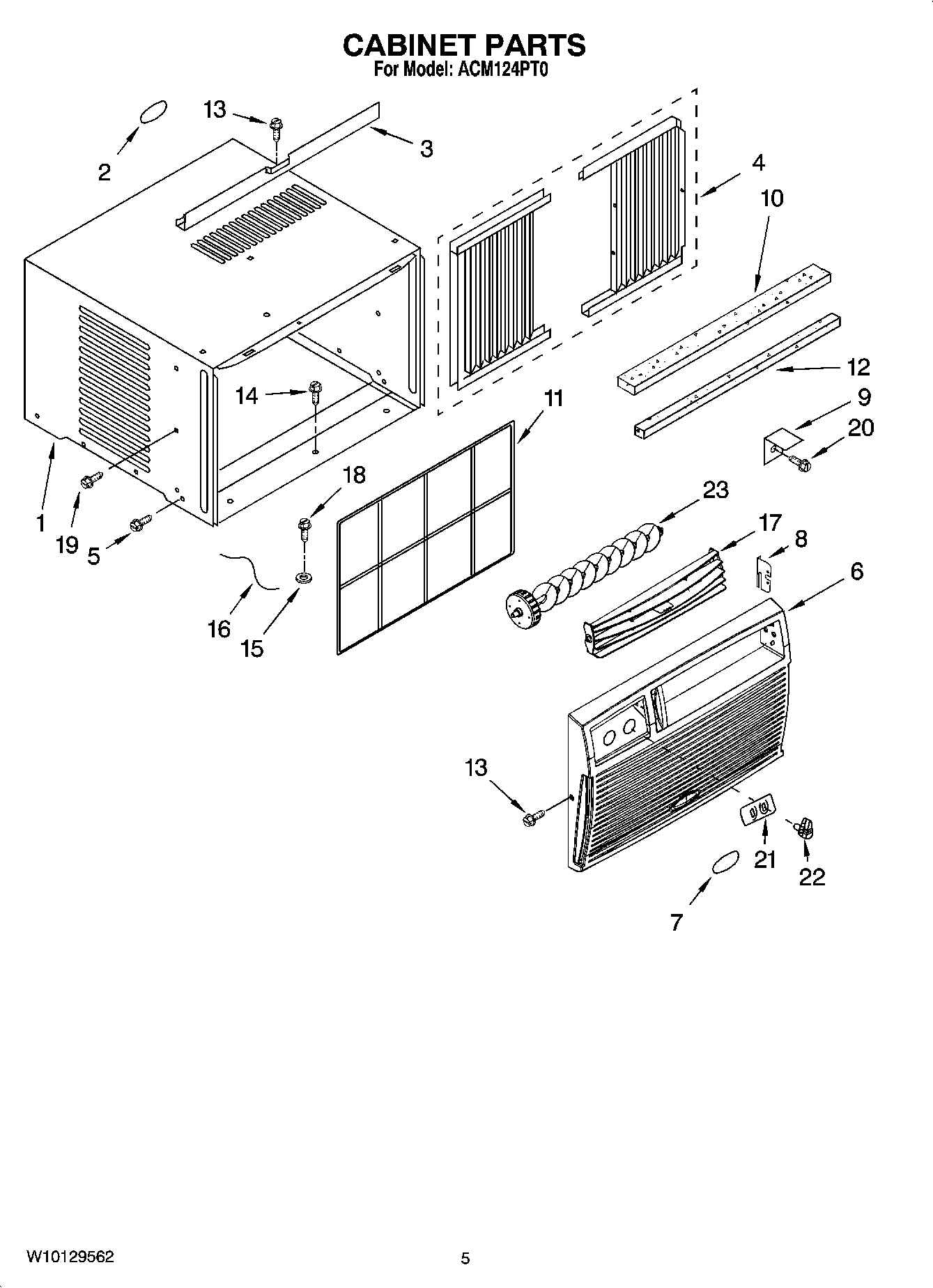

ACM124PT0 03 – CABINET PARTS

Products

Position	Product
1	Cabinet
2	Nameplate, Rear
3	Channel, Top
4	Curtain Assembly Right & Left Side (Includes Item 3)
5	Screw
6	Front Cabinet
7	Nameplate
8	Support, Louver
9	Bracket, Window Lock
10	Seal-Strip, Wide
11	Filter
12	Seal-Strip, Narrow
13	W11245710 Whirlpool Refrigerator Screw
14	SCREW
15	WASHER
16	Ground Wire
17	Louver, Assembly
18	SCREW
19	SCREW
20	SCREW
21	Escutcheon
22	Knob
23	Louver, Vertical
