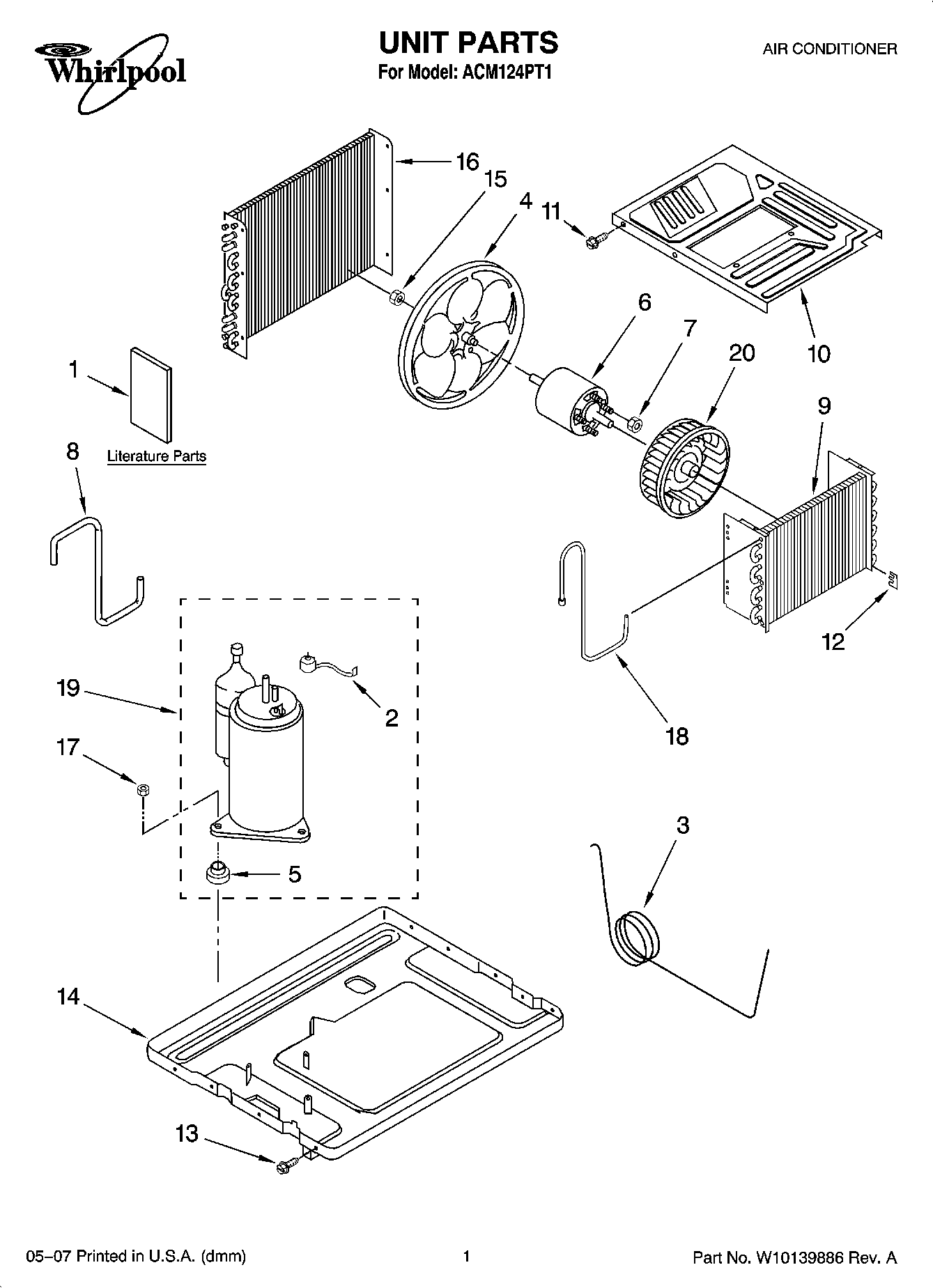

ACM124PT1 01 – UNIT PARTS

Products

Position	Product
1	Wiring Diagram
1	Energy Guide
1	Use & care Guide
2	OVERLOAD
3	Tube, Restrictor
4	Blade, Fan
5	Grommet (3)
6	Motor, Fan
7	Nut, Hex
8	Tube, Discharge
9	Evaporator
10	Cover, Evaporator
11	Screw
12	Support, Tube Sensor
13	W11245710 Whirlpool Refrigerator Screw
14	BASE
15	Nut W/Washer
16	Condenser
17	Nut, W/Washer
18	Tube, Suction
19	Compressor Assembly
20	Wheel, Blower
20	REFRIGERANT CHARGE 21.51 oz.
