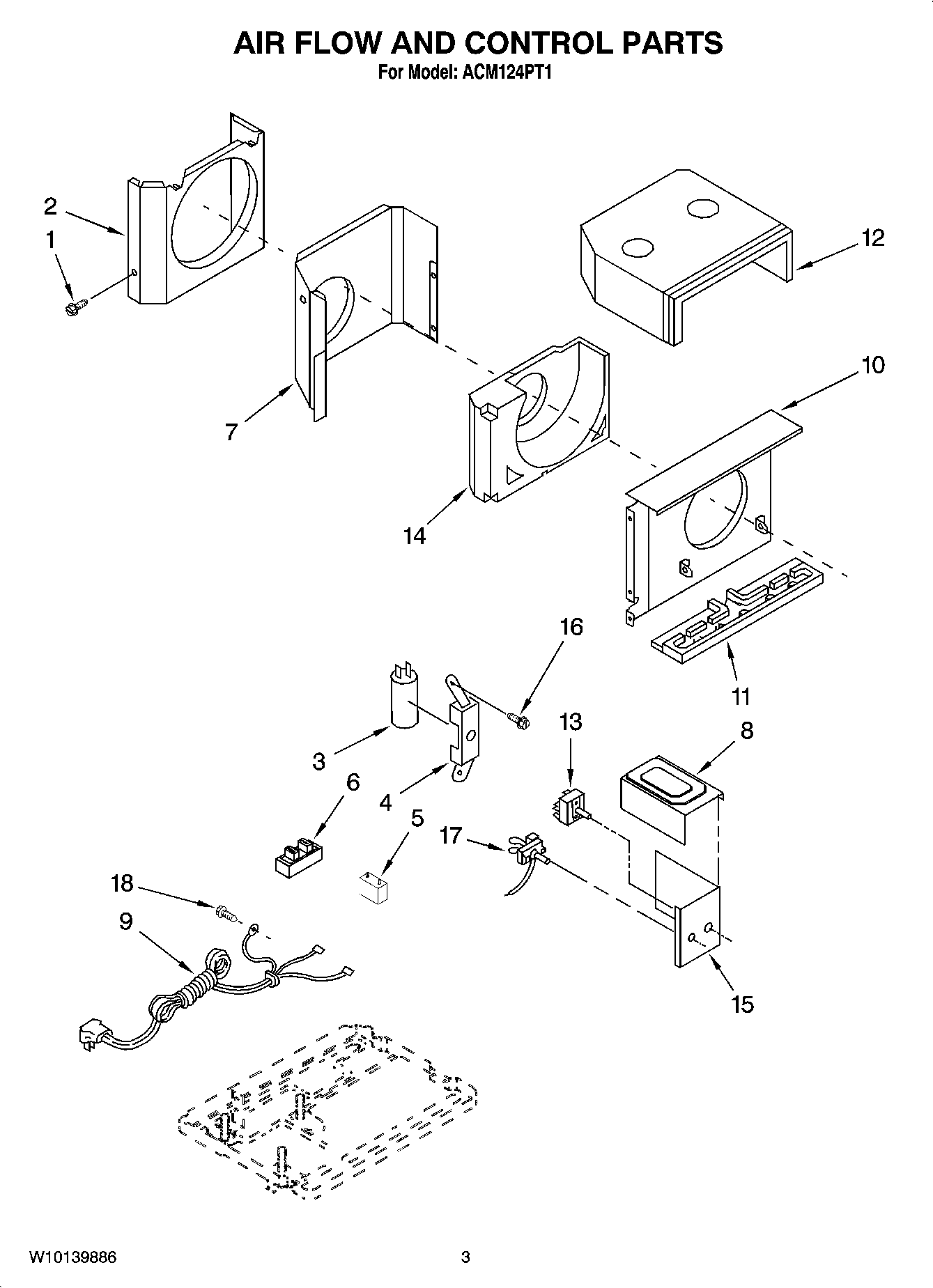

ACM124PT1 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
1	Screw
2	Shroud, Condenser
3	Capacitor, Running
4	Box, Capacitor
5	Capacitor, Motor
6	Terminal Board
7	Wall, Dividing
8	Cover, Control Box
9	Cord, Appliance
10	Shroud, Evaporator
11	Pan, Evaporator
12	Hood, Air Housing
13	Switch, Rotary
14	Housing, Air
15	Box, Control
16	W11245710 Whirlpool Refrigerator Screw
17	Control, Temp.
18	Front, Cabinet Assembly
