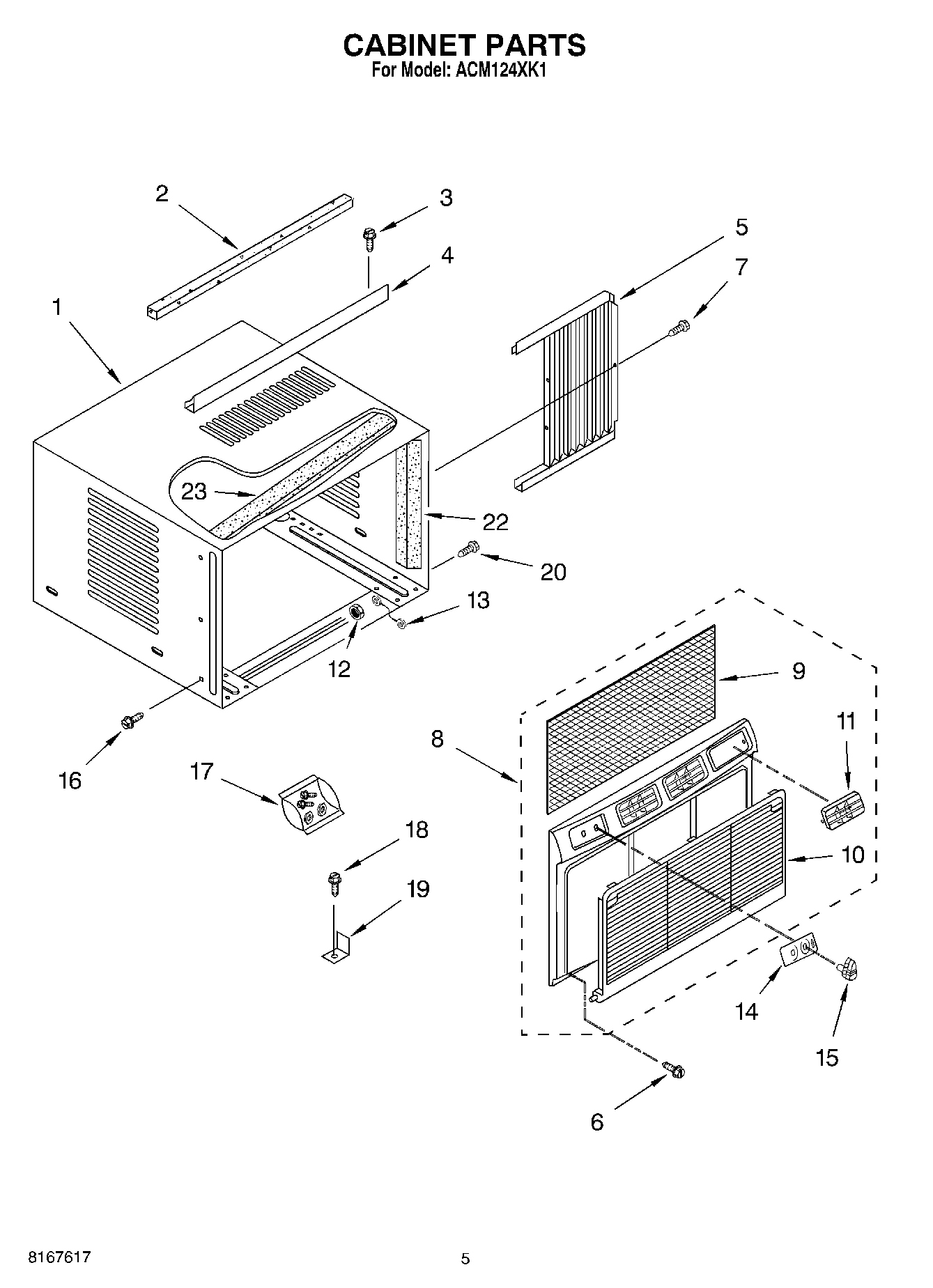

| 1 | Cabinet |
| 2 | Gasket, Meeting Rail |
| 3 | WP3390631 Whirlpool Screw |
| 4 | Channel, Top |
| 5 | Curtain ((Left Side)) |
| 5 | Curtain ((Right Side)) |
| 6 | W10491985 Whirlpool Screw |
| 7 | Screw 8-18 x .295 |
| 8 | Front |
| 9 | Filter |
| 10 | Grille, Front |
| 11 | Louver Assembly |
| 12 | WP486255 Whirlpool Air Conditioner Nut |
| 13 | Wire, Ground |
| 14 | Escutcheon |
| 15 | WP8031121 Whirlpool Air Conditioner Control Knob |
| 16 | Screw, 8-18 x 3/8 |
| 17 | Accessory, Bag |
| 18 | Screw, Wood 8-15 x .750 |
| 19 | Bracket |
| 20 | WP488234 Whirlpool Air Conditioner Screw |
| 22 | Seal, Cabinet Side (2) |
| 23 | Seal, Top Cover |
