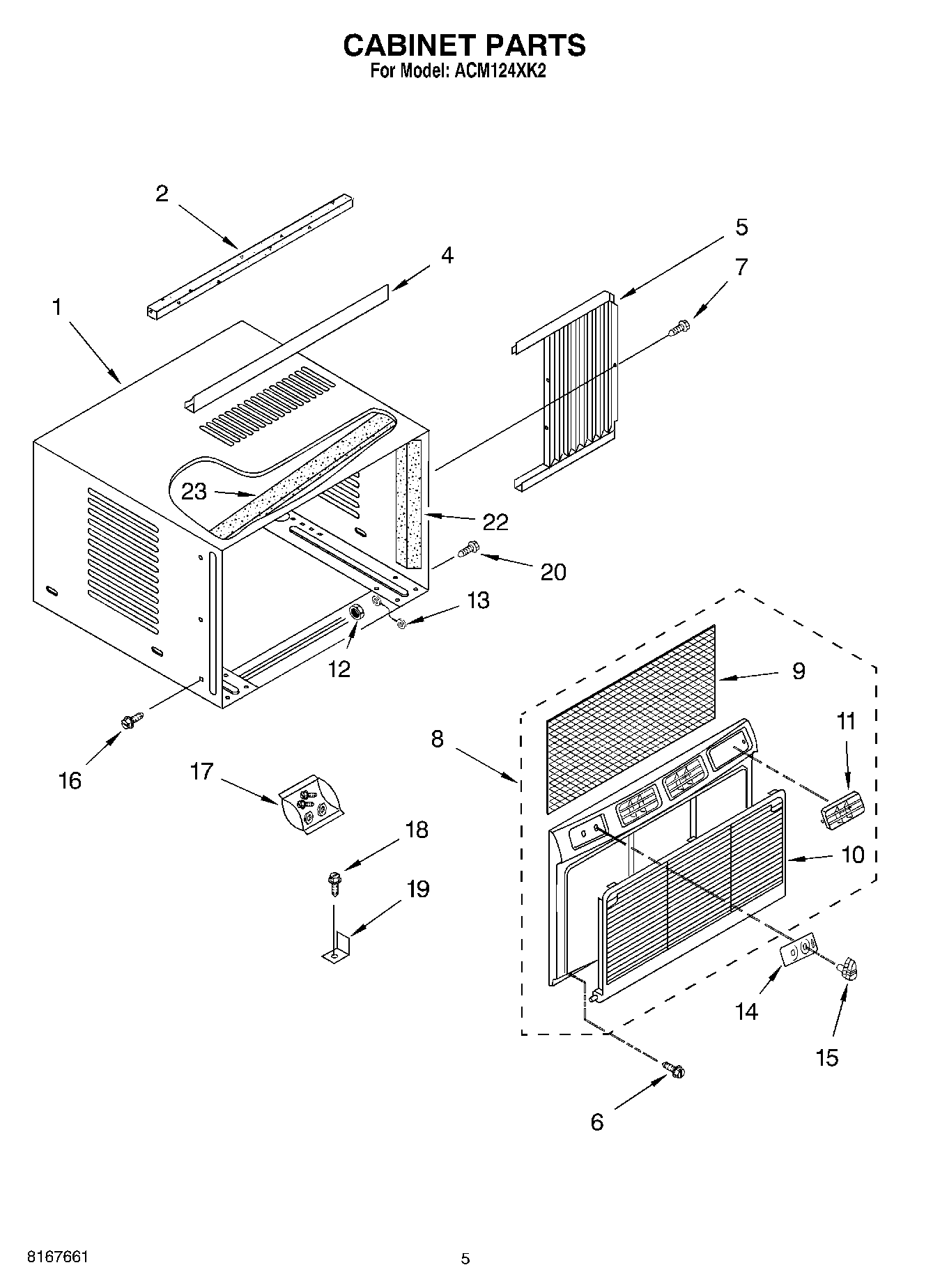

ACM124XK2 03 – CABINET PARTS

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
4	Channel, Top
5	Curtain ((Right Side))
5	Curtain ((Left Side))
6	W10491985 Whirlpool Screw
7	Screw 8-18 x .295
8	Front
9	Filter
10	Grille, Front
11	Louver Assembly
12	WP486255 Whirlpool Air Conditioner Nut
13	Wire, Ground
14	Escutcheon
15	WP8031121 Whirlpool Air Conditioner Control Knob
16	Screw, 8-18 x 3/8
17	Accessory, Bag
18	Screw, Wood 8-15 x .750
19	Bracket
20	WP488234 Whirlpool Air Conditioner Screw
22	Seal, Cabinet Side (2)
23	Seal, Top Cover
