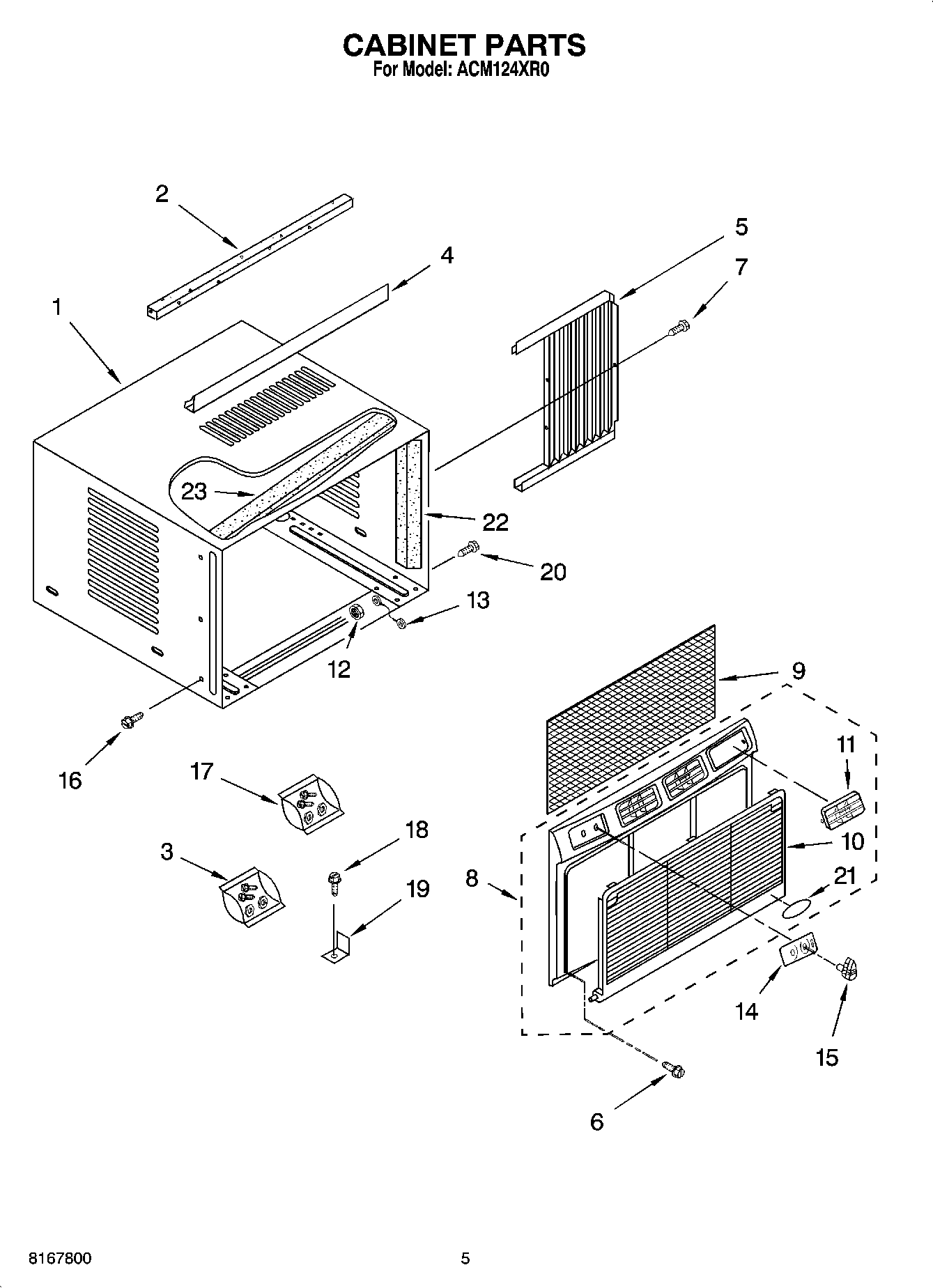

ACM124XR0 03 – CABINET PARTS

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	Bag, Accessory (for Curtains)
4	Channel, Top
5	Curtain ((Left Side))
5	Curtain ((Right Side))
6	W10491985 Whirlpool Screw
7	Screw 8-18 x .295
8	Front
9	Filter
10	Grille, Front
11	Louver Assembly
12	WP486255 Whirlpool Air Conditioner Nut
13	Wire, Ground
14	Escutcheon
15	WP8031121 Whirlpool Air Conditioner Control Knob
16	WP489069 Whirlpool Compactor Screw
17	Accessory, Bag
18	Screw, Wood 8-15 x .750
19	Bracket
20	WP488234 Whirlpool Air Conditioner Screw
21	Nameplate
22	Seal, Cabinet Side (2)
23	Seal, Top Cover
